Embedded Camera Module PMIC
Key Features
• Two 100mA LDOsOutput Voltage Accuracy ±1.5%VINRange From 3.7V to 6VLED Driver with PWM Dimming1 GPO1 GPIOI2C™ Interface4KByte User OTP memoryAvailable in 16-Ball DSBGA with 0.4mm PitchTwo 100mA LDOsOutput Voltage Accuracy ±1.5%VINRange From 3.7V to 6VLED Driver with PWM Dimming1 GPO1 GPIOI2C™ Interface4KByte User OTP memoryAvailable in 16-Ball DSBGA with 0.4mm Pitch
Description
AI
The TPS657095 is a power management unit targeted for embedded camera modules or other portable low power consumer end equipments. It contains two LDOs enabled by the I2C™ Interface, a PWM-dimmable current sink for driving one LED, one general purpose output (GPO), a programmable clock generator and 4K Byte of User OTP memory. The operation of the device is disabled if the input voltage supply is below the internal undervoltage lockout.

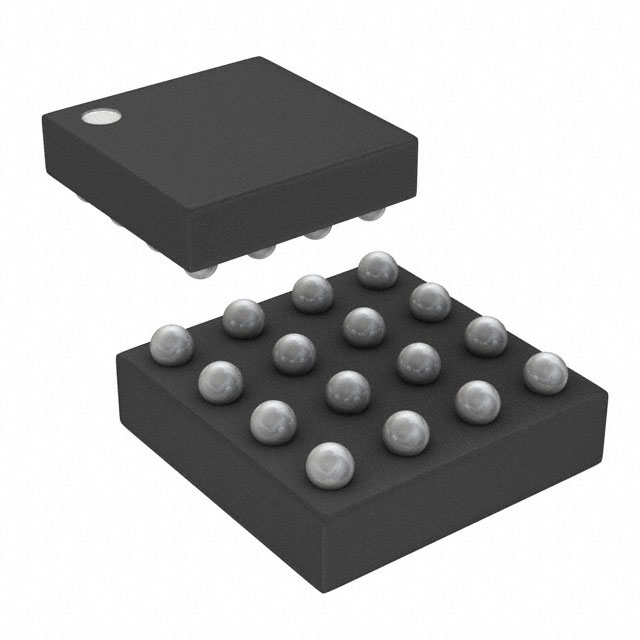

The device comes in a 16-ball die-size ball grid array package (DSBGA) with 0.4mm ball pitch.
The TPS657095 is a power management unit targeted for embedded camera modules or other portable low power consumer end equipments. It contains two LDOs enabled by the I2C™ Interface, a PWM-dimmable current sink for driving one LED, one general purpose output (GPO), a programmable clock generator and 4K Byte of User OTP memory. The operation of the device is disabled if the input voltage supply is below the internal undervoltage lockout.
The device comes in a 16-ball die-size ball grid array package (DSBGA) with 0.4mm ball pitch.
