2342078 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK HDR 18POS VERT 3.81MM

Part	Number of Levels	Number of Positions	Termination Style	Color	Features	Mounting Type	Positions Per Level	Current - UL	Pitch [x]	Pitch [x]	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Contact Material	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Housing Material	Insulation Height	Insulation Height	Header Orientation	Type	Number of Positions

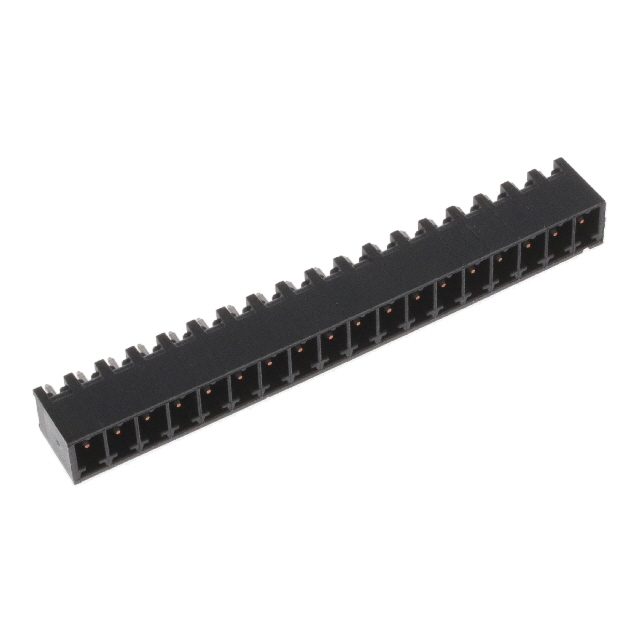

TE Connectivity Raychem Cable Protection 1-2342078-8	1	18	Solder	Black	High Temp Housing	Through Hole	18	11 A	0.15 in	3.81 mm	0.075 in	1.9 mm	UL94 V-0	Copper Alloy	Tin	-40 °C	105 ░C	300 V	Polyamide (PA) Nylon	0.362 in	9.2 mm	Vertical	Header Male Pins Shrouded (4 Side)
TE Connectivity Raychem Cable Protection 2-2342078-0	1	20	Solder	Black	High Temp Housing	Through Hole	20	11 A	0.15 in	3.81 mm	0.075 in	1.9 mm	UL94 V-0	Copper Alloy	Tin	-40 °C	105 ░C	300 V	Polyamide (PA) Nylon	0.362 in	9.2 mm	Vertical	Header Male Pins Shrouded (4 Side)

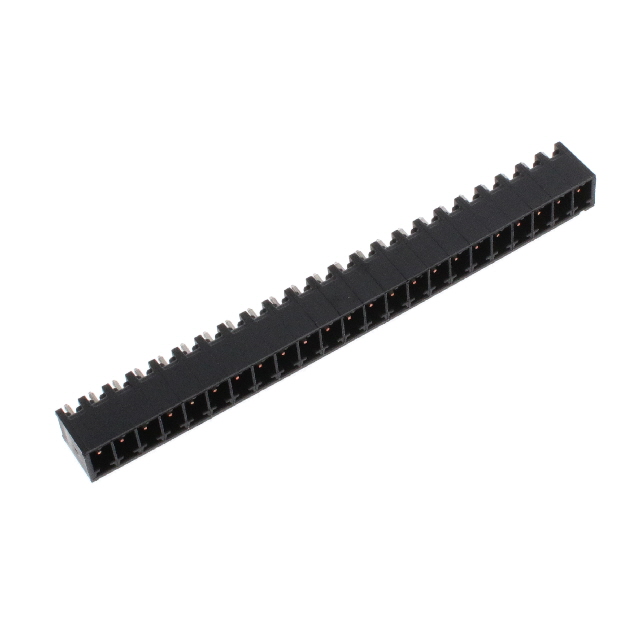

TE Connectivity Raychem Cable Protection 2-2342078-3	1	23	Solder	Black	High Temp Housing	Through Hole	23	11 A	0.15 in	3.81 mm	0.075 in	1.9 mm	UL94 V-0	Copper Alloy	Tin	-40 °C	105 ░C	300 V	Polyamide (PA) Nylon	0.362 in	9.2 mm	Vertical	Header Male Pins Shrouded (4 Side)

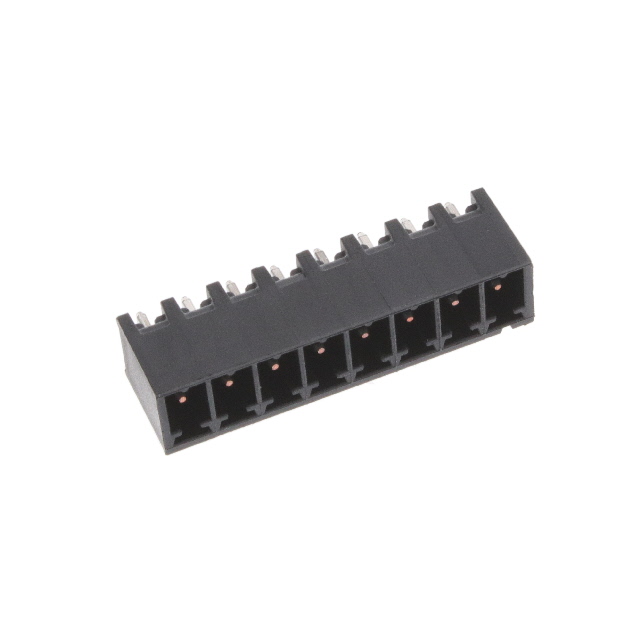

TE Connectivity Raychem Cable Protection 2342078-8	1	8	Solder	Black	High Temp Housing	Through Hole	8	11 A	0.15 in	3.81 mm	0.075 in	1.9 mm	UL94 V-0	Copper Alloy	Tin	-40 °C	105 ░C	300 V	Polyamide (PA) Nylon	0.362 in	9.2 mm	Vertical	Header Male Pins Shrouded (4 Side)

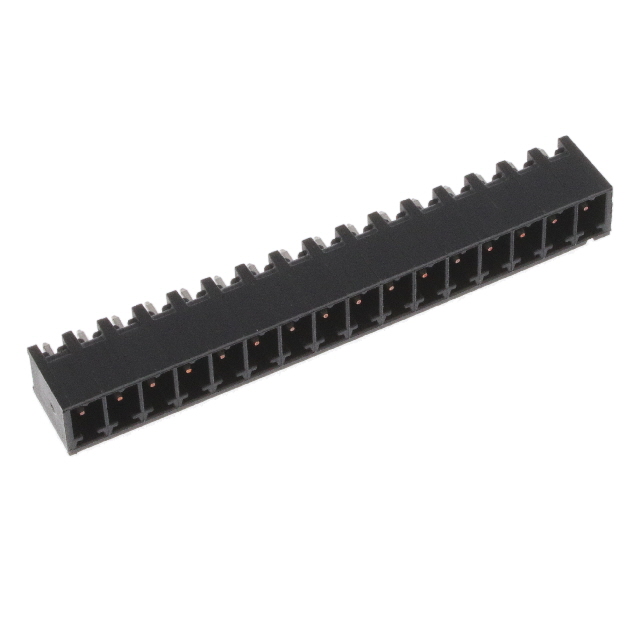

TE Connectivity Raychem Cable Protection 1-2342078-6	1		Solder	Black	High Temp Housing	Through Hole	16	11 A	0.15 in	3.81 mm	0.075 in	1.9 mm	UL94 V-0	Copper Alloy	Tin	-40 °C	105 ░C	300 V	Polyamide (PA) Nylon	0.362 in	9.2 mm	Vertical	Header Male Pins Shrouded (4 Side)	16

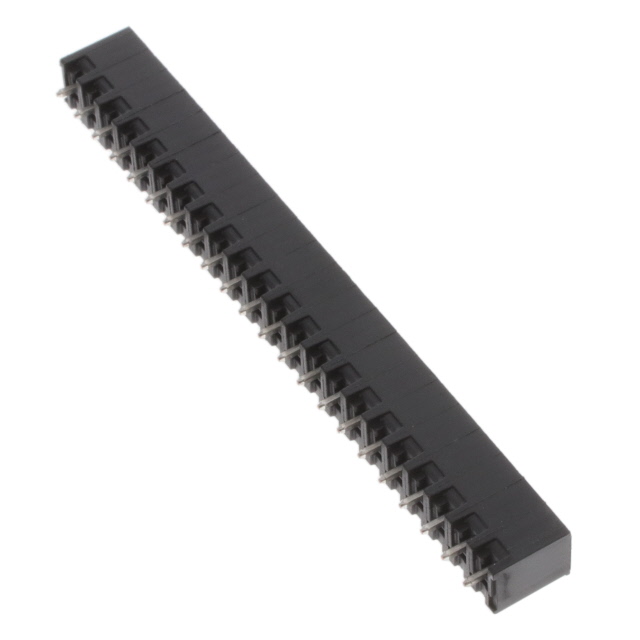

TE Connectivity Raychem Cable Protection 2-2342078-2	1	22 positions	Solder	Black	High Temp Housing	Through Hole	22	11 A	0.15 in	3.81 mm	0.075 in	1.9 mm	UL94 V-0	Copper Alloy	Tin	-40 °C	105 ░C	300 V	Polyamide (PA) Nylon	0.362 in	9.2 mm	Vertical	Header Male Pins Shrouded (4 Side)

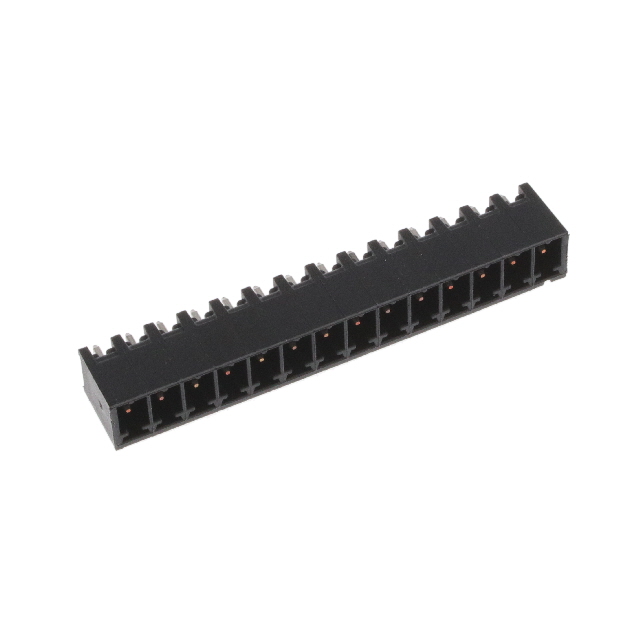

TE Connectivity Raychem Cable Protection 1-2342078-4	1	14	Solder	Black	High Temp Housing	Through Hole	14	11 A	0.15 in	3.81 mm	0.075 in	1.9 mm	UL94 V-0	Copper Alloy	Tin	-40 °C	105 ░C	300 V	Polyamide (PA) Nylon	0.362 in	9.2 mm	Vertical	Header Male Pins Shrouded (4 Side)

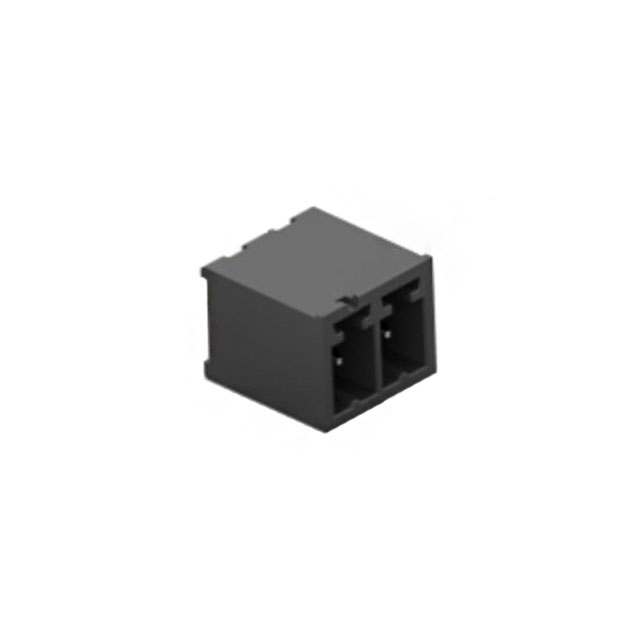

TE Connectivity Raychem Cable Protection 2342078-2	1	2	Solder	Black	High Temp Housing	Through Hole	2	11 A	0.15 in	3.81 mm	0.075 in	1.9 mm	UL94 V-0	Copper Alloy	Tin	-40 °C	105 ░C	300 V	Polyamide (PA) Nylon	0.362 in	9.2 mm	Vertical	Header Male Pins Shrouded (4 Side)

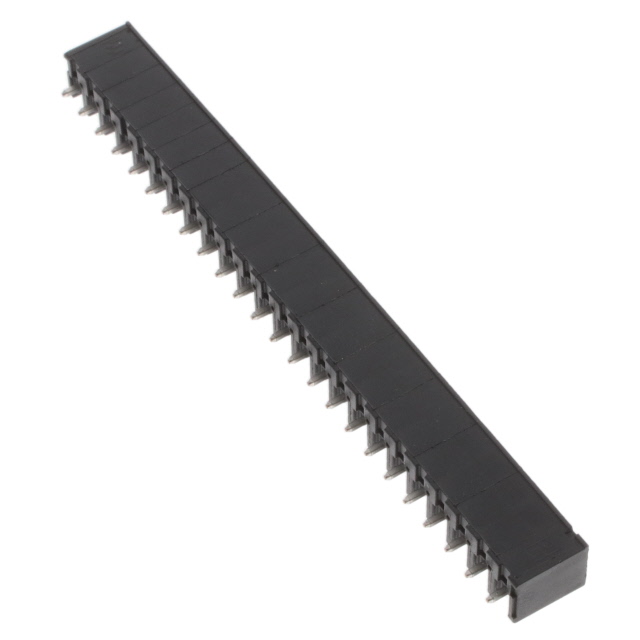

TE Connectivity Raychem Cable Protection 2-2342078-4	1	24	Solder	Black	High Temp Housing	Through Hole		11 A	0.15 in	3.81 mm	0.075 in	1.9 mm	UL94 V-0	Copper Alloy	Tin	-40 °C	105 ░C	300 V	Polyamide (PA) Nylon	0.362 in	9.2 mm	Vertical	Header Male Pins Shrouded (4 Side)

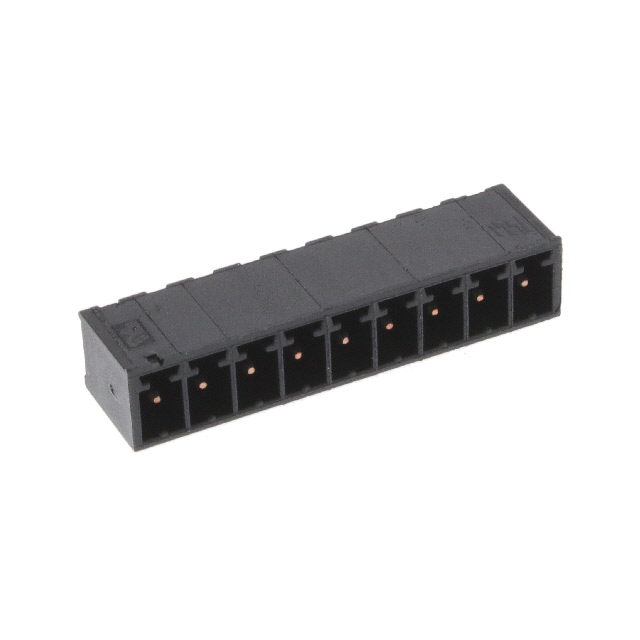

TE Connectivity Raychem Cable Protection 2342078-9	1	9	Solder	Black	High Temp Housing	Through Hole	9	11 A	0.15 in	3.81 mm	0.075 in	1.9 mm	UL94 V-0	Copper Alloy	Tin	-40 °C	105 ░C	300 V	Polyamide (PA) Nylon	0.362 in	9.2 mm	Vertical	Header Male Pins Shrouded (4 Side)
