GW12LJ Series

Catalog

ROCKER SWITCH, ILLUMINATED, SPDT, ON-NONE-ON, TRANSPARENT, THROUGH HOLE, 100 MA

Part	Electrical Life	Mechanical Life	Actuator Type	Voltage Rating - AC	Illumination Voltage (Nominal)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type	Approval Agency	Illumination Type, Color	Actuator Marking	Features	Voltage Rating - DC	Circuit	Termination Style	Color - Actuator/Cap

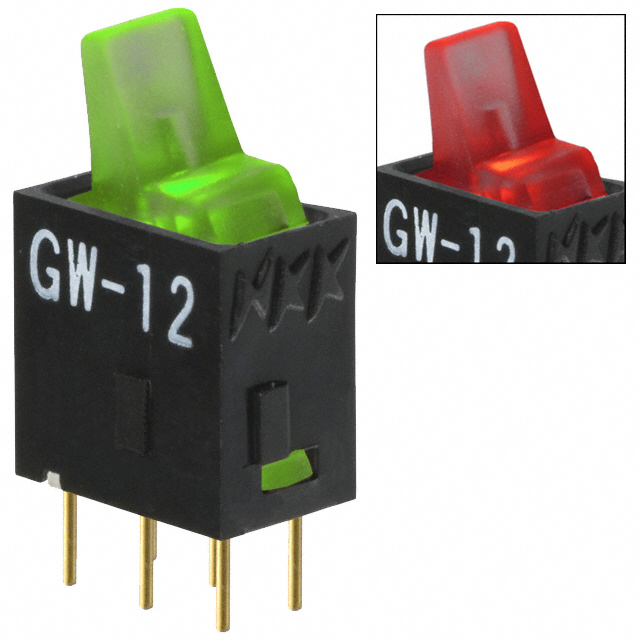

NKK Switches GW12LJPCF	50000 Cycles	50000 Cycles	Paddle - Illuminated	28 V	2 VDC	On-On	55 °C	-25 °C	0.4 VA	Through Hole	CSA UL	Green/Red LED	No Marking	Sealed - Flux Protection	28 V	SPDT	PC Pin	Clear

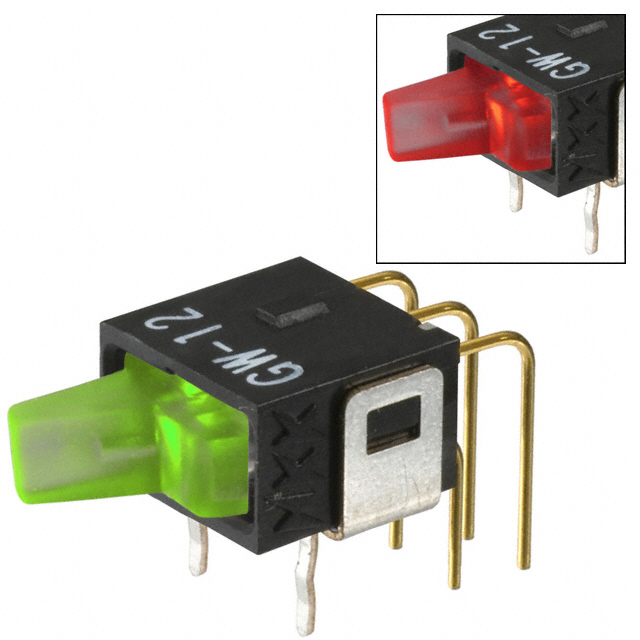

NKK Switches GW12LJHCF	50000 Cycles	50000 Cycles	Paddle - Illuminated	28 V	2 VDC	On-On	55 °C	-25 °C	0.4 VA	Right Angle Through Hole	CSA UL	Green/Red LED	No Marking	Sealed - Flux Protection	28 V	SPDT	PC Pin	Clear

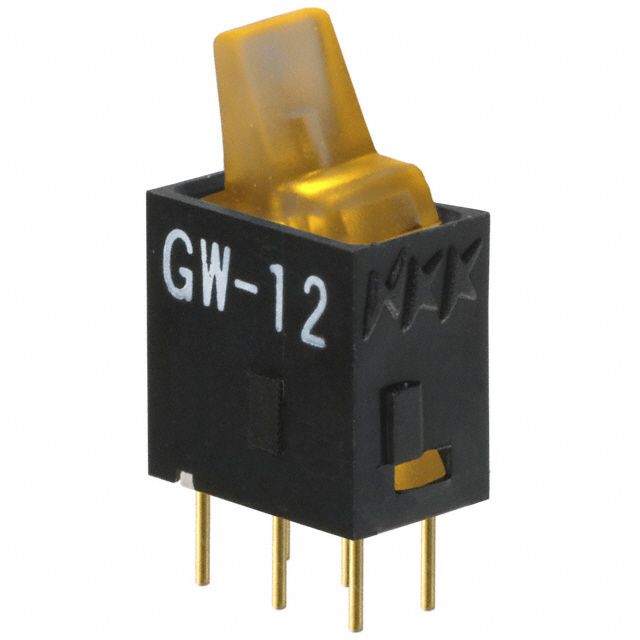

NKK Switches GW12LJPD	50000 Cycles	50000 Cycles	Paddle - Illuminated	28 V	2 VDC	On-On	55 °C	-25 °C	0.4 VA	Through Hole	CSA UL	Amber LED	No Marking	Sealed - Flux Protection	28 V	SPDT	PC Pin	Clear
NKK Switches GW12LJVD	50000 Cycles	50000 Cycles	Paddle - Illuminated	28 V	2 VDC	On-On	55 °C	-25 °C	0.4 VA	Right Angle Through Hole Vertical	CSA UL	Amber LED	No Marking	Sealed - Flux Protection	28 V	SPDT	PC Pin	Clear

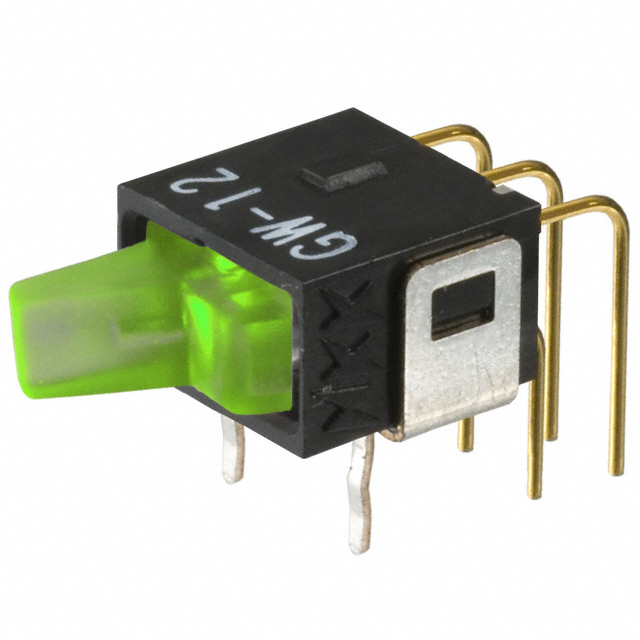

NKK Switches GW12LJHF	50000 Cycles	50000 Cycles	Paddle - Illuminated	28 V	2.1 VDC	On-On	55 °C	-25 °C	0.4 VA	Right Angle Through Hole	CSA UL	Green LED	No Marking	Sealed - Flux Protection	28 V	SPDT	PC Pin	Clear

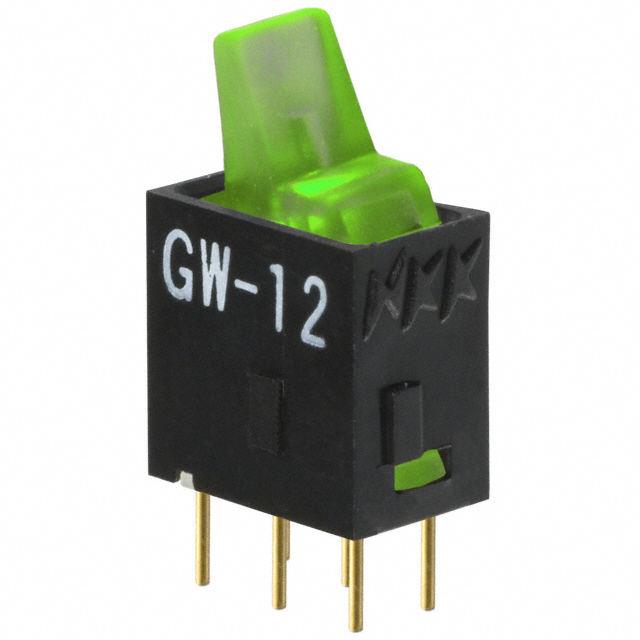

NKK Switches GW12LJPF	50000 Cycles	50000 Cycles	Paddle - Illuminated	28 V	2.1 VDC	On-On	55 °C	-25 °C	0.4 VA	Through Hole	CSA UL	Green LED	No Marking	Sealed - Flux Protection	28 V	SPDT	PC Pin	Clear

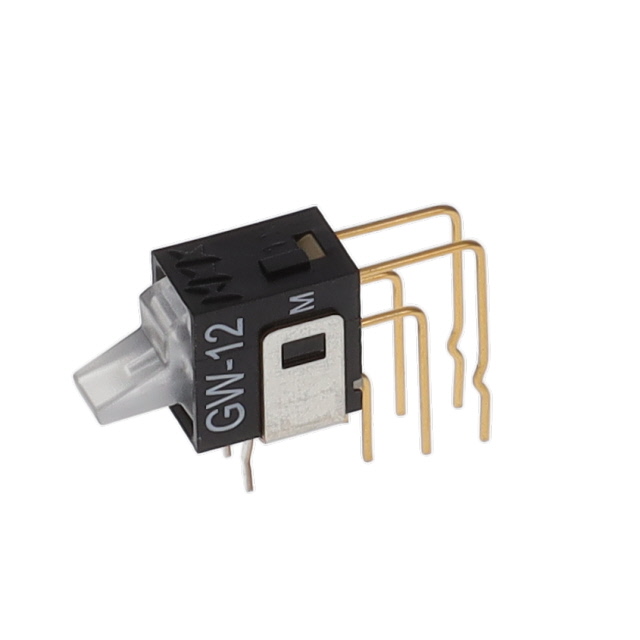

NKK Switches GW12LJVF	50000 Cycles	50000 Cycles	Paddle - Illuminated	28 V	2.1 VDC	On-On	55 °C	-25 °C	0.4 VA	Right Angle Through Hole Vertical	CSA UL	Green LED	No Marking	Sealed - Flux Protection	28 V	SPDT	PC Pin	Clear

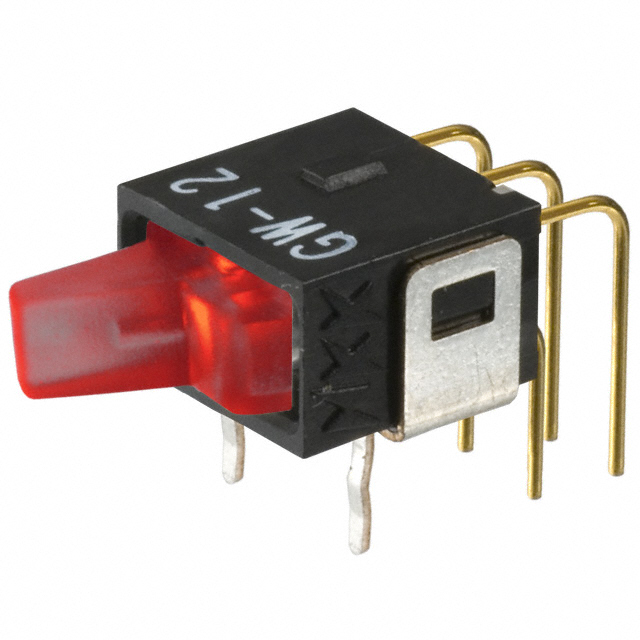

NKK Switches GW12LJHC	50000 Cycles	50000 Cycles	Paddle - Illuminated	28 V	2 VDC	On-On	55 °C	-25 °C	0.4 VA	Right Angle Through Hole	CSA UL	LED Red	No Marking	Sealed - Flux Protection	28 V	SPDT	PC Pin	Clear

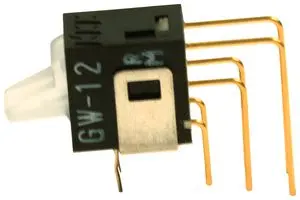

NKK Switches GW12LJVCF	50000 Cycles	50000 Cycles	Paddle - Illuminated	28 V	2 VDC	On-On	55 °C	-25 °C	0.4 VA	Right Angle Through Hole Vertical	CSA UL	Green/Red LED	No Marking	Sealed - Flux Protection	28 V	SPDT	PC Pin	Clear
NKK Switches GW12LJVC	50000 Cycles	50000 Cycles	Paddle - Illuminated	28 V	2 VDC	On-On	55 °C	-25 °C	0.4 VA	Right Angle Through Hole Vertical	CSA UL	LED Red	No Marking	Sealed - Flux Protection	28 V	SPDT	PC Pin	Clear
