XDMYK20 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7-SEG 0.8" SGL YLW 18DIP
| Part | Display Type | Color | Wavelength - Peak | Package / Case | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Forward (Vf) (Typ) | Current - Test | Common Pin | Number of Characters | Power Dissipation (Max) [Max] | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

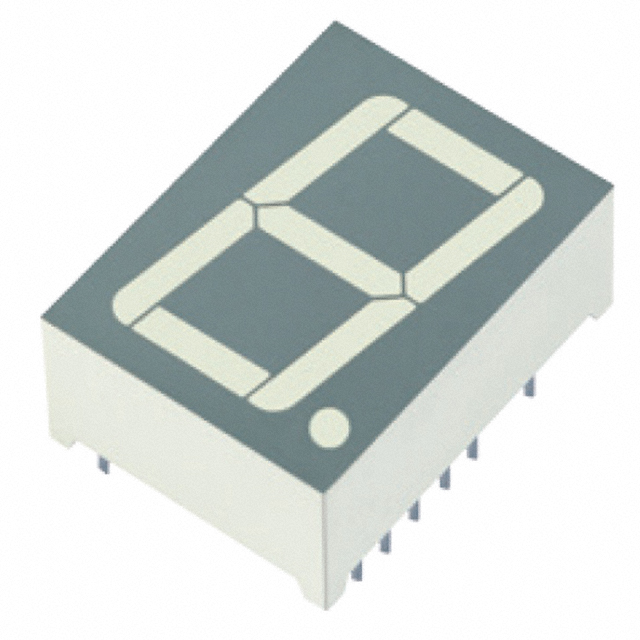

 SunLED | 7-Segment | Yellow | 590 nm | 0.6 in 15.24 mm | 13 Leads 18-DIP | 0.732 in 18.6 mm | 0.984 in 25 mm | 0.417 in 10.6 mm | 1.95 V | 10 mA | Common Cathode | 1 | 75 mw | 42 mcd | 0.8 in | 20.32 mm | |

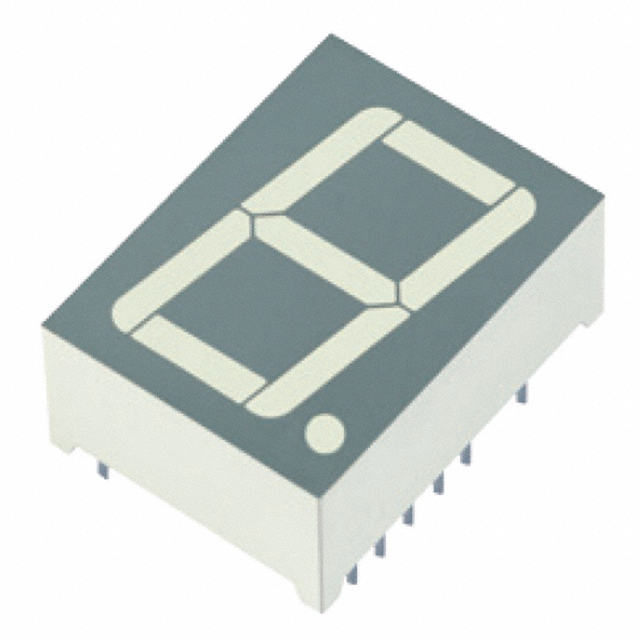

 SunLED | 7-Segment | Yellow | 590 nm | 0.6 in 13 Leads | 16-DIP | 0.732 in 18.6 mm | 0.984 in 25 mm | 0.417 in 10.6 mm | 1.95 V | 10 mA | Common Anode | 1 | 75 mw | 42 mcd | 0.8 in | 20.32 mm | 15.24 mm |
