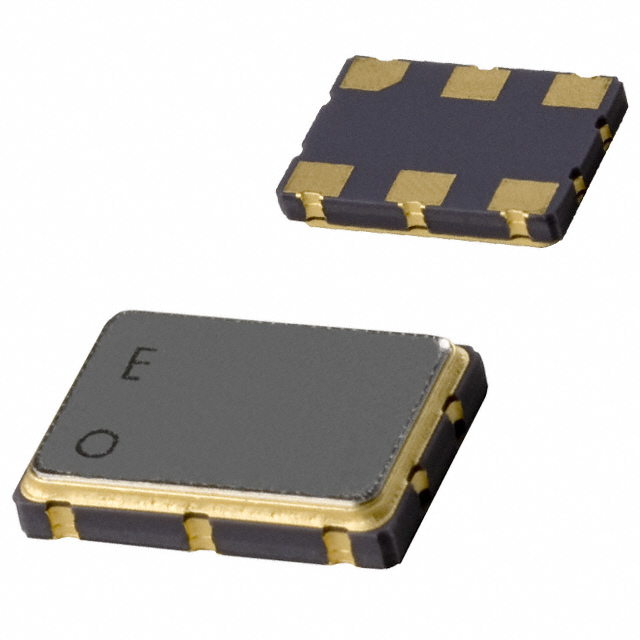

EG-2121CA Series
Manufacturer: EPSON
Beta
⌘K
XTAL OSC SO 250.0000MHZ LVPECL
| Part | Current - Supply (Disable) (Max) [Max] | Base Resonator [custom] | Current - Supply (Max) [Max] | Frequency Stability | Supplier Device Package | Output | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Frequency | Function | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Voltage - Supply | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
20 mA | Crystal | 80 mA | 100 ppm | 6-SMD (7x5) | LVPECL | 5 mm | 7 mm | 0.197 " | 0.276 " | 250 MHz | Enable/Disable | 0.055 in | 1.4 mm | 2.5 V | SO (SAW) | Surface Mount | 70 °C | 0 °C | 6-SMD No Lead | |
20 mA | Crystal | 30 mA | 100 ppm | 6-SMD (7x5) | LVDS | 5 mm | 7 mm | 0.197 " | 0.276 " | 250 MHz | Enable/Disable | 0.055 in | 1.4 mm | 2.5 V | SO (SAW) | Surface Mount | 70 °C | 0 °C | 6-SMD No Lead | |
20 mA | Crystal | 30 mA | 50 ppm | 6-SMD (7x5) | LVDS | 5 mm | 7 mm | 0.197 " | 0.276 " | 125 MHz | Enable/Disable | 0.055 in | 1.4 mm | 2.5 V | SO (SAW) | Surface Mount | 70 °C | 0 °C | 6-SMD No Lead | |
20 mA | Crystal | 30 mA | 50 ppm | 6-SMD (7x5) | LVDS | 5 mm | 7 mm | 0.197 " | 0.276 " | 212.5 MHz | Enable/Disable | 0.055 in | 1.4 mm | 2.5 V | SO (SAW) | Surface Mount | 70 °C | 0 °C | 6-SMD No Lead | |
Crystal | 30 mA | 100 ppm | 6-SMD (7x5) | LVDS | 5 mm | 7 mm | 0.197 " | 0.276 " | 81.25 MHz | Enable/Disable | 0.055 in | 1.4 mm | 2.5 V | SO (SAW) | Surface Mount | 70 °C | 0 °C | 6-SMD No Lead | ||
20 mA | Crystal | 80 mA | 100 ppm | 6-SMD (7x5) | LVPECL | 5 mm | 7 mm | 0.197 " | 0.276 " | 125 MHz | Enable/Disable | 0.055 in | 1.4 mm | 2.5 V | SO (SAW) | Surface Mount | 70 °C | 0 °C | 6-SMD No Lead | |
20 mA | Crystal | 80 mA | 100 ppm | 6-SMD (7x5) | LVPECL | 5 mm | 7 mm | 0.197 " | 0.276 " | 156.25 MHz | Enable/Disable | 0.055 in | 1.4 mm | 2.5 V | SO (SAW) | Surface Mount | 70 °C | 0 °C | 6-SMD No Lead | |
Crystal | 80 mA | 50 ppm | 6-SMD (7x5) | LVPECL | 5 mm | 7 mm | 0.197 " | 0.276 " | 212.5 MHz | Enable/Disable | 0.055 in | 1.4 mm | 2.5 V | SO (SAW) | Surface Mount | 70 °C | 0 °C | 6-SMD No Lead | ||
20 mA | Crystal | 30 mA | 50 ppm | 6-SMD (7x5) | LVDS | 5 mm | 7 mm | 0.197 " | 0.276 " | 155.52 MHz | Enable/Disable | 0.055 in | 1.4 mm | 2.5 V | SO (SAW) | Surface Mount | 70 °C | 0 °C | 6-SMD No Lead | |
20 mA | Crystal | 80 mA | 100 ppm | 6-SMD (7x5) | LVPECL | 5 mm | 7 mm | 0.197 " | 0.276 " | 150 MHz | Enable/Disable | 0.055 in | 1.4 mm | 2.5 V | SO (SAW) | Surface Mount | 70 °C | 0 °C | 6-SMD No Lead |
