PSA05 Series

Catalog

DISPLAY 16SEG 0.5" SGL RED 18DIP

Part	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Common Pin	Current - Test	Number of Characters	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Color	Power Dissipation (Max) [Max]	Display Type	Package / Case	Package / Case [x]	Package / Case [x]	Millicandela Rating
Kingbright PSA05-11EWA	12.7 mm	0.5 in	627 nm	Common Anode	20 mA	1	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	2 V	Red	75 mw	16-Segment Alphanumeric	18-DIP	0.5 in	12.7 mm
Kingbright PSA05-11GWA	12.7 mm	0.5 in	565 nm	Common Anode	20 mA	1	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	2.2 V	Green	62.5 mW	16-Segment Alphanumeric	18-DIP	0.5 in	12.7 mm	10 mcd
Kingbright PSA05-12GWA	12.7 mm	0.5 in	565 nm	Common Anode	20 mA	1	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	2.2 V	Green	62.5 mW	16-Segment Alphanumeric	18-DIP	0.5 in	12.7 mm	10 mcd
Kingbright PSA05-11SRWA	12.7 mm	0.5 in	660 nm	Common Anode	20 mA	1	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	1.85 V	Red	75 mw	16-Segment Alphanumeric	18-DIP	0.5 in	12.7 mm	37 mcd

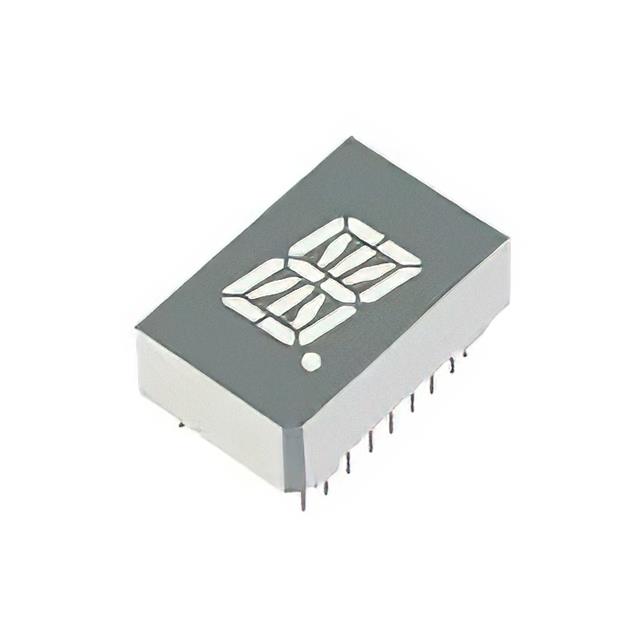

Kingbright PSA05-11SURKWA	12.7 mm	0.5 in	645 nm	Common Anode	10 mA	1	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	1.85 V	Red	75 mw	16-Segment Alphanumeric	18-DIP	0.5 in	12.7 mm	110 mcd
Kingbright PSA05-12SRWA	12.7 mm	0.5 in	660 nm	Common Anode	20 mA	1	9.5 mm	16 mm	0.63 "	0.374 in	0.984 "	25 mm	1.85 V	Red	75 mw	16-Segment Alphanumeric	18-DIP	0.5 in	12.7 mm	37 mcd
