S3B-XH-A Series

Catalog

CONN HEADER R/A 3POS 2.5MM

Part	Voltage Rating	Fastening Type	Material Flammability Rating	Contact Finish - Post	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Material	Current Rating (Amps)	Insulation Material	Contact Shape	Insulation Color	Style	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Type	Number of Positions Loaded	Shrouding	Number of Rows	Insulation Height [z]	Insulation Height [z]

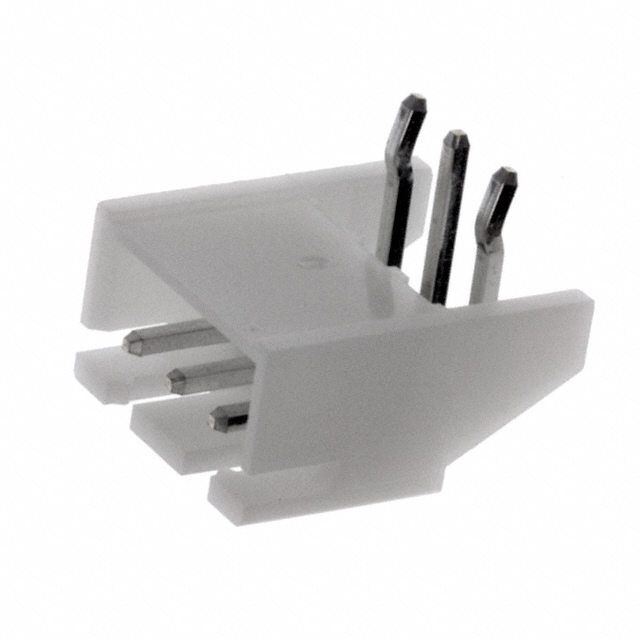

JST Sales America Inc. S3B-XH-A	250 V	Detent Lock	UL94 V-0	Tin	Header	Right Angle Through Hole	2.5 mm	0.098 in	Brass	3 A	Nylon 6/6 Polyamide (PA66)	Square	Natural	Board to Cable/Wire	0.134 "	3.4 mm	85 °C	-25 °C	Press-Fit Solder	Male Pin	All	Shrouded - 4 Wall	1	6.1 mm	0.24 in
JST Sales America Inc. S3B-XH-A-E	250 VAC	Detent Lock	UL94 V-0	Tin	Header	Right Angle Through Hole	2.5 mm	0.098 in	Brass	3 A	Nylon 6/6 Polyamide (PA66)	Square	Natural	Board to Cable/Wire	0.134 "	3.4 mm	85 °C	-25 °C	Press-Fit Solder	Male Pin	All	Shrouded - 4 Wall	1	6.1 mm	0.24 in

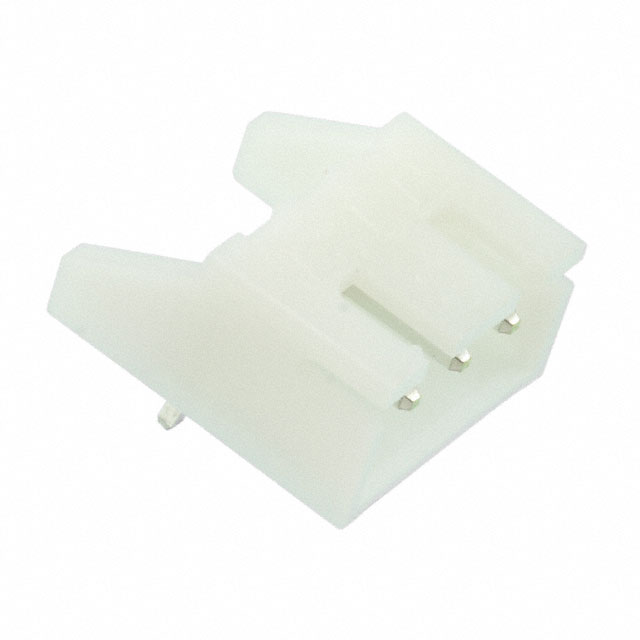

JST Sales America Inc. S3B-XH-A-1	250 V	Detent Lock	UL94 V-0	Tin	Header	Right Angle Through Hole	2.5 mm	0.098 in	Brass	3 A	Nylon 6/6 Polyamide (PA66)	Square	Natural	Board to Cable/Wire	0.134 "	3.4 mm	85 °C	-25 °C	Press-Fit Solder	Male Pin	All	Shrouded - 4 Wall	1	6.1 mm	0.24 in
