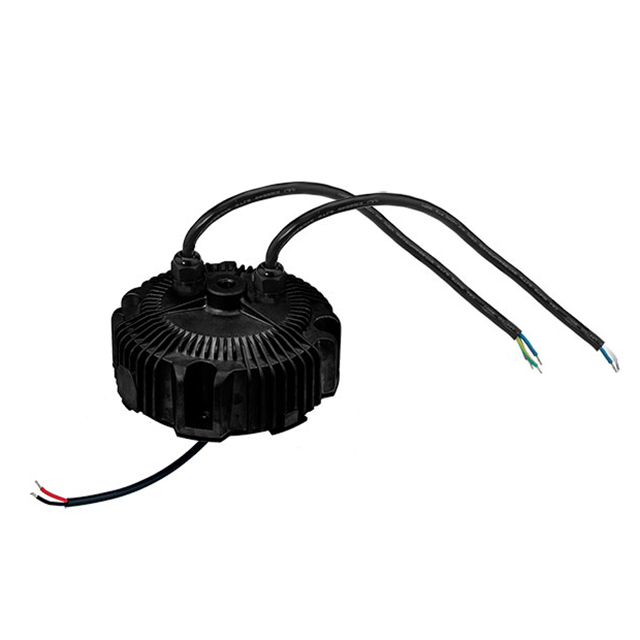

HBG-160 Series

Catalog

LED DVR CC/CV ACDC 21.6-36V 4.4A

Part	Mounting Type	Termination Style	Features	Power (Watts)	Efficiency	Type	Number of Outputs	Voltage - Isolation	Current - Output (Max) [Max]	Dimming	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output [Min]	Voltage - Output [Max]	Approval Agency	Topology	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Standard Number

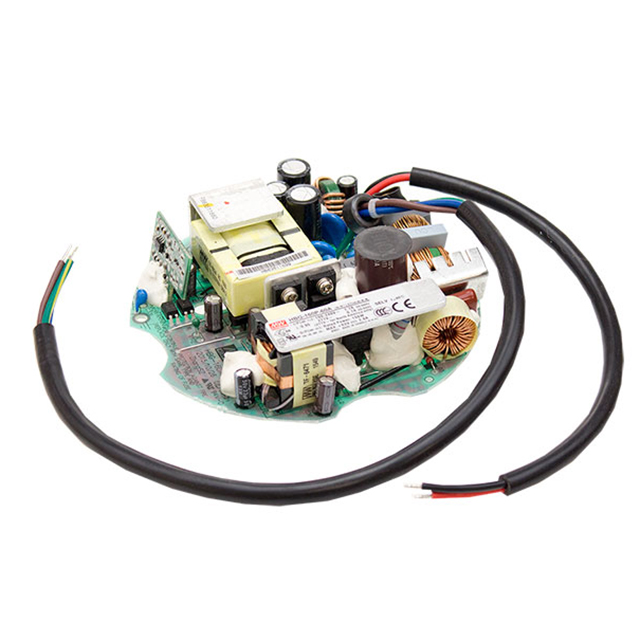

MEAN WELL USA Inc. HBG-160P-36B	Chassis Mount	Wire Leads	OTP OVP SCP	158 W	92 %	Constant Current Voltage	1	3750 VDC	4.4 A	Analog PWM	305 VAC	90 VAC	21.6 V	36 V	CB CCC CE cURus ENEC	AC DC Converter	34 mm	124.6 mm	1.34 "	4.91 "
MEAN WELL USA Inc. HBG-160P-60A	Chassis Mount	Wire Leads	OTP OVP SCP	156 W	93.5 %	Constant Current Voltage	1	3750 VDC	2.6 A		305 VAC	90 VAC	36 V	60 V	CB CCC CE cURus ENEC	AC DC Converter	34 mm	124.6 mm	1.34 "	4.91 "
MEAN WELL USA Inc. HBG-160-60A	Chassis Mount	Wire Leads	OCP OTP OVP SCP	156 W	93.5 %	Constant Current Voltage	1	3750 VDC	2.6 A		305 VAC	90 VAC	36 V	60 V	CB CCC CE cURus TUV	AC DC Converter	66.5 mm	151.7 mm	2.62 "	5.97 in	IP65	85 °C	-40 C
MEAN WELL USA Inc. HBG-160-36	Chassis Mount	Wire Leads	OCP OTP OVP SCP	158 W	92 %	Constant Current Voltage	1	3750 VDC	4.4 A		305 VAC	90 VAC	21.6 V	36 V	CB CCC CE cURus TUV	AC DC Converter	66.5 mm	151.7 mm	2.62 "	5.97 in	IP67	85 °C	-40 C
MEAN WELL USA Inc. HBG-160-48AB	Chassis Mount	Wire Leads	OCP OTP OVP SCP	156 W	93 %	Constant Current Voltage	1	3750 VDC	3.3 A		305 VAC	90 VAC			CB CCC CE cURus TUV	AC DC Converter	66.5 mm	151.7 mm	2.62 "	5.97 in	IP65	85 °C	-40 C	48 V
MEAN WELL USA Inc. HBG-160-24A	Chassis Mount	Wire Leads	OCP OTP OVP SCP	156 W	92 %	Constant Current Voltage	1	3750 VDC	6.5 A		305 VAC	90 VAC	14.4 V	24 V	CB CCC CE cURus TUV	AC DC Converter	66.5 mm	151.7 mm	2.62 "	5.97 in	IP65	85 °C	-40 C
MEAN WELL USA Inc. HBG-160-24DA	Chassis Mount	Wire Leads	OCP OTP OVP SCP	156 W	92 %	Constant Current Voltage	1	3750 VDC	2.6 A	Analog PWM	305 VAC	90 VAC			CB CCC CE cURus TUV	AC DC Converter	66.5 mm	151.7 mm	2.62 "	5.97 in	IP65	85 °C	-40 C	24 V	UL 8750

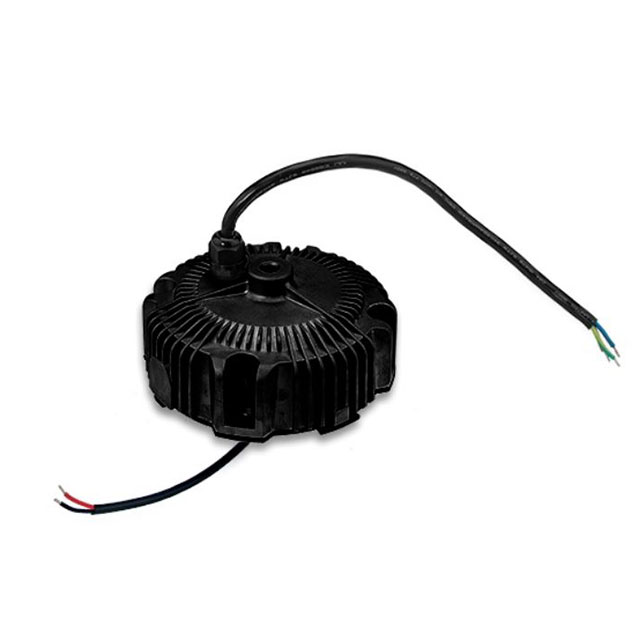

MEAN WELL USA Inc. HBG-160-60DA	Chassis Mount	Wire Leads	OCP OTP OVP	156 W	93.5 %	Constant Current Voltage	1	3750 VDC	2.6 A	Analog PWM	305 VAC	90 VAC			CB CCC CE cURus EAC ENEC TUV	AC DC Converter	66.5 mm	151.7 mm	2.62 "	5.97 in	IP67	85 °C	-40 C	60 V	UL 8750
MEAN WELL USA Inc. HBG-160-24	Chassis Mount	Wire Leads	OCP OTP OVP SCP	156 W	92 %	Constant Current Voltage	1	3750 VDC	6.5 A		305 VAC	90 VAC	14.4 V	24 V	CB CCC CE cURus TUV	AC DC Converter	66.5 mm	151.7 mm	2.62 "	5.97 in	IP67	85 °C	-40 C
MEAN WELL USA Inc. HBG-160-36A	Chassis Mount	Wire Leads	OCP OTP OVP SCP	158 W	92 %	Constant Current Voltage	1	3750 VDC	4.4 A		305 VAC	90 VAC	21.6 V	36 V	CB CCC CE cURus TUV	AC DC Converter	66.5 mm	151.7 mm	2.62 "	5.97 in	IP65	85 °C	-40 C
