737-010 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 10POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Termination	Read Out	Contact Material	Pitch	Pitch	Color	Number of Positions/Bay/Row	Number of Positions	Contact Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Termination Rows	Number of Rows

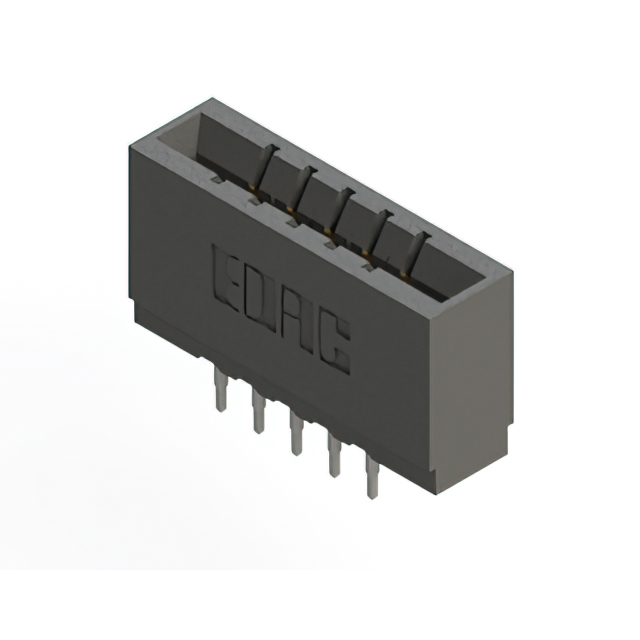

EDAC Inc. 737-010-525-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Press-Fit	Dual	Copper Alloy	3.96 mm	0.156 in	Black	5	10	Cantilever	Female	-40 C	105 ░C	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-010-525-106		Polyester Thermoplastic	Non Specified - Single Edge	30 Áin	0.76 Ám		Press-Fit	Single	Copper Alloy	3.96 mm	0.156 in	Black	10	10	Cantilever	Female	-40 C	105 ░C	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1
EDAC Inc. 737-010-560-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Press-Fit	Dual	Copper Alloy	3.96 mm	0.156 in	Black	5	10	Cantilever Make Before Break	Female	-40 C	105 ░C	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm

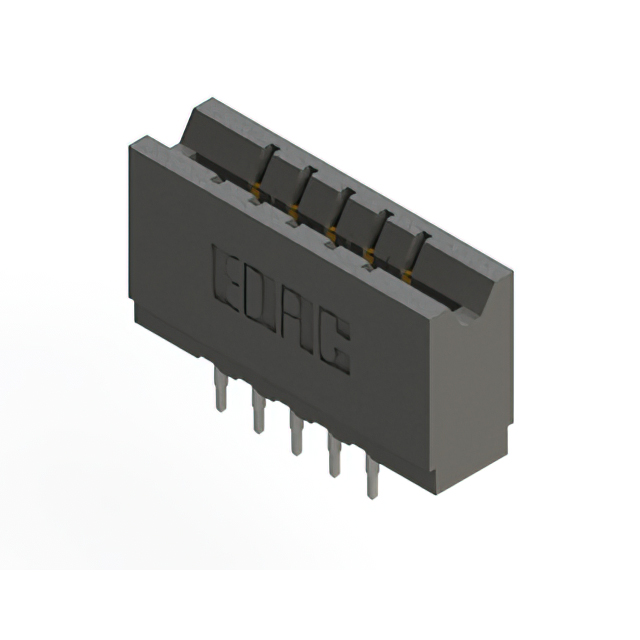

EDAC Inc. 737-010-560-206	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Press-Fit	Dual	Copper Alloy	3.96 mm	0.156 in	Black	5	10	Cantilever Make Before Break	Female	-40 C	105 ░C	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-010-545-101		Polyester Thermoplastic	Non Specified - Single Edge	30 Áin	0.76 Ám		Press-Fit Wire Wrap	Single	Copper Alloy	3.96 mm	0.156 in	Black	10	10	Cantilever	Female	-40 C	105 ░C	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1
EDAC Inc. 737-010-520-206	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Press-Fit	Dual	Copper Alloy	3.96 mm	0.156 in	Black	5	10	Cantilever	Female	-40 C	105 ░C	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-010-522-206	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Press-Fit	Dual	Copper Alloy	3.96 mm	0.156 in	Black	5	10	Cantilever	Female	-40 C	105 ░C	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-010-520-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Press-Fit	Dual	Copper Alloy	3.96 mm	0.156 in	Black	5	10	Cantilever	Female	-40 C	105 ░C	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm

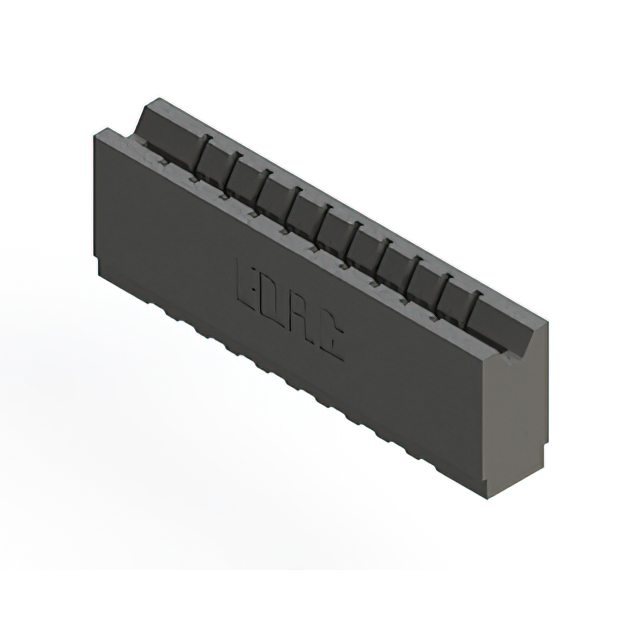

EDAC Inc. 737-010-520-106		Polyester Thermoplastic	Non Specified - Single Edge	30 Áin	0.76 Ám		Press-Fit	Single	Copper Alloy	3.96 mm	0.156 in	Black	10	10	Cantilever	Female	-40 C	105 ░C	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

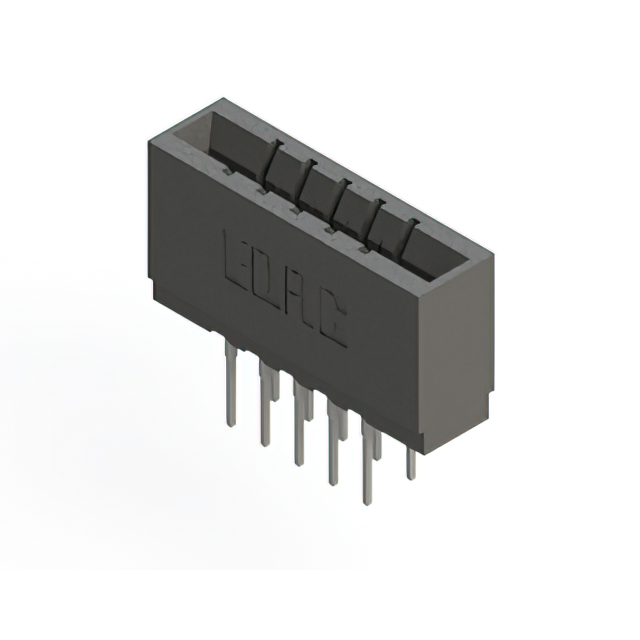

EDAC Inc. 737-010-522-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Press-Fit	Dual	Copper Alloy	3.96 mm	0.156 in	Black	5	10	Cantilever	Female	-40 C	105 ░C	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm
