316-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K

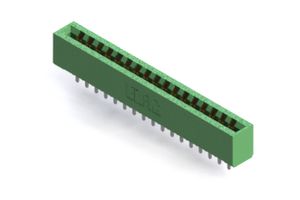

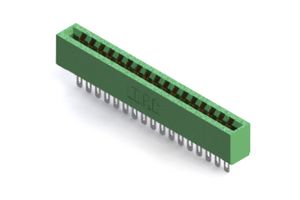

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 17 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Pitch | Pitch | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions/Bay/Row [custom] | Color | Number of Rows [custom] | Card Type | Mounting Type | Contact Finish | Read Out | Gender | Number of Positions [custom] | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Solder | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Cantilever | 17 | Green | 2 | Non Specified - Dual Edge | Through Hole | Gold | Dual | Female | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Solder | Copper Alloy | -40 C | 105 ░C | Cantilever | 17 | Green | 2 | Non Specified - Dual Edge | Panel Mount Through Hole | Tin | Dual | Female | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | |||
EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Solder | Copper Alloy | -40 C | 105 ░C | Cantilever | 17 | Green | 2 | Non Specified - Dual Edge | Panel Mount Through Hole | Tin | Dual | Female | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Cantilever | 17 | Green | 2 | Non Specified - Dual Edge | Panel Mount | Gold | Dual | Female | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Cantilever | 17 | Green | 2 | Non Specified - Dual Edge | Free Hanging (In-Line) | Gold | Dual | Female | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||
EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Solder | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Cantilever | 17 | Green | 2 | Non Specified - Dual Edge | Through Hole | Gold | Dual | Female | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Solder | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Cantilever | 17 | Green | 2 | Non Specified - Dual Edge | Panel Mount Through Hole | Gold | Dual | Female | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | |
EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Solder | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Cantilever | 17 | Green | 2 | Non Specified - Dual Edge | Panel Mount Through Hole | Gold | Dual | Female | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Cantilever | 17 | Green | 2 | Non Specified - Dual Edge | Panel Mount | Gold | Dual | Female | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | |
EDAC Inc. | Polyester Thermoplastic | 1 | 3.96 mm | 0.156 in | Solder | Copper Alloy | -40 C | 105 ░C | Cantilever | 17 | Green | 2 | Non Specified - Dual Edge | Panel Mount Through Hole | Tin | Dual | Female | 34 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm |
