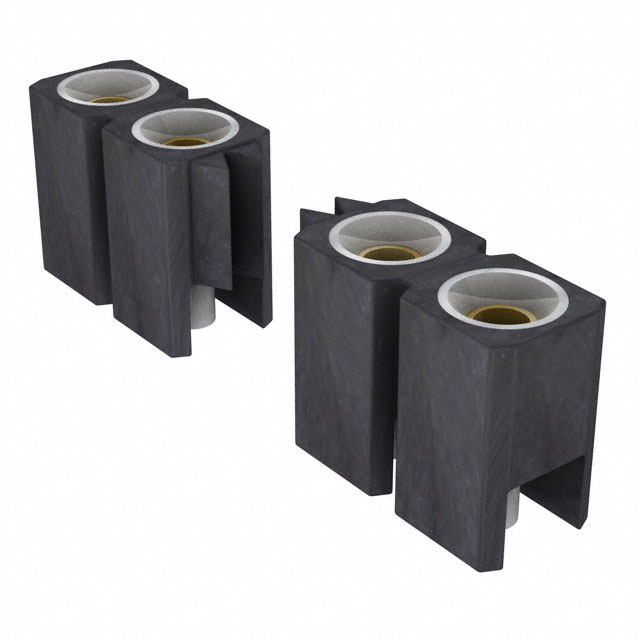

314-83 Series
Manufacturer: Preci-Dip
Beta
⌘K

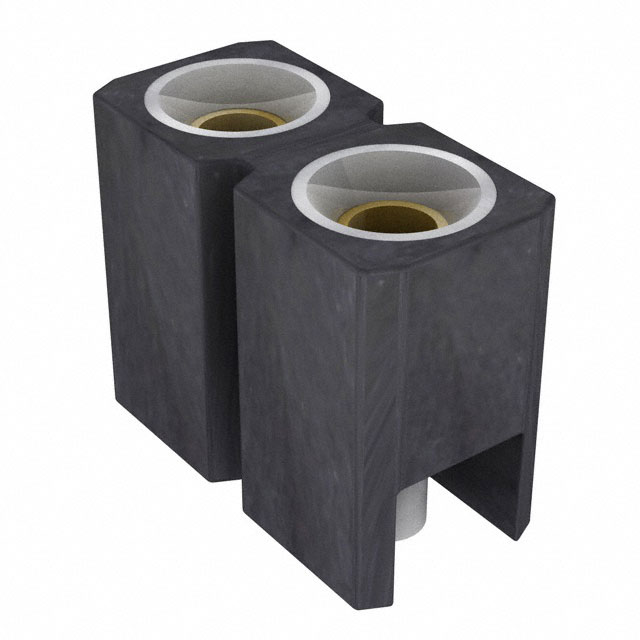

CONN SOCKET 7POS 0.1 GOLD SMD
| Part | Contact Shape | Insulation Material | Contact Material | Number of Rows | Termination | Number of Positions | Material Flammability Rating | Connector Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Mounting Type | Number of Positions Loaded | Current Rating (Amps) | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Fastening Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | Solder | 7 | UL94 V-0 | Socket | Female Socket | -55 C | 125 °C | Black | Surface Mount | All | 3 A | 29.5 µin | 0.75 µm | 0.165 in | 4.2 mm | 0.1 " | 2.54 mm | Gold | Push-Pull | Tin |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | Solder | 9 | UL94 V-0 | Socket | Female Socket | -55 C | 125 °C | Black | Surface Mount | All | 3 A | 29.5 µin | 0.75 µm | 0.165 in | 4.2 mm | 0.1 " | 2.54 mm | Gold | Push-Pull | Tin |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | Solder | 10 | UL94 V-0 | Socket | Female Socket | -55 C | 125 °C | Black | Surface Mount | All | 3 A | 29.5 µin | 0.75 µm | 0.165 in | 4.2 mm | 0.1 " | 2.54 mm | Gold | Push-Pull | Tin |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | Solder | 9 | UL94 V-0 | Socket | Female Socket | -55 C | 125 °C | Black | Surface Mount | All | 3 A | 29.5 µin | 0.75 µm | 0.165 in | 4.2 mm | 0.1 " | 2.54 mm | Gold | Push-Pull | Tin |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | Solder | 11 | UL94 V-0 | Socket | Female Socket | -55 C | 125 °C | Black | Surface Mount | All | 3 A | 29.5 µin | 0.75 µm | 0.165 in | 4.2 mm | 0.1 " | 2.54 mm | Gold | Push-Pull | Tin |
Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | Solder | 6 | UL94 V-0 | Socket | Female Socket | -55 C | 125 °C | Black | Surface Mount | All | 3 A | 29.5 µin | 0.75 µm | 0.165 in | 4.2 mm | 0.1 " | 2.54 mm | Gold | Push-Pull | Tin |
 Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | Solder | 2 | UL94 V-0 | Socket | Female Socket | -55 C | 125 °C | Black | Surface Mount | All | 3 A | 29.5 µin | 0.75 µm | 0.165 in | 4.2 mm | 0.1 " | 2.54 mm | Gold | Push-Pull | Tin |
 Preci-Dip | Circular | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | 1 | Solder | 4 | UL94 V-0 | Socket | Female Socket | -55 C | 125 °C | Black | Surface Mount | All | 3 A | 29.5 µin | 0.75 µm | 0.165 in | 4.2 mm | 0.1 " | 2.54 mm | Gold | Push-Pull | Tin |
