MHBBWT Series
Manufacturer: New Energy
Beta
⌘K

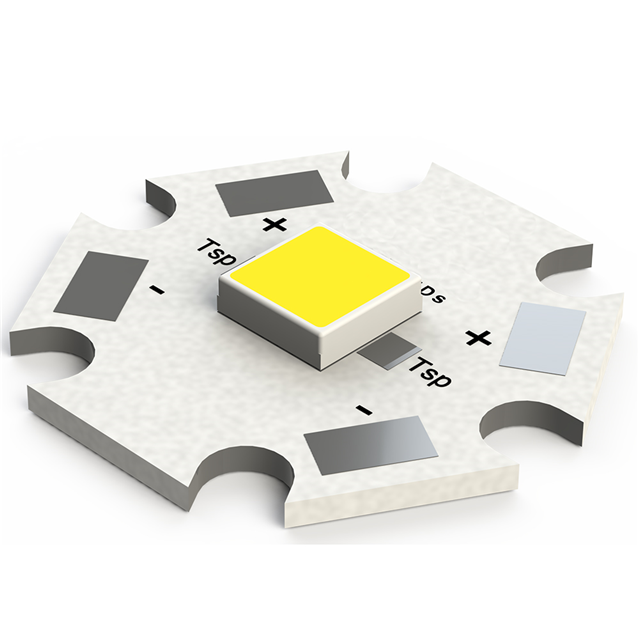

WHITE LEDS WHITE 4000 K, 70 CRI STARBOARD MHB-B
| Part | Current - Test | Temperature - Test | Lumens/Watt @ Current - Test | Viewing Angle | Configuration | Size / Dimension [diameter] | Voltage - Forward (Vf) (Typ) | CRI (Color Rendering Index) | CCT (K) | Current - Max [Max] | Type | Color | Lens Type | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature [Max] | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 New Energy | 480 mA | 85 °C | 146 lm/W | 115 ° | Starboard | 19.89 mm | 8.75 V | 70 | 4000 K | 700 mA | LED Module | Neutral White | Flat | 590 lm | 613 lm | 635 lm | |
New Energy | 480 mA | 85 °C | 117 lm/W | 115 ° | Starboard | 19.89 mm | 8.75 V | 80 | 2700 K | 700 mA | LED Module | Warm White | Flat | 475 lm | 493 lm | 510 lm | 3-Step MacAdam Ellipse |
New Energy | 480 mA | 85 °C | 146 lm/W | 115 ° | Starboard | 19.89 mm | 8.75 V | 70 | 6500 K | 700 mA | LED Module | Cool White | Flat | 590 lm | 613 lm | 635 lm |
