RI-80SM Series

Catalog

SWITCH REED SPST-NO 250MA 140V

Part	Power - Rated	Circuit	Termination Style	Mounting Type	Current - Carry	Operate Range [Max]	Operate Range [Min]	Voltage - Switching AC [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Release Time	Capacitance	Current - Switching	Operate Time	Length - Overall [x]	Length - Overall [x]	Voltage - Switching DC	Release Range [Min]	Release Range [Max]	Size - Body [diameter]	Size - Body [x]	Size - Body [diameter]	Size - Body [x]	Height Above Board [z]	Height Above Board [z]

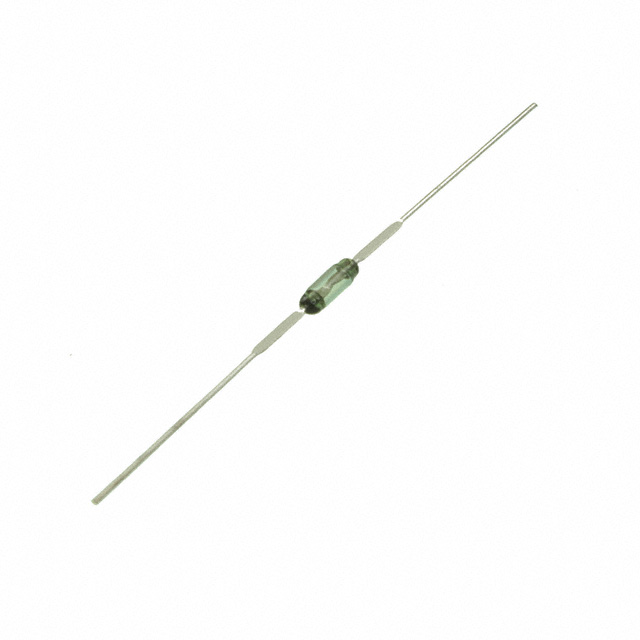

Comus International RI-80SMD-1015-FL	5 W	SPST-NO	Axial Flat	Surface Mount	500 mA	15	10	140 V	-55 C	125 °C	Glass Body Reed	0.02 ms	0.45 pF	250 mA 350 mA	0.35 ms	1.811 in	46 mm	175 V	4	13 AT
Comus International RI-80SMD-1015-J	5 W	SPST-NO	J Lead	Surface Mount	500 mA	15	10	140 V	-55 C	125 °C	Glass Body Reed	0.02 ms	0.45 pF	250 mA 350 mA	0.35 ms	0.279 "	7.09 mm	175 V	4	13 AT	1.78 mm	4.98 mm	0.07 "	0.196 "	1.9 mm	0.075 in
