002255 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 22POS 2.54MM

Part	Note	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Color	Contact Type	Connector Type	Pitch	Pitch	Number of Rows [custom]	Insulation Material	Number of Positions	Row Spacing	Row Spacing	Features

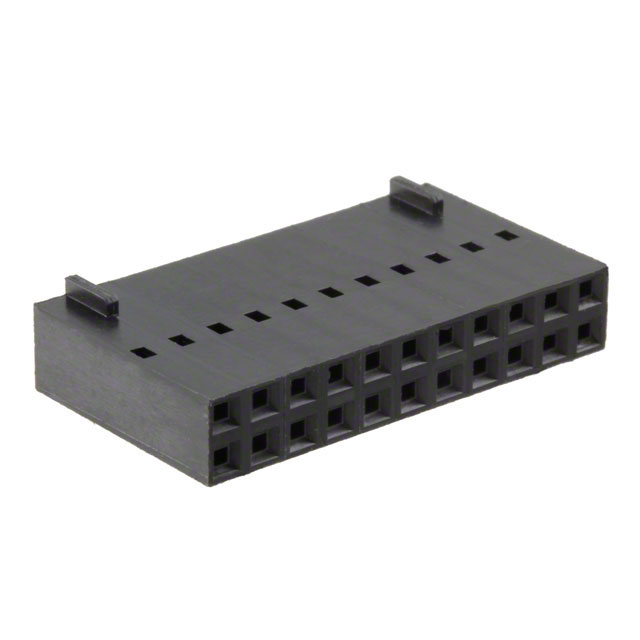

Molex 0022552223	Contacts Not Included	-40 C	105 ░C	Free Hanging (In-Line)	Crimp	Black	Female Socket	Receptacle	0.1 "	2.54 mm	2	Polyester Glass Filled	22	2.54 mm	0.1 "
Molex 0022552043	Contacts Not Included	-40 C	105 ░C	Free Hanging (In-Line)	Crimp	Black	Female Socket	Receptacle	0.1 "	2.54 mm	2	Polyester Glass Filled	4	2.54 mm	0.1 "

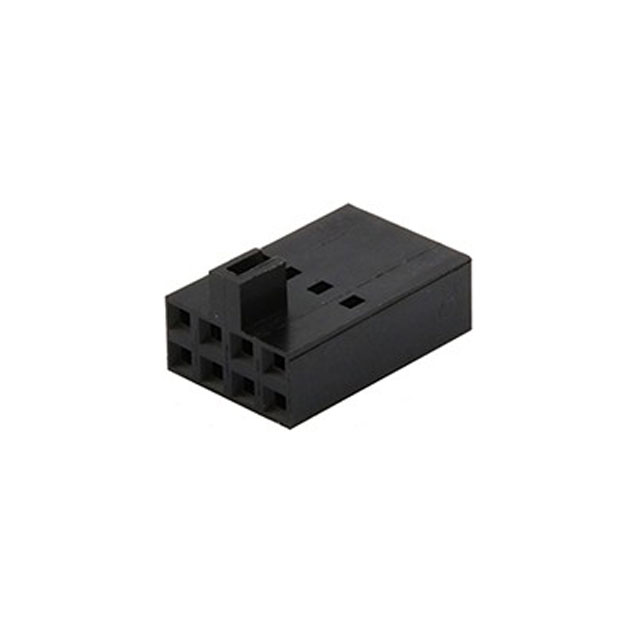

Molex 0022552322	Contacts Not Included	-40 C	105 ░C	Free Hanging (In-Line)	Crimp	Black	Female Socket	Receptacle	0.1 "	2.54 mm	2	Polyester Glass Filled		2.54 mm	0.1 "	Polarizing Key
Molex 0022552402	Contacts Not Included	-40 C	105 ░C	Free Hanging (In-Line)	Crimp	Black	Female Socket	Receptacle	0.1 "	2.54 mm	2	Polyester Glass Filled	40	2.54 mm	0.1 "	Polarizing Key

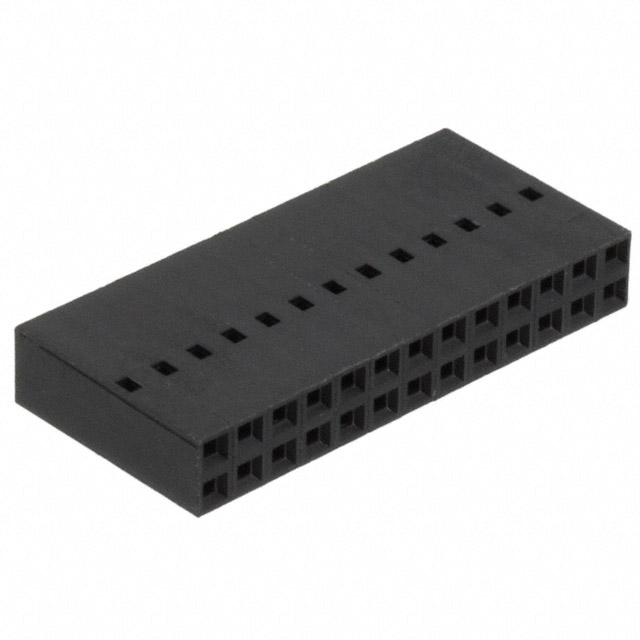

Molex 0022552261	Contacts Not Included	-40 C	105 ░C	Free Hanging (In-Line)	Crimp	Black	Female Socket	Receptacle	0.1 "	2.54 mm	2	Polyester Glass Filled	26	2.54 mm	0.1 "
Molex 0022552301	Contacts Not Included	-40 C	105 ░C	Free Hanging (In-Line)	Crimp	Black	Female Socket	Receptacle	0.1 "	2.54 mm	2	Polyester Glass Filled	30	2.54 mm	0.1 "

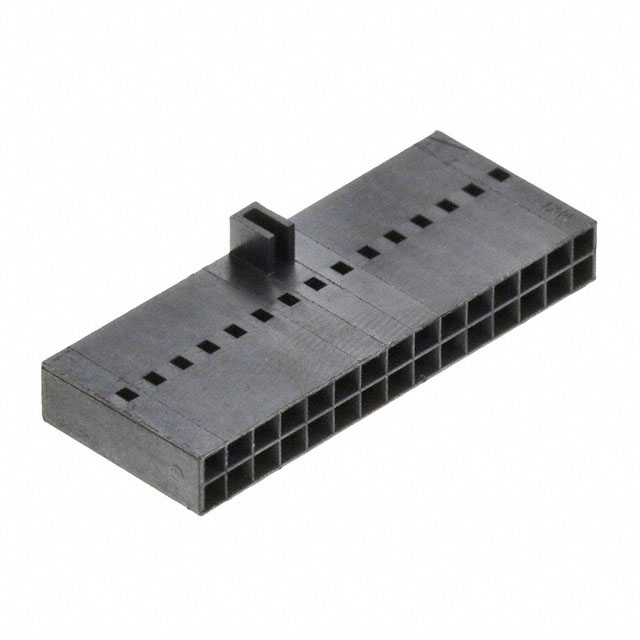

Molex 0022552302	Contacts Not Included	-40 C	105 ░C	Free Hanging (In-Line)	Crimp	Black	Female Socket	Receptacle	0.1 "	2.54 mm	2	Polyester Glass Filled	30	2.54 mm	0.1 "	Polarizing Key
Molex 0022552483	Contacts Not Included	-40 C	105 ░C	Free Hanging (In-Line)	Crimp	Black	Female Socket	Receptacle	0.1 "	2.54 mm	2	Polyester Glass Filled	48	2.54 mm	0.1 "
Molex 0022552482	Contacts Not Included	-40 C	105 ░C	Free Hanging (In-Line)	Crimp	Black	Female Socket	Receptacle	0.1 "	2.54 mm	2	Polyester Glass Filled	48	2.54 mm	0.1 "	Polarizing Key

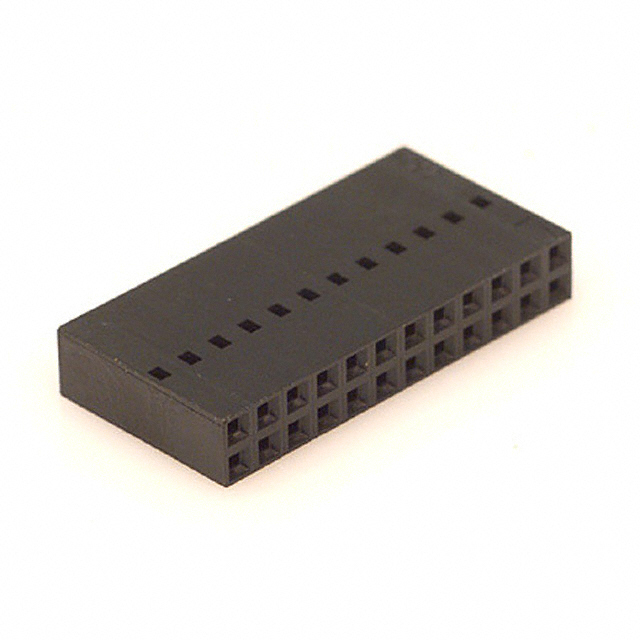

Molex 0022552241	Contacts Not Included	-40 C	105 ░C	Free Hanging (In-Line)	Crimp	Black	Female Socket	Receptacle	0.1 "	2.54 mm	2	Polyester Glass Filled	24	2.54 mm	0.1 "
