D-Sub Standard Series
Manufacturer: HARTING
Beta
⌘K

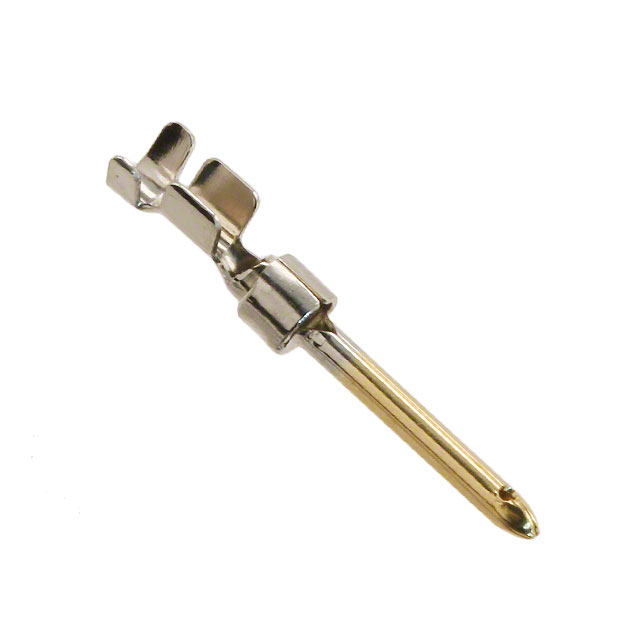

D-SUB CONTACTS MALE CONTACT STAMPED 24-20 AWG
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Contact Form | Termination Finish | Contact Termination | Features | Contact Finish | Type | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Connector Style | Current Rating (Amps) | Material Flammability Rating | Number of Rows [custom] | Flange Feature | Number of Positions | Shell Material, Finish | Termination | Connector Type | Contact Finish Thickness | Shell Size, Connector Layout | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 24 AWG | 19.5 AWG | Brass | Stamped | Nickel | Crimp | Insulation Support | Gold | Signal | Male Pin | |||||||||||||||
 HARTING | Board Guide | Gold | Signal | 1 | DE E | Right Angle Surface Mount | D-Sub | 5 A | UL94 V-0 | 2 | Housing/Shell (M3) | 9 | Nickel Plated Steel | Solder | Receptacle Female Sockets | ||||||||||
HARTING | 28 AWG | 24 AWG | Brass | Stamped | Nickel | Crimp | Insulation Support | Gold | Signal | Female Socket | |||||||||||||||
HARTING | Board Guide | Gold | Signal | Right Angle Surface Mount | D-Sub | 5 A | UL94 V-0 | 2 | Housing/Shell | 15 | Nickel Plated Steel | Solder | Receptacle Female Sockets | Flash | 2 | 4-40 |
