19430160 Series
Manufacturer: HARTING
Beta
⌘K

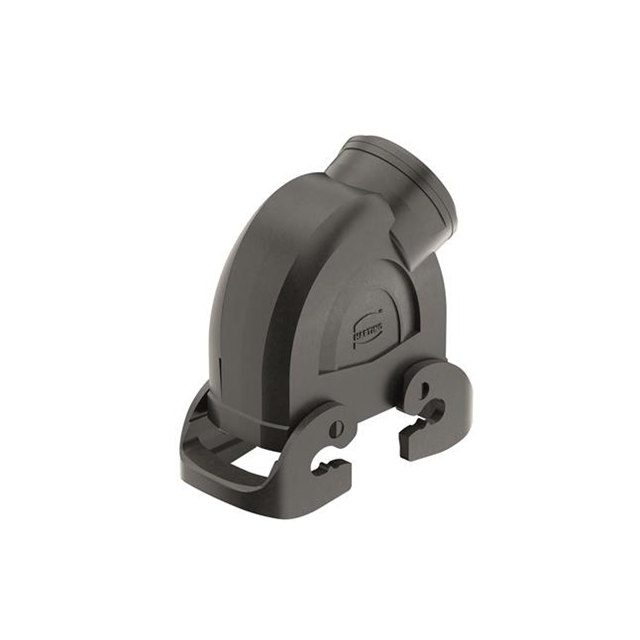

HEAVY DUTY CONNECTOR, M40, HOOD, SIDE ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER, 16B
| Part | Lock Location | Size | Connector Type | Style | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Housing Material | Housing Color | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Thread Size | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

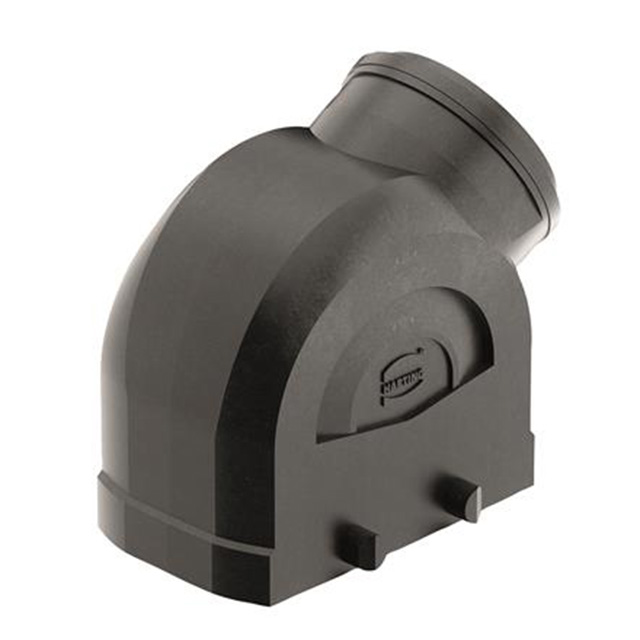

 HARTING | Locking Clip (2) on Hood | 16 B | Hood | Side Entry | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Black | ||||||||

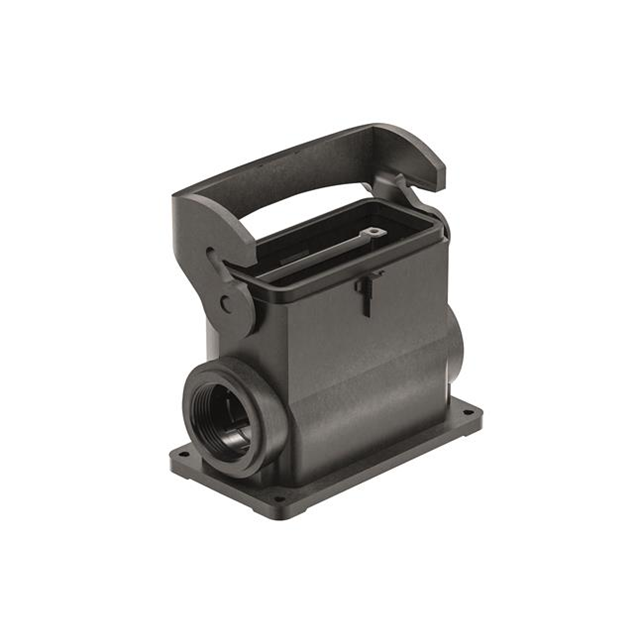

 HARTING | Locking Clip (1) on Base Bottom | 16 B | Base - Box Mount | Side Entry Dual | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Black | 118 mm | 3.465 " | 4.646 in | 88 mm | 2.559 " | 65 mm | ||

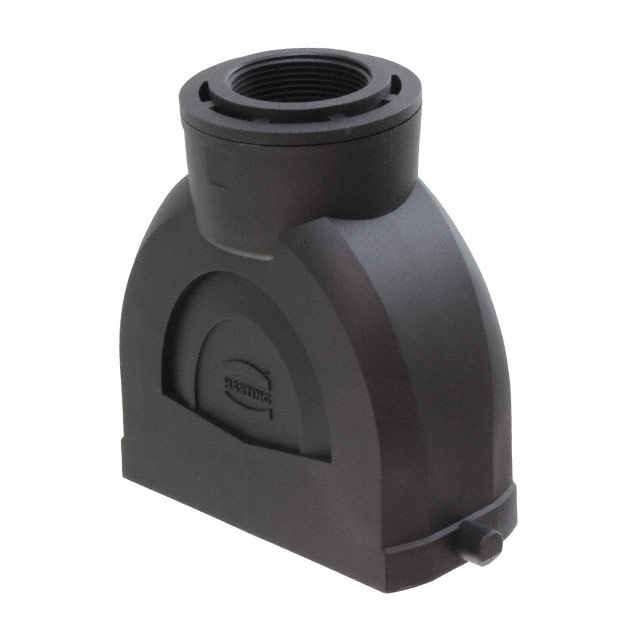

 HARTING | Locking Clip (1) on Base Bottom | 16 B | Hood | Top Entry | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Black | M32 | |||||||

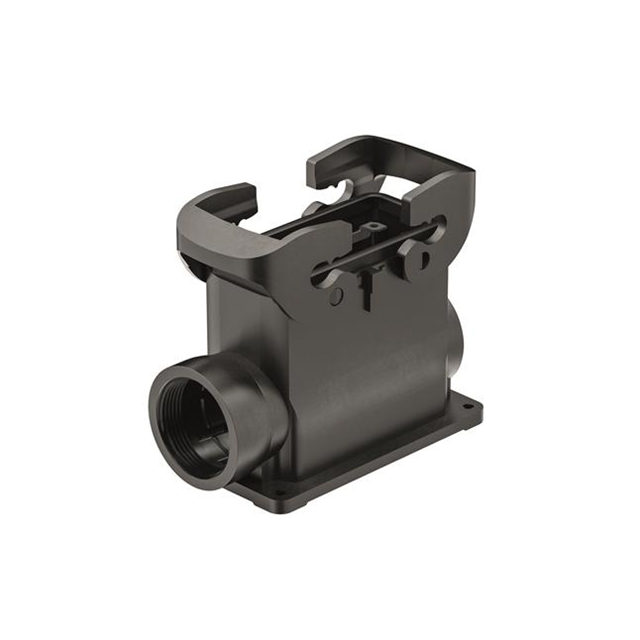

 HARTING | Locking Clip (2) on Base Bottom | 16 B | Base - Box Mount | Side Entry | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Black | 118 mm | 3.465 " | 4.646 in | 88 mm | 2.559 " | 65 mm | M25 | |
 HARTING | Locking Clip (1) on Base Bottom | 16 B | Base - Box Mount | Side Entry | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Black | 118 mm | 3.465 " | 4.646 in | 88 mm | 2.559 " | 65 mm | M25 | Cover |
 HARTING | Locking Clip (1) on Base Bottom | 16 B | Base - Box Mount | Side Entry | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Black | 118 mm | 3.465 " | 4.646 in | 88 mm | 2.559 " | 65 mm | M25 | Feed Through |

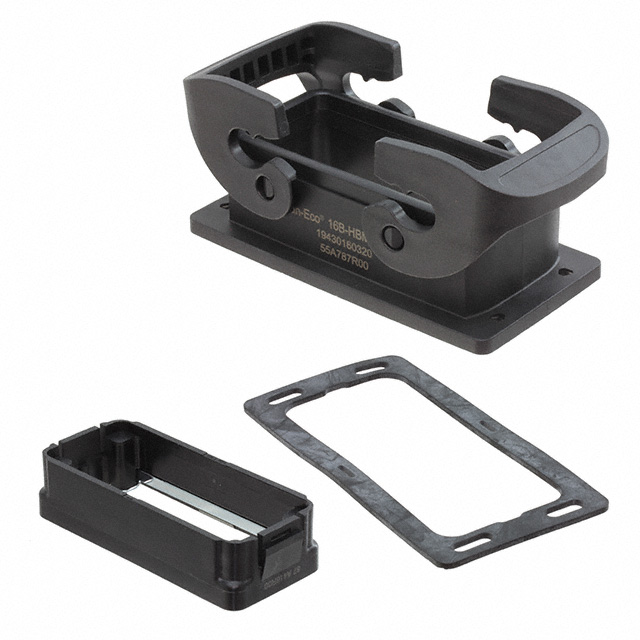

 HARTING | Locking Clip (2) on Base Bottom | 16 B | Base - Panel Mount | Bottom Entry | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Black | 4.508 in 114.5 mm | 1.421 in 36.1 mm | 2.362 in 60 mm | |||||
 HARTING | Locking Clip (2) on Base Bottom | 16 B | Hood | Side Entry | 125 °C | -40 C | IP66 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Black | M32 |
