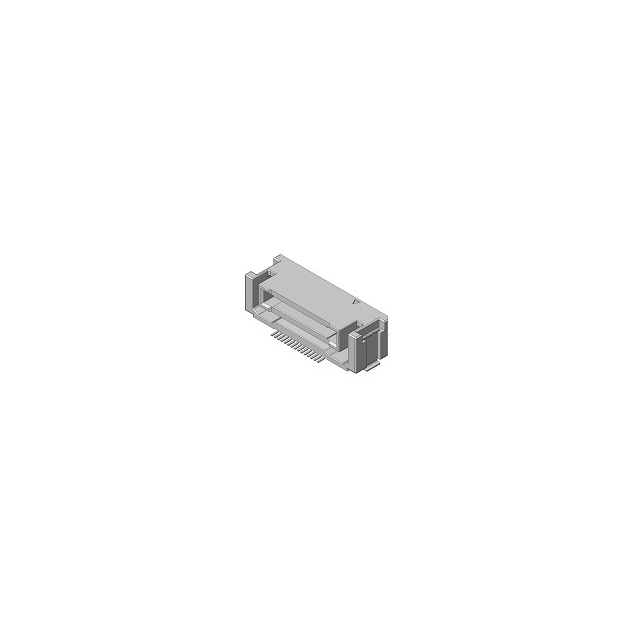

AX01R030 Series
Manufacturer: JAE Electronics
Beta
⌘K
RIGID SIDE B2B CONNECTOR, 30 POS
| Part | Mated Stacking Heights [Min] | Mated Stacking Heights [Max] | Mounting Type | Connector Type | Height Above Board [z] | Height Above Board [z] | Number of Rows [custom] | Features | Pitch | Pitch | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 8 mm | 30 mm | Surface Mount | Plug Outer Shroud Contacts | 16.6 mm | 0.654 in | 2 | Board Guide | 0.64 mm | 0.025 in | Gold | 0.1 Ám | 4 Áin | 30 |
 JAE Electronics | Right Angle Surface Mount | Plug Outer Shroud Contacts | 6.6 mm | 0.26 in | 2 | Board Guide Solder Retention | 0.64 mm | 0.025 in | Gold | 0.1 Ám | 4 Áin | 30 |
