310-060 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 60POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Contact Type	Gender	Number of Positions/Bay/Row	Read Out	Contact Finish Thickness	Contact Finish Thickness	Card Type	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Number of Rows [custom]	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Number of Positions	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Color	Features

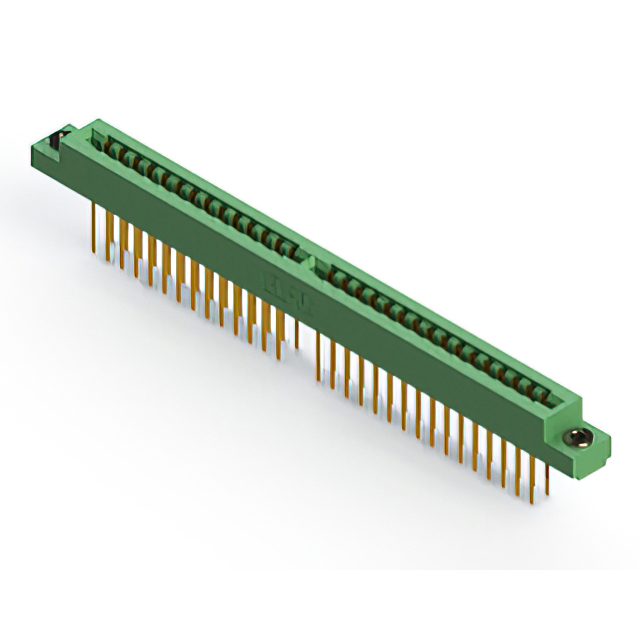

EDAC Inc. 310-060-542-203	Polyester Thermoplastic	2	Copper Alloy	Semi Bellows	Female	30	Dual	0.25 Ám	10 Áin	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	Wire Wrap	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	60	3.96 mm	0.156 in	-40 C	105 ░C	Green

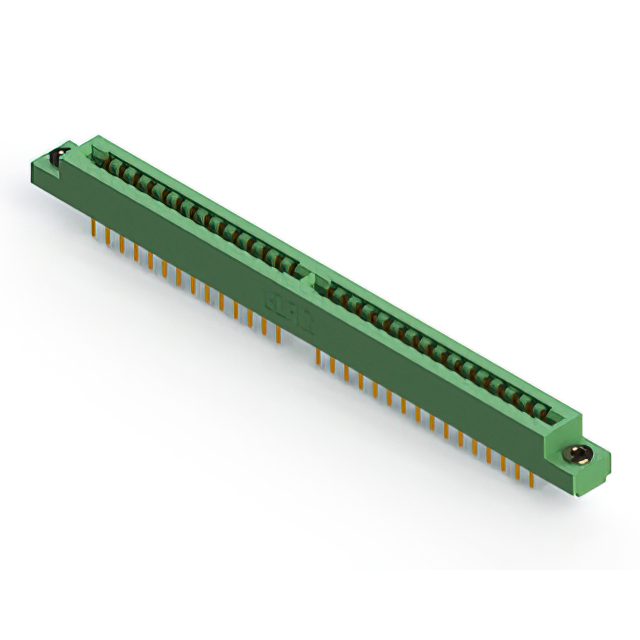

EDAC Inc. 310-060-520-203	Polyester Thermoplastic	2	Copper Alloy	Semi Bellows	Female	30	Dual	0.25 Ám	10 Áin	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	Solder	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	60	3.96 mm	0.156 in	-40 C	105 ░C	Green

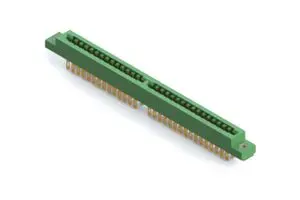

EDAC Inc. 310-060-500-207	Polyester Thermoplastic	2	Copper Alloy	Semi Bellows	Female	30	Dual	0.25 Ám	10 Áin	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	Solder Eyelet(s)		Flush Mount M3 Threaded Insert Top Opening		Gold	60	3.96 mm	0.156 in	-40 C	105 ░C	Green

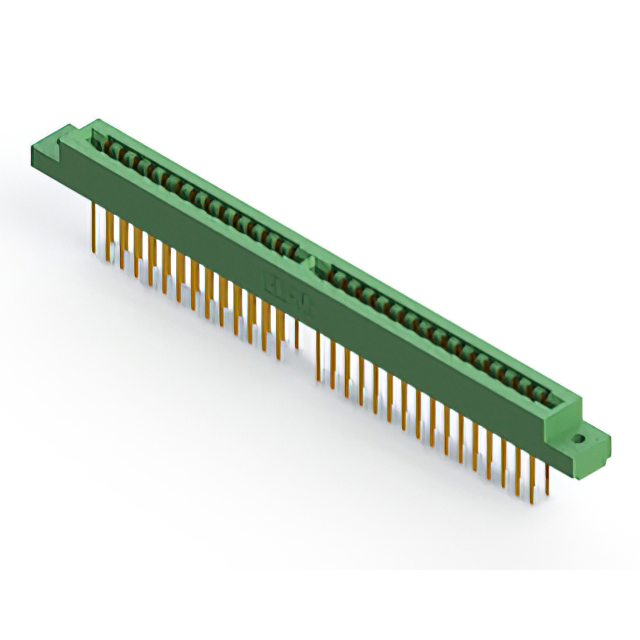

EDAC Inc. 310-060-542-202	Polyester Thermoplastic	2	Copper Alloy	Semi Bellows	Female	30	Dual	0.25 Ám	10 Áin	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	Wire Wrap	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Gold	60	3.96 mm	0.156 in	-40 C	105 ░C	Green

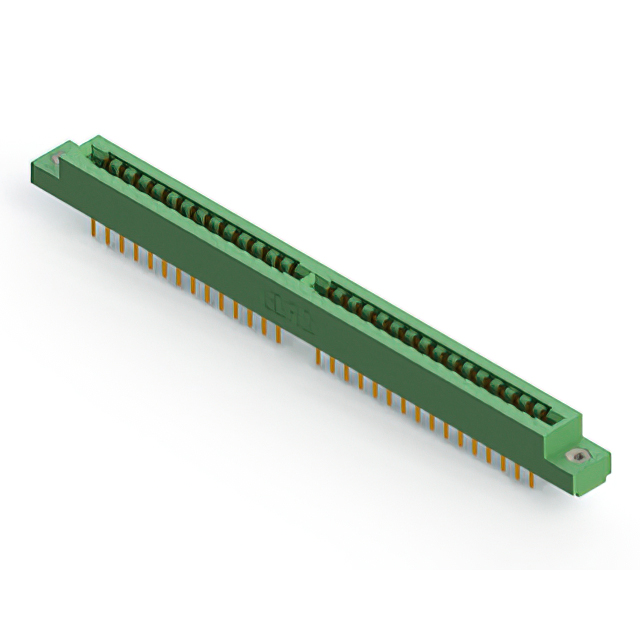

EDAC Inc. 310-060-520-208	Polyester Thermoplastic	2	Copper Alloy	Semi Bellows	Female	30	Dual	0.25 Ám	10 Áin	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	Solder		4-40 Flush Mount Threaded Insert Top Opening		Gold	60	3.96 mm	0.156 in	-40 C	105 ░C	Green

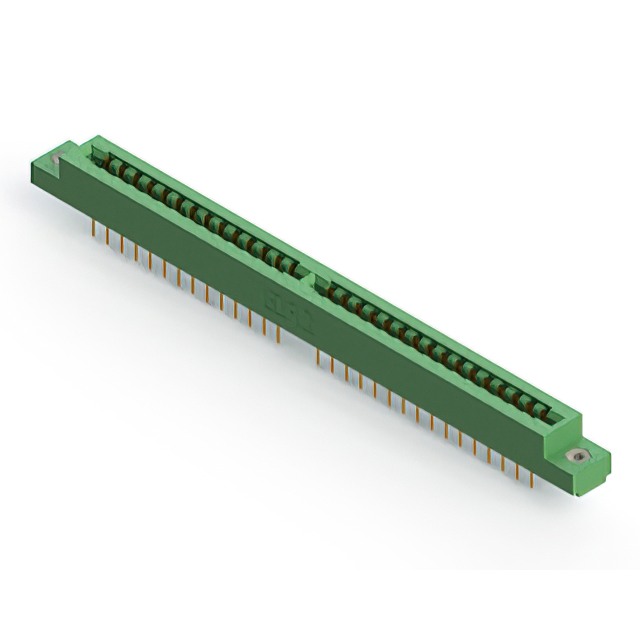

EDAC Inc. 310-060-524-208	Polyester Thermoplastic	2	Copper Alloy	Semi Bellows	Female	30	Dual	0.25 Ám	10 Áin	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	Solder		4-40 Flush Mount Threaded Insert Top Opening		Gold	60	3.96 mm	0.156 in	-40 C	105 ░C	Green

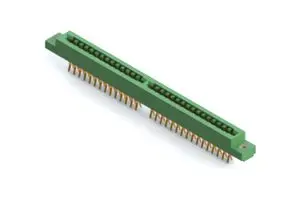

EDAC Inc. 310-060-560-208	Polyester Thermoplastic	2	Copper Alloy	Semi Bellows	Female	30	Dual	0.25 Ám	10 Áin	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	2	Solder		4-40 Flush Mount Threaded Insert Top Opening		Gold	60	3.96 mm	0.156 in	-40 C	105 ░C	Green	Card Extender
EDAC Inc. 310-060-556-204	Polyester Thermoplastic	2	Copper Alloy	Semi Bellows	Female	30	Dual	0.25 Ám	10 Áin	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	2	Solder	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Gold	60	3.96 mm	0.156 in	-40 C	105 ░C	Green	Card Extender

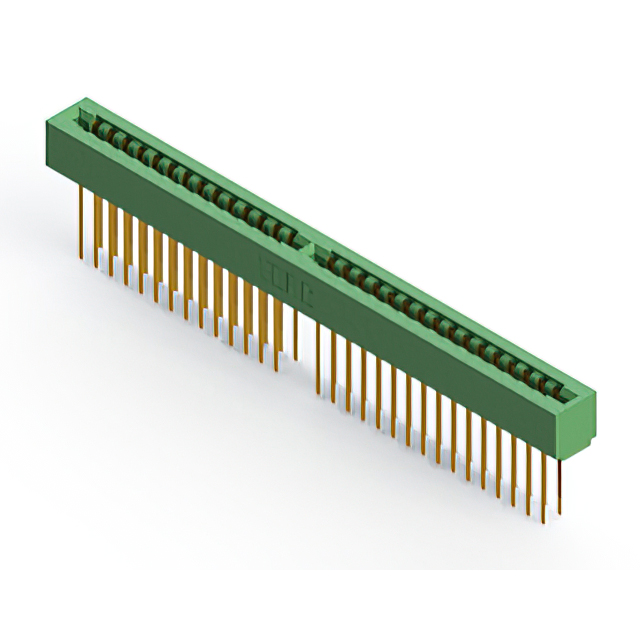

EDAC Inc. 310-060-540-201	Polyester Thermoplastic	2	Copper Alloy	Semi Bellows	Female	30	Dual	0.25 Ám	10 Áin	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	Wire Wrap				Gold	60	3.96 mm	0.156 in	-40 C	105 ░C	Green
EDAC Inc. 310-060-540-204	Polyester Thermoplastic	2	Copper Alloy	Semi Bellows	Female	30	Dual	0.25 Ám	10 Áin	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	Wire Wrap	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Gold	60	3.96 mm	0.156 in	-40 C	105 ░C	Green
