100G0111 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HOOK-UP WIRE 37AGW 750/1300V CBL PRICE PER FT

Part	Operating Temperature	Length	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Wire Gauge	Jacket Color	Jacket (Insulation) Thickness	Voltage (Max)	Voltage (Min)	Conductor Strand Diameter	Conductor Strand Count	Conductor Material	Length	Spool Size	Operating Temperature (Max)	Operating Temperature (Min)
TE Connectivity AMP Connectors 100G0111-3.00-0	125 °C	3281 ft	Dual Wall Hook Up	Polymer	0.109 in	12 AWG	Black	0.01 in	1300 V	750 V	0.0126 in	37	Copper Tinned
TE Connectivity AMP Connectors 100G0111-0.50-9	125 °C		Hook-Up		0.055 in		White	0.008 in	1300 V	750 V	0.0071 in	19	Copper Tinned	Enter Number of Feet in Order Quantity

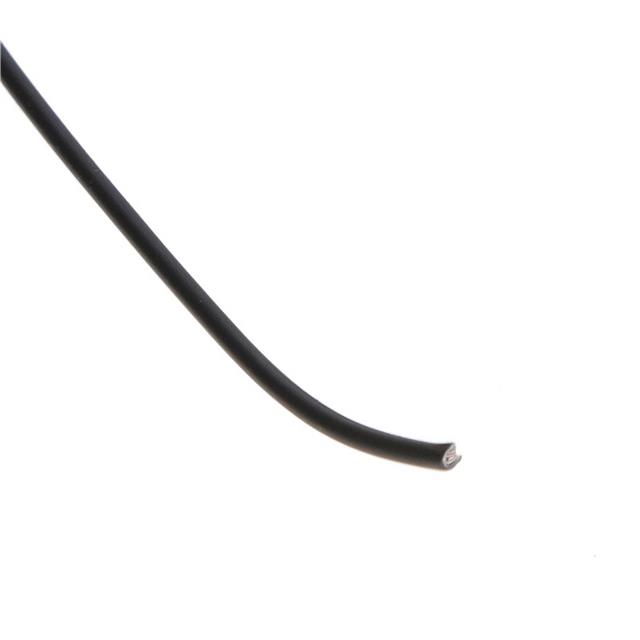

TE Connectivity AMP Connectors 100G0111-0.50-0	125 °C	4921.3 ft	Hook-Up	Polymer	0.055 in		Black	0.008 in	1300 V	750 V	0.0071 in	19	Copper Tinned	Enter Number of Feet in Order Quantity
TE Connectivity AMP Connectors 100G0111-1.00-2	125 °C	3281 ft	Dual Wall Hook Up	Polymer	0.069 in	18 AWG	Red	0.008 in	1300 V	750 V	0.0098 in	19	Copper Tinned
TE Connectivity AMP Connectors 100G0111-1.50-6	125 °C	3281 ft	Dual Wall Hook Up	Polymer	0.082 in	15 AWG	Blue	0.008 in	1300 V	750 V	0.0098 in	37	Copper Tinned
TE Connectivity AMP Connectors 100G0111-1.00-9	125 °C		Dual Wall Hook Up	Polymer	0.069 in	18 AWG	White	0.008 in	1300 V	750 V	0.0098 in	19	Copper Tinned	Enter Number of Feet in Order Quantity
TE Connectivity AMP Connectors 100G0111-0.50-45	125 °C		Hook-Up		0.055 in		Green Yellow	0.008 in	1300 V	750 V	0.0071 in	19	Copper Tinned

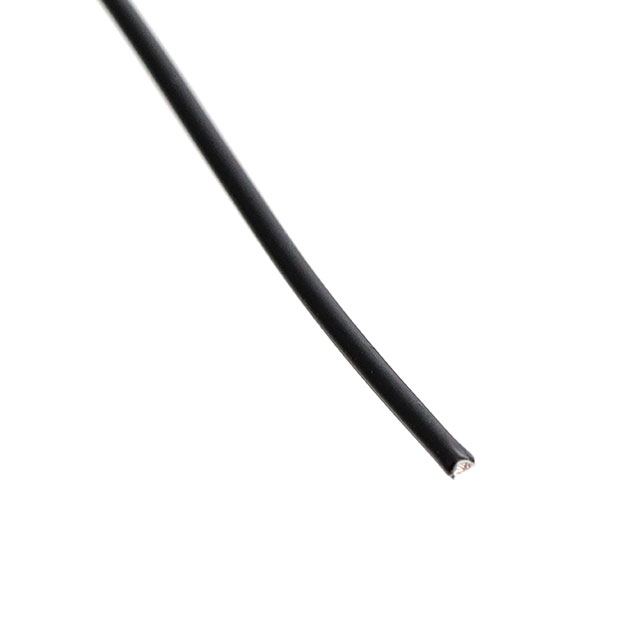

TE Connectivity AMP Connectors 100G0111-0.25-0	125 °C		Dual Wall Hook Up	Polymer	0.045 in	24 AWG	Black	0.008 in	1300 V	750 V	0.0051 in	19	Copper Tinned	Enter Number of Feet in Order Quantity	9843 ft
TE Connectivity AMP Connectors 100G0111-0.60-9			Dual Wall Hook Up	Polymer	0.06 in	20 AWG	White	0.008 in	1300 V	750 V	0.0079 in	19	Copper Tinned			125 °C	-55 °C
TE Connectivity AMP Connectors 100G0111-1.00-0	125 °C		Dual Wall Hook Up	Polymer	0.069 in	18 AWG	Black	0.008 in	1300 V	750 V	0.0098 in	19	Copper Tinned	Enter Number of Feet in Order Quantity	9843 ft
