TPD5E003 Series

5 channel 7-pF, 5.5-V, 15-kV ESD protection device in 1mm2 X2SON package

Catalog

5 channel 7-pF, 5.5-V, 15-kV ESD protection device in 1mm2 X2SON package

Part	Type	Bidirectional Channels [custom]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Mounting Type	Package / Case	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection	Unidirectional Channels [custom]

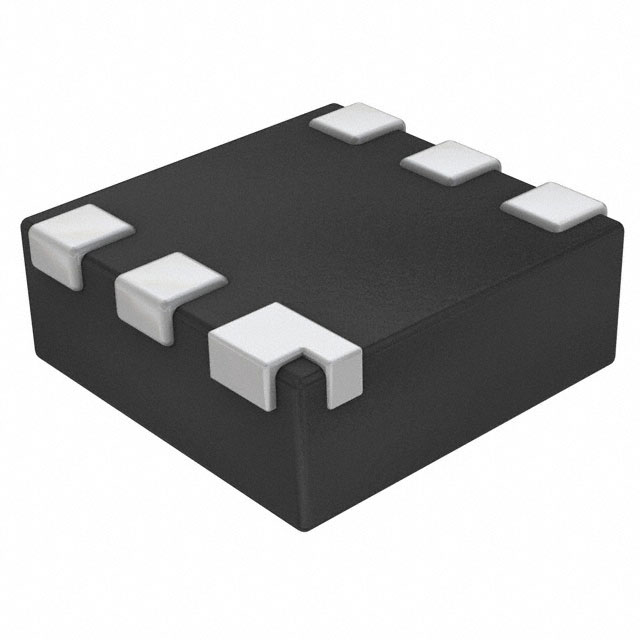

Texas Instruments TPD5E003DPFR	Zener	4	General Purpose	-40 °C	125 °C	6 V	40 W	Surface Mount	6-XFDFN	10 pF	5 V	6-X2SON (1x1)	3 A	19.5 V		5

Catalog

5 channel 7-pF, 5.5-V, 15-kV ESD protection device in 1mm2 X2SON package

Key Features

• Provides System-Level ESD Protection for Low-Voltage I/O InterfaceIEC 61000-4-2 Level 4±15 kV (Contact Discharge)±15 kV (Air-Gap Discharge)Typical I/O Capacitance 7 pF (VIO= 2.5 V)DC Breakdown Voltage: 6 V (Minimum)Low Leakage Current: 100 nA (Maximum)Low ESD Clamping VoltageIndustrial Temperature Range: –40°C to 125°CIEC 61000-4-5 (Surge): 40 W (8/20-µs Pulse)Small, Easy-to-Route DPF PackageProvides System-Level ESD Protection for Low-Voltage I/O InterfaceIEC 61000-4-2 Level 4±15 kV (Contact Discharge)±15 kV (Air-Gap Discharge)Typical I/O Capacitance 7 pF (VIO= 2.5 V)DC Breakdown Voltage: 6 V (Minimum)Low Leakage Current: 100 nA (Maximum)Low ESD Clamping VoltageIndustrial Temperature Range: –40°C to 125°CIEC 61000-4-5 (Surge): 40 W (8/20-µs Pulse)Small, Easy-to-Route DPF Package

Description

The TPD5E003 is a five-channel electrostatic discharge (ESD) transient voltage suppression (TVS) device. This device offers ±15-kV IEC contact and ±15-kV air-gap (level 4) ESD protection, and features five identical ESD clamping diodes that can be used to protect either five unidirectional (0 V to 5 V) I/O lines or four bidirectional (–5 V to 5 V) I/O lines. The compact DPF package is an industry standard and is convenient for component placement inspace-constrained applications. Typical application interfaces include SIM card interfaces, audio lines (mics, earphones, and speakerphones), SD interfaces, and keypads, or other buttons. Typical end equipment includes cell phones, tablets, remote controllers, and wearables. The TPD5E003 is a five-channel electrostatic discharge (ESD) transient voltage suppression (TVS) device. This device offers ±15-kV IEC contact and ±15-kV air-gap (level 4) ESD protection, and features five identical ESD clamping diodes that can be used to protect either five unidirectional (0 V to 5 V) I/O lines or four bidirectional (–5 V to 5 V) I/O lines. The compact DPF package is an industry standard and is convenient for component placement inspace-constrained applications. Typical application interfaces include SIM card interfaces, audio lines (mics, earphones, and speakerphones), SD interfaces, and keypads, or other buttons. Typical end equipment includes cell phones, tablets, remote controllers, and wearables.
