0152-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Termination	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Contact Material
Mill-Max Manufacturing Corp. 0152-0-15-15-30-14-04-0	-55 C	125 °C	0.6 in	15.24 mm	Press-Fit	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.25 Ám	10 Áin	1.45 mm	0.057 in	0.072 "	1.83 mm	Standard Tail	0.025 in	0.64 mm	3.81 mm	0.15 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0152-0-15-01-30-14-04-0	-55 C	125 °C	0.6 in	15.24 mm	Press-Fit	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.25 Ám	10 Áin	1.45 mm	0.057 in	0.072 "	1.83 mm	Standard Tail	0.025 in	0.64 mm	3.81 mm	0.15 in	Beryllium Copper

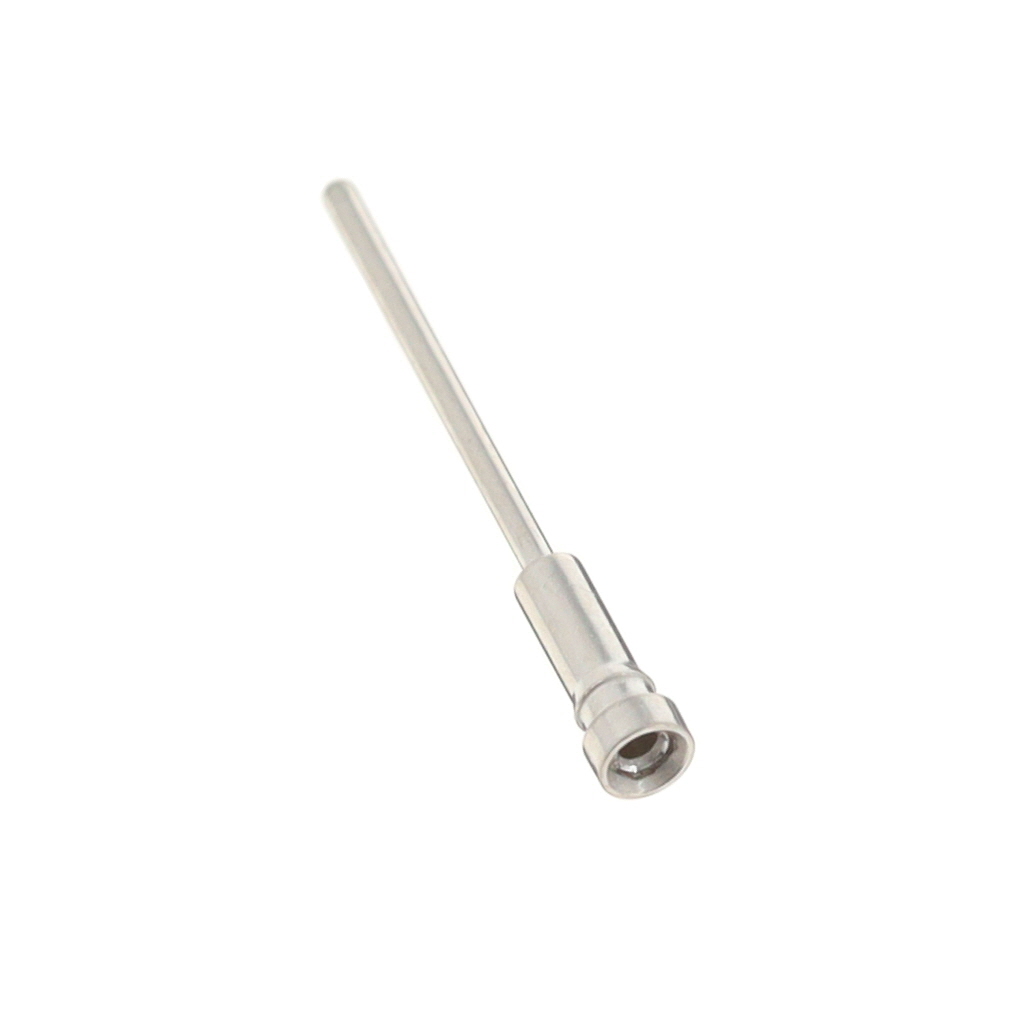

Mill-Max Manufacturing Corp. 0152-0-15-80-30-84-04-0	-55 C	125 °C	0.6 in	15.24 mm	Press-Fit	Tin	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 µm	100 µin	1.45 mm	0.057 in	0.072 "	1.83 mm	Standard Tail	0.025 in	0.64 mm	3.81 mm	0.15 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0152-0-15-01-30-27-04-0	-55 C	125 °C	0.6 in	15.24 mm	Press-Fit	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	1.45 mm	0.057 in	0.072 "	1.83 mm	Standard Tail	0.025 in	0.64 mm	3.81 mm	0.15 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0152-0-15-01-30-02-04-0	-55 C	125 °C	0.6 in	15.24 mm	Press-Fit	Tin-Lead	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 µm	100 µin	1.45 mm	0.057 in	0.072 "	1.83 mm	Standard Tail	0.025 in	0.64 mm	3.81 mm	0.15 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0152-0-15-80-30-27-04-0	-55 C	125 °C	0.6 in	15.24 mm	Press-Fit	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	1.45 mm	0.057 in	0.072 "	1.83 mm	Standard Tail	0.025 in	0.64 mm	3.81 mm	0.15 in	Beryllium Copper
