800AWSP8 Series
Manufacturer: E-Switch
Beta
⌘K

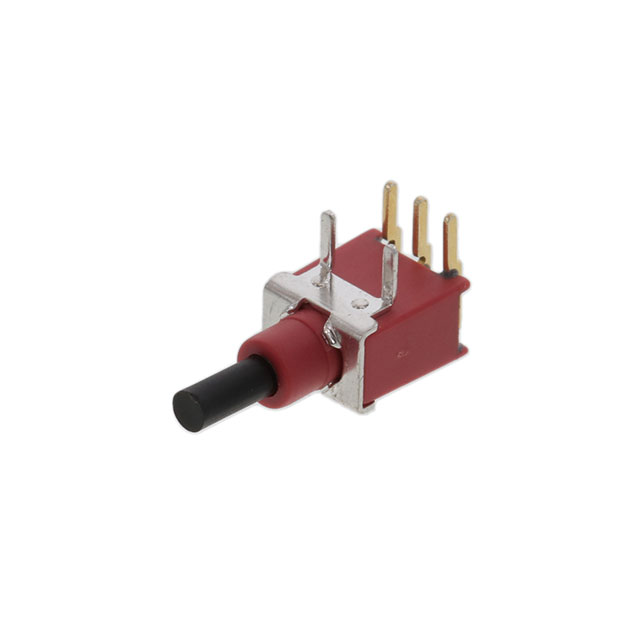

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 1A/250VAC; 3A/28VDC; ON-(ON)
| Part | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Circuit | Actuator Type | Switch Function | Type | Current Rating (Amps) | Termination Style | Features | Color - Actuator/Cap | Ingress Protection | Voltage Rating - AC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 50000 Cycles | 85 °C | -40 C -30 ░C | No Marking | SPDT | Plunger Round | On-Mom | Standard | 1 A | PC Pin | Epoxy Sealed Terminals | Black | IP67 - Dust Tight Waterproof | 120 V | Right Angle Through Hole |
 E-Switch | 50000 Cycles | 85 °C | -40 C -30 ░C | No Marking | SPDT | Plunger Round | On-Mom | Standard | 1 A | PC Pin | Epoxy Sealed Terminals | Black | IP67 - Dust Tight Waterproof | 120 V | Through Hole |
 E-Switch | 50000 Cycles | 85 °C | -40 C -30 ░C | No Marking | SPDT | Plunger Round | On-Mom | Standard | 1 A | PC Pin | Epoxy Sealed Terminals | Black | IP67 - Dust Tight Waterproof | 120 V | Right Angle Through Hole Vertical |
E-Switch | 50000 Cycles | 85 °C | -40 C -30 ░C | No Marking | SPDT | Plunger Round | On-Mom | Standard | 1 A | PC Pin | Epoxy Sealed Terminals | Black | IP67 - Dust Tight Waterproof | 120 V | Through Hole |
