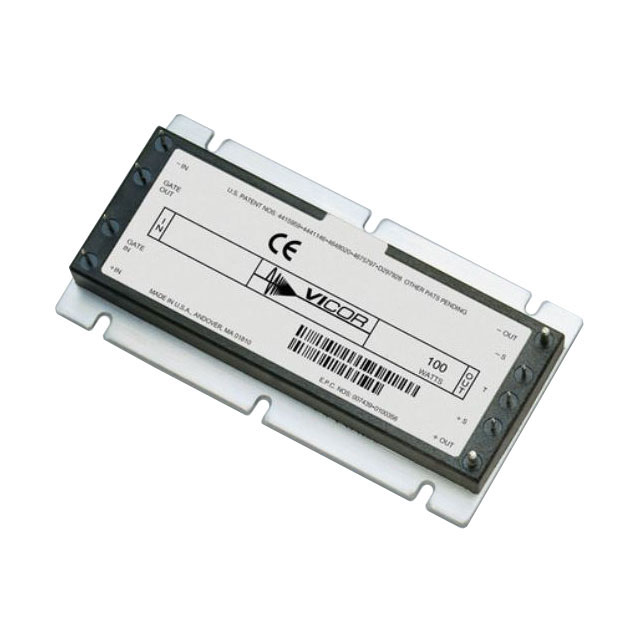

MI-22L Series

Catalog

DC DC CONVERTER 28V 100W

Part	Voltage - Isolation	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Features	Current - Output (Max) [Max]	Type	Mounting Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Package / Case	Power (Watts)
Vicor Corporation MI-22L-MW-F1	3000 V	90 %	61 mm	0.75 "	106.7 mm	19 mm	2.4 in	4.2 "	50 V	OCP OTP OVP Remote On/Off	3.57 A	Isolated Module	Through Hole	28 V	-55 C	85 °C	1	ITE (Commercial)	18 V	Full Brick	100 W
Vicor Corporation MI-22L-MY-F1	3000 V	90 %	61 mm	0.75 "	106.7 mm	19 mm	2.4 in	4.2 "	50 V	OCP OTP OVP Remote On/Off	1.79 A	Isolated Module	Through Hole	28 V	-55 C	85 °C	1	ITE (Commercial)	18 V	Full Brick	50 W
Vicor Corporation MI-22L-MW-B1
Vicor Corporation MI-22L-IW	3000 V	90 %	61 mm	0.5 in	106.7 mm	12.7 mm	2.4 in	4.2 "	50 V	OCP OTP OVP Remote On/Off	3.57 A	Isolated Module	Through Hole	28 V	-40 C	85 °C	1	ITE (Commercial)	18 V	Full Brick	100 W
Vicor Corporation MI-22L-MW	3000 V	90 %	61 mm	0.5 in	106.7 mm	12.7 mm	2.4 in	4.2 "	50 V	OCP OTP OVP Remote On/Off	3.57 A	Isolated Module	Through Hole	28 V	-55 C	85 °C	1	ITE (Commercial)	18 V	Full Brick	100 W
