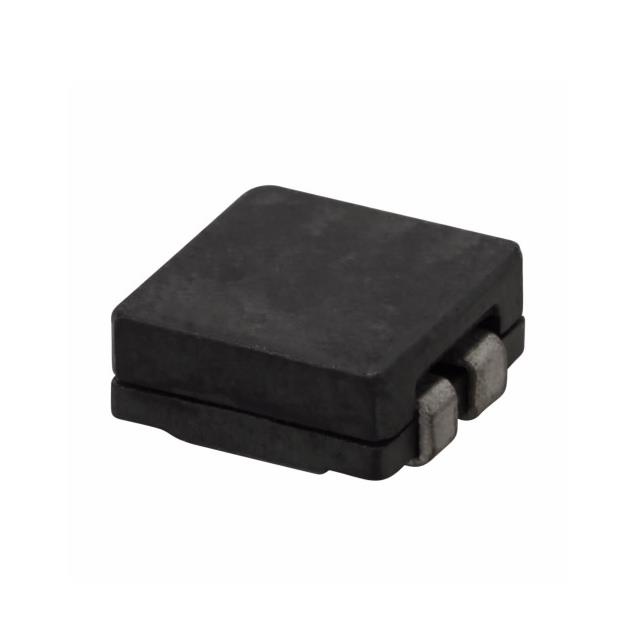

Power Inductors - SMD 0.12uH 18A Flat-Pac FP2
Power Inductors - SMD 0.12uH 18A Flat-Pac FP2
| Part | Inductance Frequency - Test | Material - Core | Package / Case | Current Rating (Amps) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance | Shielding | Tolerance | DC Resistance (DCR) | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 1 MHz | Ferrite | Nonstandard | 37 A | 0.118 " | 3 mm | 120 nH | Unshielded | 15 % | 0.26 mOhm | Surface Mount | 0.264 " | 7.2 mm | 6.7 mm | 0.283 " | 125 °C | -40 C | Drum Core Wirewound | 18 A |
