333-030 Series
Manufacturer: EDAC Inc.
Beta
⌘K

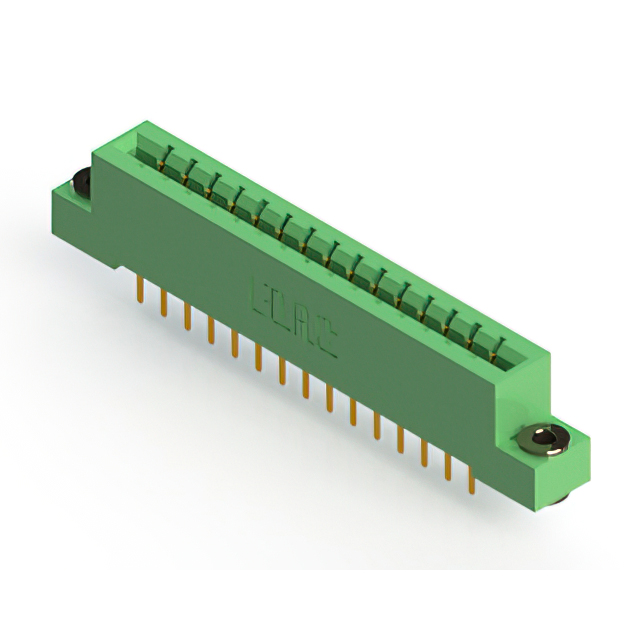

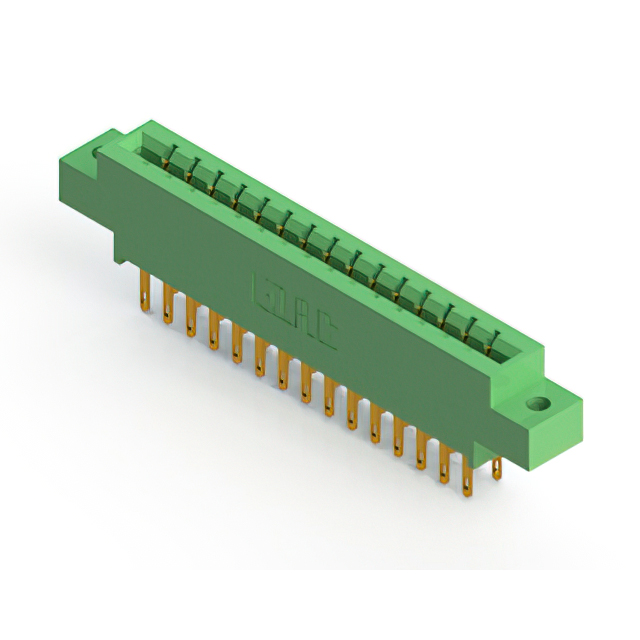

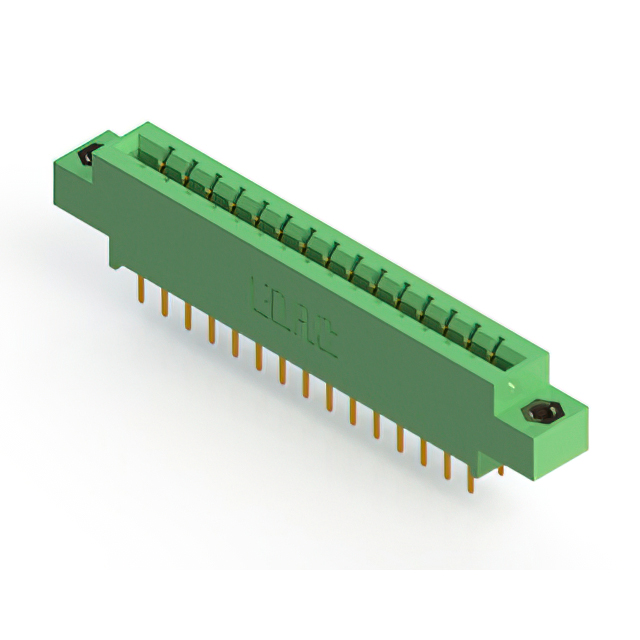

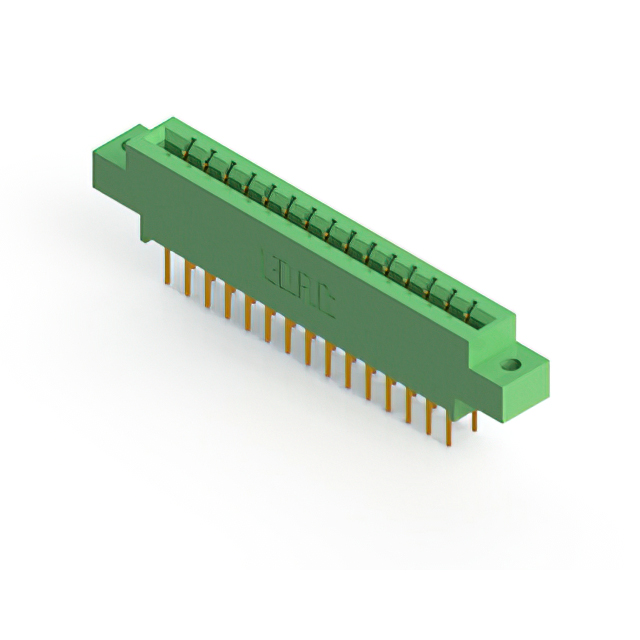

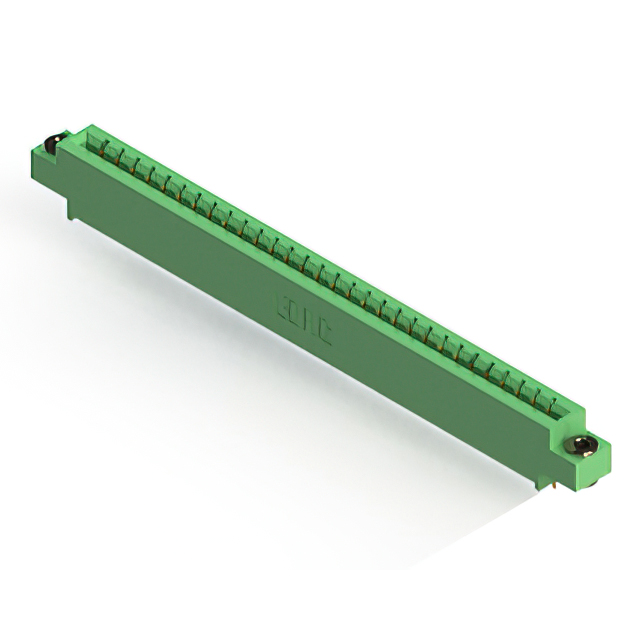

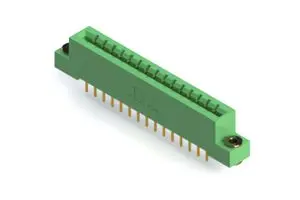

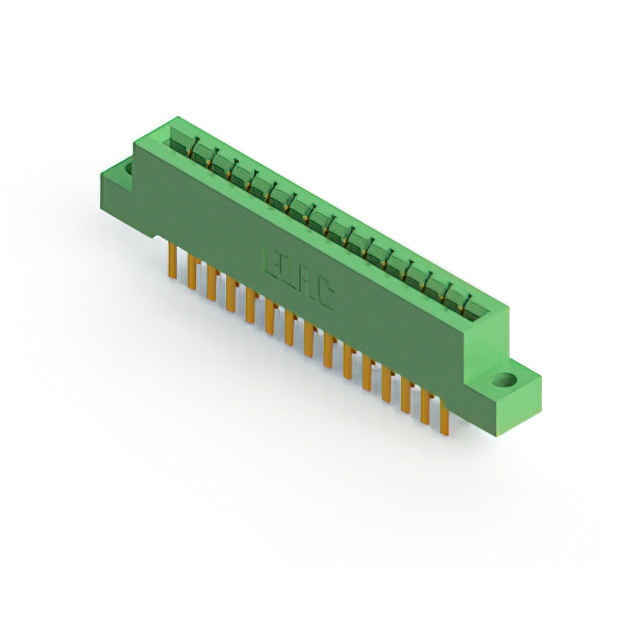

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Gender | Card Type | Pitch | Pitch | Color | Contact Material | Number of Positions/Bay/Row | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Contact Finish | Read Out | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Termination Rows [custom] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Non Specified - Single Edge | 3.96 mm | 0.156 in | Green | Copper Alloy | 30 | Cantilever | -40 C | 105 ░C | 1 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Solder | Gold | Single | 0.25 Ám | 10 Áin | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | ||
 EDAC Inc. | Polyester Thermoplastic | Female | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | Copper Alloy | 15 | Cantilever | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Wire Wrap | Gold | Dual | 0.25 Ám | 10 Áin | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | 2 | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | Female | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | Copper Alloy | 15 | Cantilever | -40 C | 105 ░C | M3 Threaded Insert Top Mount Opening | Solder | Gold | Dual | 0.25 Ám | 10 Áin | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | 2 | 2 | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Non Specified - Single Edge | 3.96 mm | 0.156 in | Green | Copper Alloy | 30 | Cantilever | -40 C | 105 ░C | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | Gold | Single | 0.25 Ám | 10 Áin | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | ||||
 EDAC Inc. | Polyester Thermoplastic | Female | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | Copper Alloy | 15 | Cantilever | -40 C | 105 ░C | 0.128 " | 3.25 mm | Wire Wrap | Gold | Dual | 0.25 Ám | 10 Áin | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | 2 | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Non Specified - Single Edge | 3.96 mm | 0.156 in | Green | Copper Alloy | 30 | Cantilever | -40 C | 105 ░C | 1 | 0.156 " | 3.96 mm | Wire Wrap | Gold | Single | 0.25 Ám | 10 Áin | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | |||
 EDAC Inc. | Polyester Thermoplastic | Female | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | Copper Alloy | 15 | Cantilever | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Wire Wrap | Gold | Dual | 0.25 Ám | 10 Áin | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | 2 | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Non Specified - Single Edge | 3.96 mm | 0.156 in | Green | Copper Alloy | 30 | Cantilever | -40 C | 105 ░C | 1 | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Gold | Single | 0.25 Ám | 10 Áin | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | ||||
 EDAC Inc. | Polyester Thermoplastic | Female | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Green | Copper Alloy | 15 | Cantilever | -40 C | 105 ░C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Solder | Gold | Dual | 0.25 Ám | 10 Áin | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 | 2 | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Non Specified - Single Edge | 3.96 mm | 0.156 in | Green | Copper Alloy | 30 | Cantilever | -40 C | 105 ░C | 1 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Gold | Single | 0.25 Ám | 10 Áin | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 30 |
