EMSTBV Series

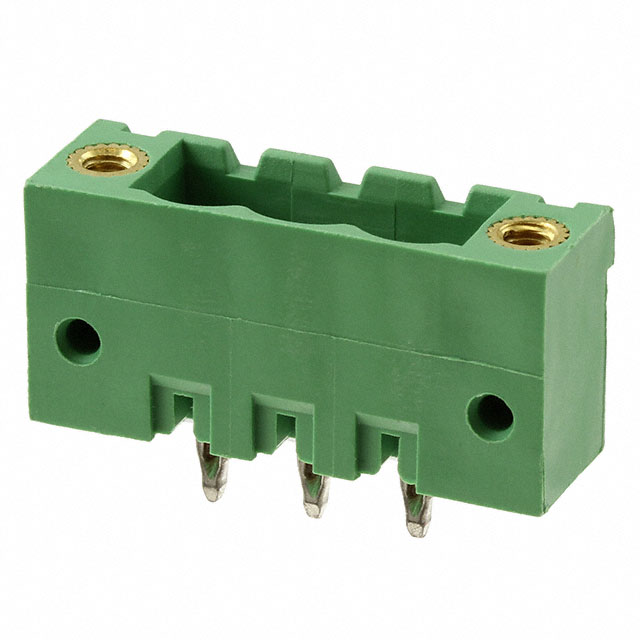

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Press In Header
Manufacturer: Phoenix Contact
Catalog
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Press In Header
Beta
⌘K
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Press In Header
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Press In Header
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Press In Header
| Part | Material Flammability Rating | Housing Material | Insulation Height | Insulation Height | Contact Tail Length | Contact Tail Length | Positions Per Level | Mounting Type | Header Orientation | Type | Current - UL | Voltage - UL | Number of Levels | Pitch | Pitch | Contact Mating Finish | Voltage - IEC | Features | Termination Style | Current - IEC | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | UL94 V-0 | Polybutylene Terephthalate (PBT) | 0.472 " | 12 mm | 3.9 mm | 0.154 in | 3 | Through Hole | Vertical | Header Male Pins Shrouded (4 Side) | 12 A | 300 V | 1 | 5.08 mm | 0.2 in | Tin | 320 V | Mating and Mounting Flange | Press-Fit | 12 A | Green |
