1586512 Series

Catalog

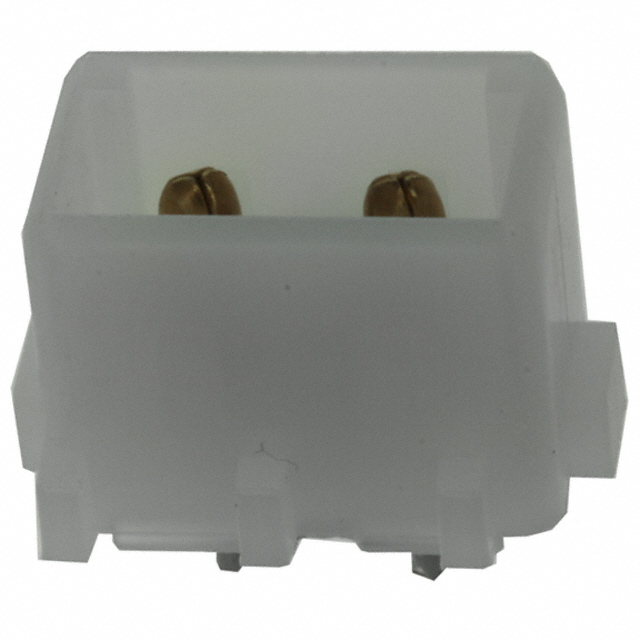

CONN HEADER VERT 2POS 5.08MM

Part	Contact Finish - Post	Mounting Type	Contact Type	Current Rating (Amps)	Termination	Material Flammability Rating	Number of Rows	Contact Shape	Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shrouding	Insulation Color	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Connector Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Applications	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 1586512-2	Tin	Through Hole	Male Pin	12 A	Solder	UL94 V-2	1	Circular	Board to Cable/Wire	105 ░C	-55 °C	Copper Alloy	Shrouded - 4 Wall	Natural	Nylon Polyamide (PA)	0.15 in	3.81 mm	0.181 in	4.6 mm	Header	250 VAC	5.08 mm	0.2 in	General Purpose	Detent Lock	2	30 Áin	0.76 Ám	0.375 in	9.53 mm	All	Gold
