AWHW2 34 Series

Catalog

CONN HEADER R/A 34POS 2.54MM

Part	Contact Material	Mounting Type	Features	Contact Finish - Post	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Type	Number of Positions Loaded	Material Flammability Rating	Shrouding	Contact Finish - Mating	Number of Positions [custom]	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Current Rating (Amps)	Termination	Insulation Height	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Insulation Color	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post [x]	Contact Length - Post [x]

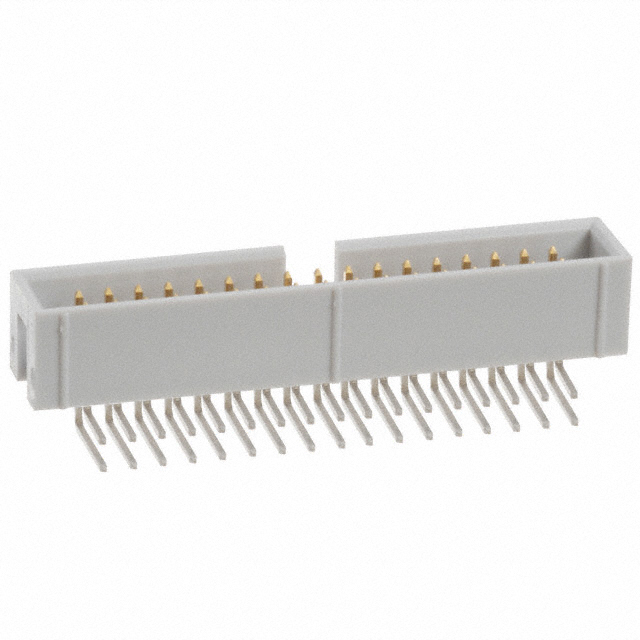

Assmann WSW Components AWHW34A-0202-T-R	Brass	Right Angle Through Hole	Keying Slot	Tin	2	0.224 in	5.7 mm	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	All	UL94 V-0	Shrouded - 4 Wall	Gold	34	0.1 "	2.54 mm	0.1 in	2.54 mm	Push-Pull	-40 C	105 ░C	Square	3 A	Solder	8.94 mm	0.352 in	Header	Flash	0.124 in	3.15 mm	Gray	Board to Cable/Wire

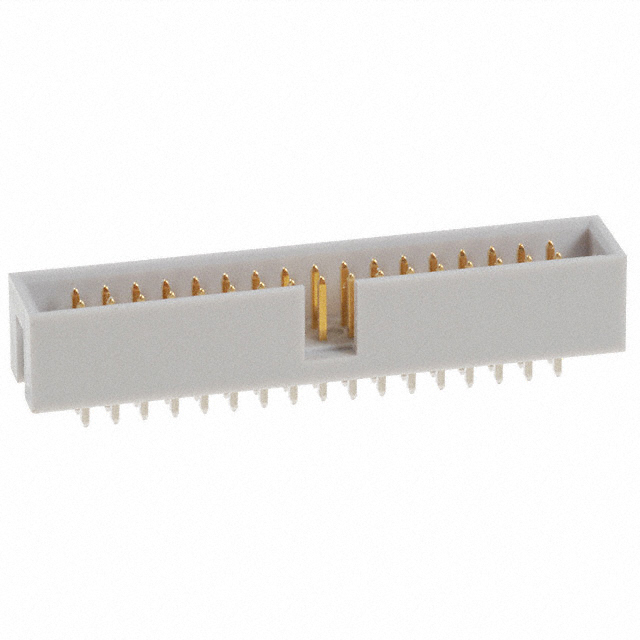

Assmann WSW Components AWHW34G-0102-T-R	Brass	Through Hole	Keying Slot	Tin	2	0.224 in	5.7 mm	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	All	UL94 V-0	Shrouded - 4 Wall	Gold	34	0.1 "	2.54 mm	0.1 in	2.54 mm	Push-Pull	-40 C	105 ░C	Square	3 A	Solder	9 mm	0.354 in	Header		0.13 "	3.3 mm	Gray	Board to Cable/Wire	0.76 Ám	30 Áin
Assmann WSW Components AWHW2 34G-0202	Brass	Through Hole			2	0.157 in	4 mm	Glass Filled Nylon 9T Polyamide (PA9T)	Male Pin	All	UL94 V-0	Shrouded - 4 Wall	Gold	34	0.079 "	2 mm			Push-Pull	-40 C	105 ░C	Square	1.5 A	Solder	5.74 mm	0.226 in	Header	Flash			Black	Board to Cable/Wire			2 mm	0.079 in	0.11 in	2.8 mm
Assmann WSW Components AWHW2 34A-0202	Brass	Right Angle Through Hole			2	0.157 in	4 mm	Glass Filled Nylon 9T Polyamide (PA9T)	Male Pin	All	UL94 V-0	Shrouded - 4 Wall	Gold	34	0.079 "	2 mm			Push-Pull	-40 C	105 ░C	Square	1.5 A	Solder	5.51 mm	0.217 in	Header	Flash			Black	Board to Cable/Wire			2 mm	0.079 in	0.11 in	2.8 mm
