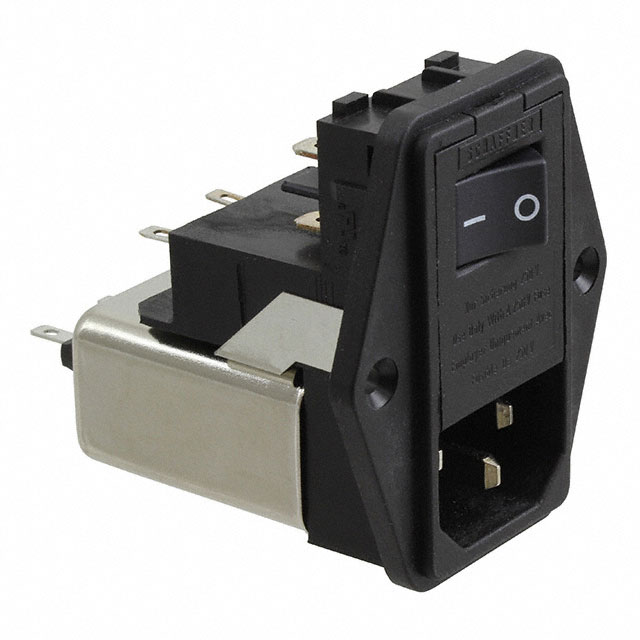

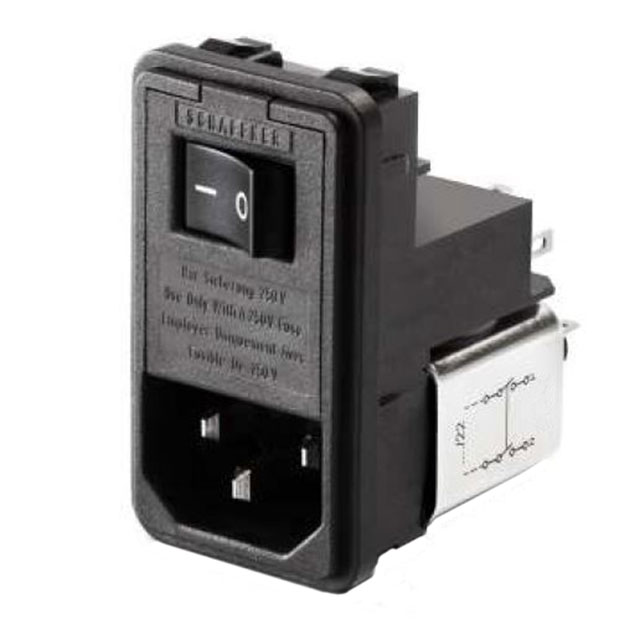

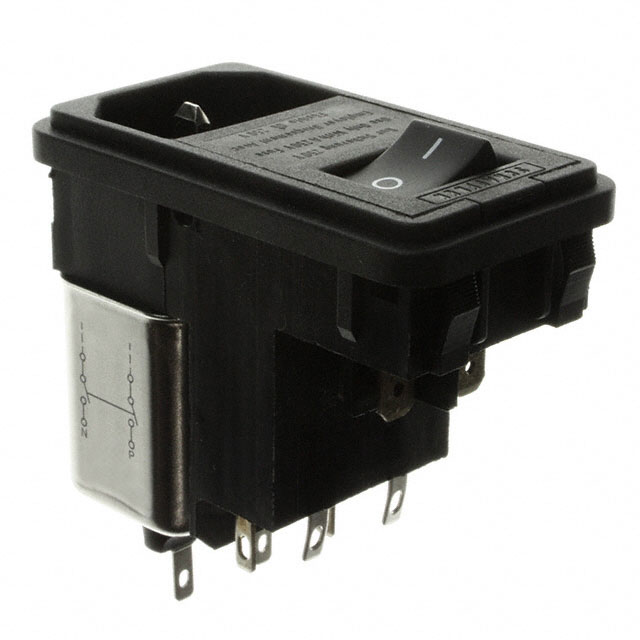

Schaffner FN380 Series

AC Power Entry Modules 6A MED SNAP IN-2FUSE POWER ENTRY MODULES

Manufacturer: TE Connectivity AMP Connectors

Catalog

AC Power Entry Modules 6A MED SNAP IN-2FUSE POWER ENTRY MODULES

Catalog

AC Power Entry Modules 6A MED SNAP IN-2FUSE POWER ENTRY MODULES

...

Part	Connector Style	Ingress Protection	Filter Type	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Cutout Dimensions	Approval Agency	Switch Features	Connector Type	Mounting Type	Current Rating - Filter	Fuse Holder, Drawer	Material Flammability Rating	Accomodates a Fuse	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Termination Style	Voltage - Rated AC (Phase to Phase)	Current	Configuration	Applications	Features
TE Connectivity AMP Connectors FN380-2-22	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial	0.031 "	0.79 mm	0.126 in	3.2 mm	Variable Size	CSA UL VDE	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	2 A	Fuse Holder	UL94 V-2		Solder Eyelet

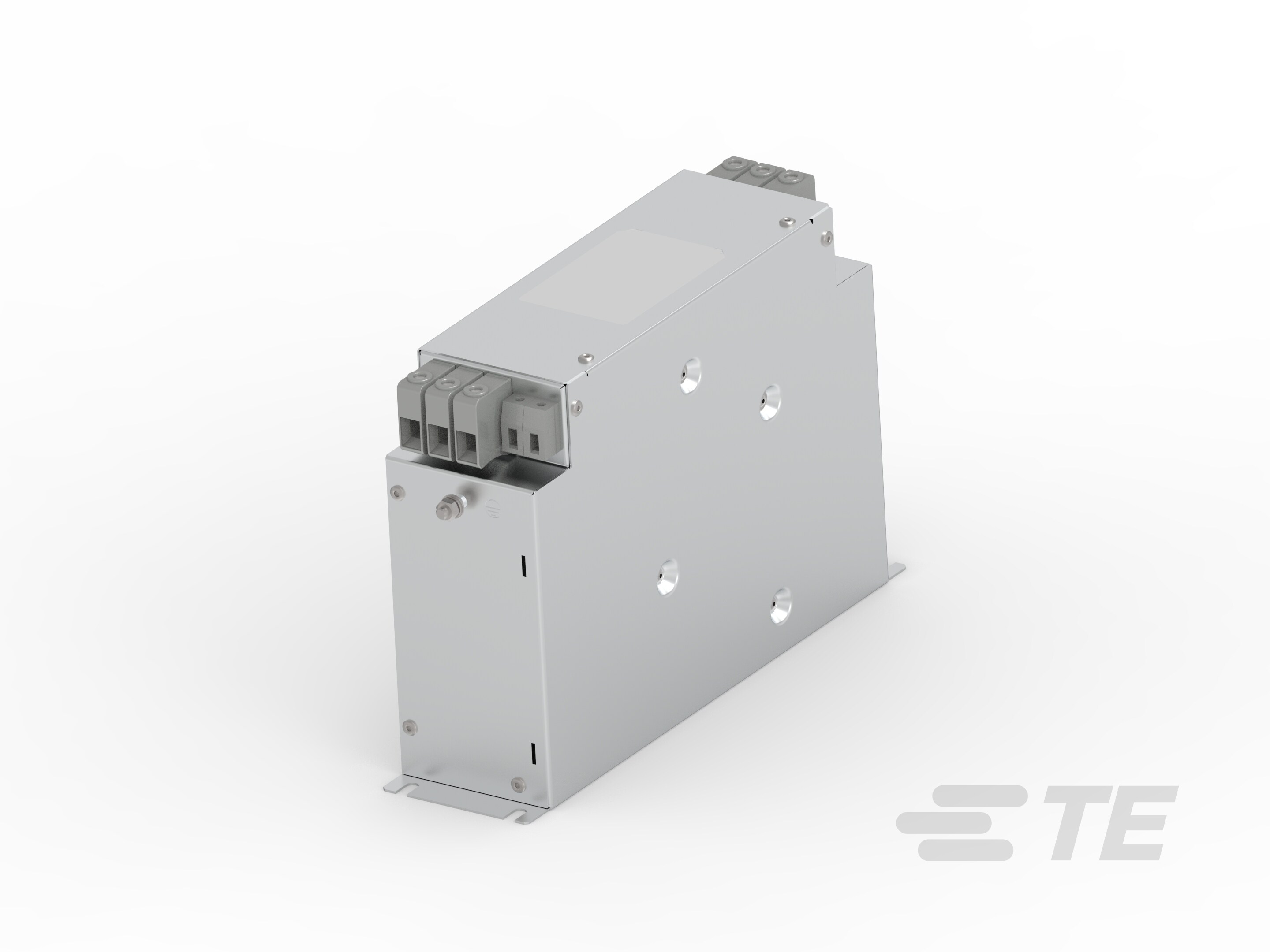

TE Connectivity AMP Connectors FN3840-25-33-C35-R65			Three Phase (Delta)						CE ENEC UR			Chassis Mount						-40 C	100 °C	60 Hz	50 Hz	305 V	Terminal Block	530 V	25 A	Single Stage	Regenerative Motor Drive
TE Connectivity AMP Connectors FN382-2-22	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial	0.031 "	0.79 mm	0.126 in	3.2 mm	Variable Size	CSA UL VDE	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	2 A	Twin Fused	UL94 V-2		Solder Eyelet
TE Connectivity AMP Connectors FN382-2-21	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial	0.031 "	0.79 mm	0.126 in	3.2 mm	Variable Size	CSA UL VDE	Switch On-Off	Receptacle Male Blades - Module	Panel Mount Snap-In	2 A	Twin Fused	UL94 V-2		Solder Eyelet
TE Connectivity AMP Connectors FN389B-4-22	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial Medical	0.031 "	0.79 mm	0.126 in	3.2 mm	Variable Size	CSA UL VDE	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	4 A	Twin Fused	UL94 V-2		Solder Eyelet											Bleed Resistor Front or Rear Side Mount
TE Connectivity AMP Connectors FN389-6-21	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial	0.031 "	0.79 mm	0.126 in	3.2 mm	Variable Size	CSA UL VDE	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	6 A	Twin Fused	UL94 V-2		Solder Eyelet											Front or Rear Side Mount

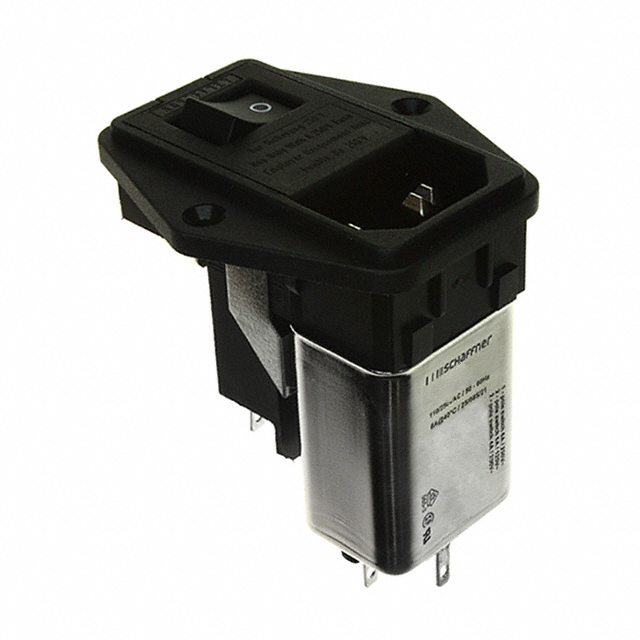

TE Connectivity AMP Connectors FN389B-6-21	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial Medical	0.031 "	0.79 mm	0.126 in	3.2 mm	Variable Size	CSA UL VDE	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	6 A	Twin Fused	UL94 V-2		Solder Eyelet											Bleed Resistor Front or Rear Side Mount
TE Connectivity AMP Connectors FN389B-2-22	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial Medical	0.031 "	0.79 mm	0.126 in	3.2 mm	Variable Size	CSA UL VDE	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	2 A	Twin Fused	UL94 V-2		Solder Eyelet											Bleed Resistor Front or Rear Side Mount
TE Connectivity AMP Connectors FN388B-2-21	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial Medical	0.031 "	0.79 mm	0.126 in	3.2 mm	Variable Size	CSA UL VDE	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	2 A	Twin Fused	UL94 V-2		Solder Eyelet											Bleed Resistor Front or Rear Side Mount
TE Connectivity AMP Connectors FN388-4-22	IEC 320-C14	IP40	Filtered (EMI RFI) - Commercial	0.031 "	0.79 mm	0.126 in	3.2 mm	Variable Size	CSA UL VDE	Switch On-Off	Receptacle Male Blades - Module	Flange Panel Mount	4 A	Twin Fused	UL94 V-2		Solder Eyelet											Front or Rear Side Mount
