PAT-03 Series

Catalog

FIBER OPTIC CBL LC-LC DUPLEX 3M

Part	Color - Cable	Color - Connectors	Operating Temperature [Max]	Operating Temperature [Min]	Return Loss	Insertion Loss	Length - Overall	Length - Overall	Cable Diameter [diameter]	Cable Diameter [diameter]	Cable Type	Fiber Type	1st Connector	Features	2nd Connector	Type	Ratings	Return Loss [Min]	Return Loss [Max]
FiberSource, Inc PAT-03-HH-B-20-D-9	Yellow	Blue	85 °C	-40 C	55 dB	0.3 dB	9.8 '	3 m	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	9/125	LC Duplex	Low Smoke	LC Duplex	Duplex Singlemode	LSZH
FiberSource, Inc PAT-03-HD-B-20-D-9	Yellow	Blue	85 °C	-40 C	65 dB	0.3 dB	9.8 '	3 m	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	9/125	LC/UPC	Low Smoke	SC/APC	Duplex Singlemode	LSZH
FiberSource, Inc PAT-03-CC-B-20-D-9	Yellow	Blue	85 °C	-40 C	55 dB	0.3 dB	9.8 '	3 m	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	9/125	SC Duplex	Low Smoke	SC Duplex	Duplex Singlemode	LSZH
FiberSource, Inc PAT-03-DD-B-20-D-9	Yellow	Blue	85 °C	-40 C	65 dB	0.3 dB	9.8 '	3 m	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	9/125	SC Duplex	Low Smoke	SC Duplex	Duplex Singlemode	LSZH
FiberSource, Inc PAT-03-HC-B-20-D-9	Yellow	Blue	85 °C	-40 C	55 dB	0.3 dB	9.8 '	3 m	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	9/125	LC/UPC	Low Smoke	SC/UPC	Duplex Singlemode	LSZH
FiberSource, Inc PAT-03-NN-F-20-D-A		Blue	85 °C	-40 C			9.8 '	3 m	0.08 "	2 mm		50/125	LC Duplex		LC Duplex	Duplex Multimode OM3

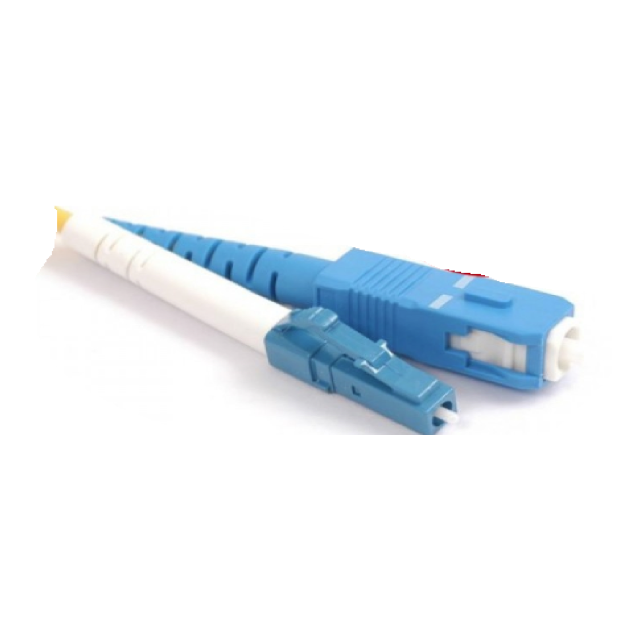

FiberSource, Inc PAT-03-HC-B-20-S-9	Yellow		85 °C	-40 C		0.2 dB	9.8 '	3 m	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	9/125	LC/UPC	Low Smoke	SC/UPC	Simplex Singlemode	LSZH	55 dB	65 dB
FiberSource, Inc PAT-03-DC-B-20-D-9	Yellow	Blue	85 °C	-40 C	65 dB	0.3 dB	9.8 '	3 m	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	9/125	SC Duplex	Low Smoke	SC Duplex	Duplex Singlemode	LSZH
FiberSource, Inc PAT-03-JD-B-20-D-9	Yellow	Blue	85 °C	-40 C	65 dB	0.3 dB	9.8 '	3 m	0.08 "	2 mm	Bend Insensitive Fiber (BIF)	9/125	LC/APC	Low Smoke	SC/APC	Duplex Singlemode	LSZH
FiberSource, Inc PAT-03-NL-F-20-D-A		Blue	85 °C	-40 C			9.8 '	3 m	0.08 "	2 mm		50/125	LC Duplex		SC Duplex	Duplex Multimode OM3
