2SC5226A Series

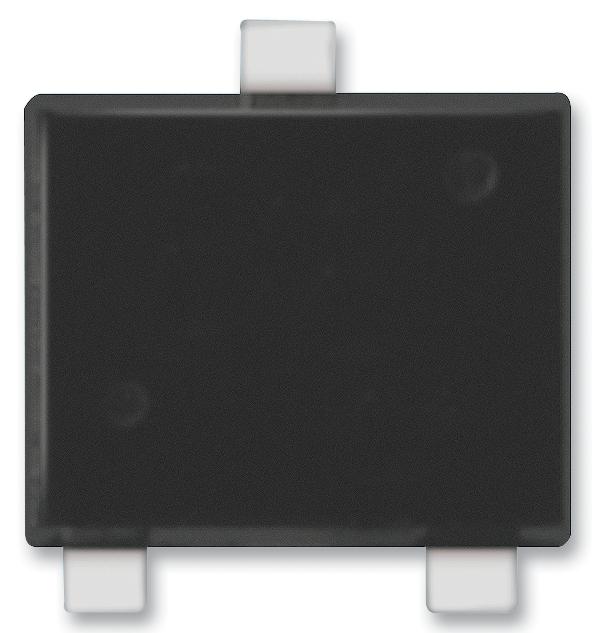

RF Transistor, NPN Single MCP, 10 V, 70 mA, fT = 7 GHz

Catalog

RF Transistor, NPN Single MCP, 10 V, 70 mA, fT = 7 GHz

Part	Mounting Type	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Current - Collector (Ic) (Max) [Max]	Transistor Type	Frequency - Transition	Operating Temperature	Voltage - Collector Emitter Breakdown (Max) [Max]	Gain	Noise Figure (dB Typ @ f)
ON Semiconductor 2SC5226A-5-TL-E	Surface Mount	3-MCP	135	SC-70 SOT-323	70 mA	NPN	7 GHz	150 °C	10 V	12 dBi	1 dB
ON Semiconductor 2SC5226A-4-TL-E	Surface Mount			SC-70 SOT-323	70 mA	NPN	7 GHz	150 °C	10 V	12 dBi	1 dB

RF Transistor, NPN Single MCP, 10 V, 70 mA, fT = 7 GHz

• Low-noise : NF=1.0dB typ (f=1GHz)

• High gain (Forward Transfer Gain: 12dB typ at f=1.0GHz)

• High cut-off frequency : fT=7GHz typ

2SC5226A is RF Transistor, 10 V, 70 mA, fT= 7 GHz, NPN Single MCP for VHF to UHF Wide-Band Low-Noise Amplifier Applications.
