LP0125C Series
Manufacturer: NKK Switches
Beta
⌘K
PUSHBUTTON SWITCHES SWITCH PUSHBUTTON
| Part | Electrical Life | Mechanical Life | Panel Cutout Dimensions [diameter] | Mounting Type | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Actuator Marking | Type | Current Rating (Amps) | Termination Style | Actuator Type | Switch Function | Color - Actuator/Cap | Circuit | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

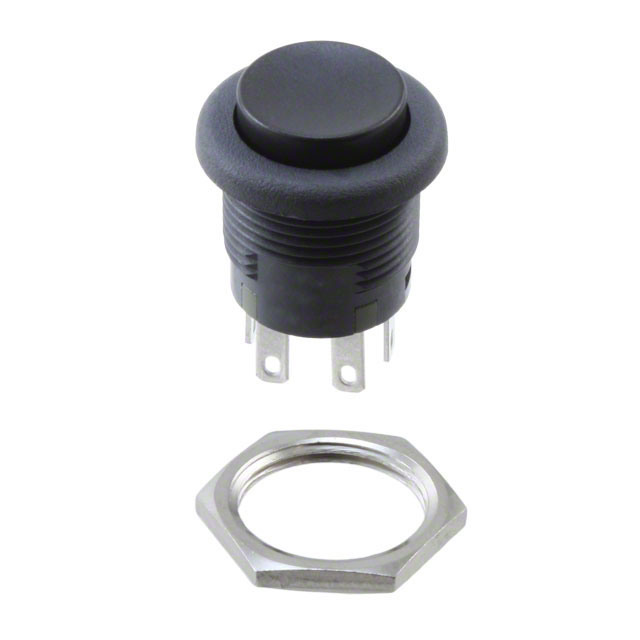

 NKK Switches | 50000 Cycles | 500000 Cycles | 16 mm | Panel Mount Front | 125 V | -25 °C | 70 °C | 30 V | No Marking | Standard | 3 A | Solder Quick Connect - 0.110" (2.8mm) | Button Round | On-Mom | Black | DPDT | ||

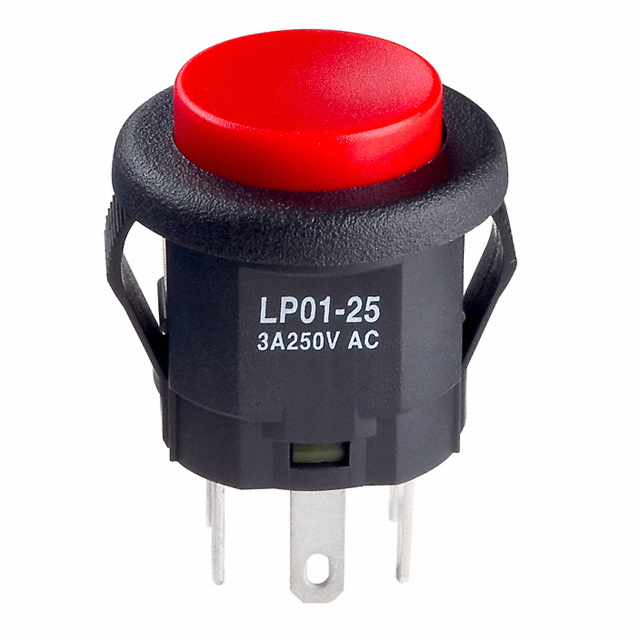

 NKK Switches | 50000 Cycles | 500000 Cycles | 17.3 mm | Panel Mount Snap-In | 125 V | -25 °C | 70 °C | 30 V | No Marking | Standard | 3 A | Solder Quick Connect - 0.110" (2.8mm) | Button Round | On-Mom | Red | DPDT | ||

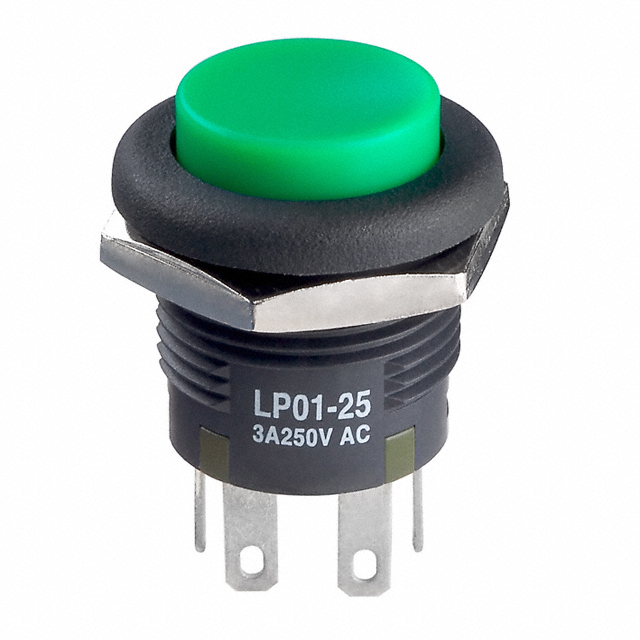

 NKK Switches | 50000 Cycles | 500000 Cycles | 16 mm | Panel Mount Front | 125 V | -25 °C | 70 °C | 30 V | No Marking | Standard | 3 A | Solder Quick Connect - 0.110" (2.8mm) | Button Round | On-Mom | Green | DPDT | ||
 NKK Switches | 50000 Cycles | 500000 Cycles | 16 mm | Panel Mount Front | 125 V | -25 °C | 70 °C | 30 V | No Marking | Standard | 3 A | Solder Quick Connect - 0.110" (2.8mm) | Button Round | On-Mom | Black | DPDT | ||

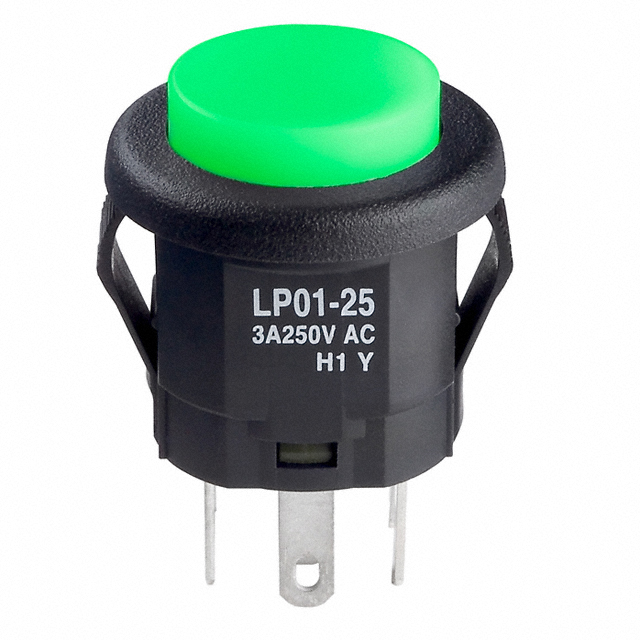

 NKK Switches | 50000 Cycles | 500000 Cycles | 17.3 mm | Panel Mount Snap-In | 125 V | -10 °C | 50 °C | 30 V | No Marking | Illuminated Standard | 3 A | Solder Quick Connect - 0.110" (2.8mm) | Button Round | On-Mom | White | DPDT | 2.1 VDC | Green LED |

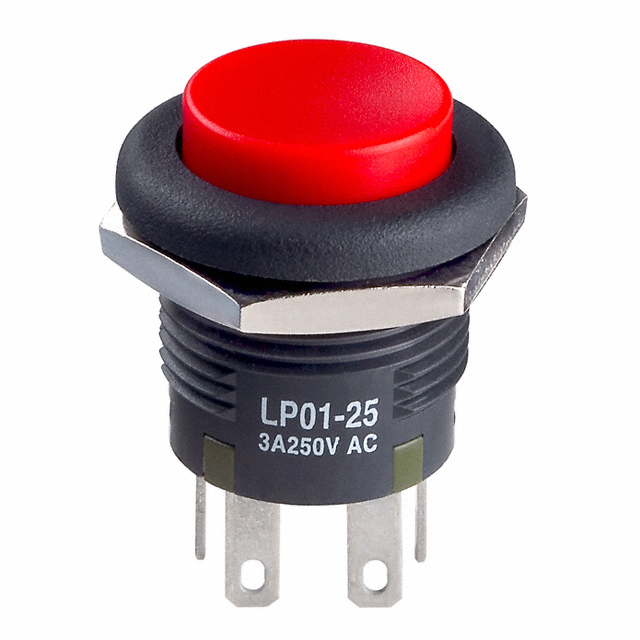

 NKK Switches | 50000 Cycles | 500000 Cycles | 16 mm | Panel Mount Front | 125 V | -25 °C | 70 °C | 30 V | No Marking | Standard | 3 A | Solder Quick Connect - 0.110" (2.8mm) | Button Round | On-Mom | Red | DPDT | ||
 NKK Switches | 50000 Cycles | 500000 Cycles | 17.3 mm | Panel Mount Snap-In | 125 V | -25 °C | 70 °C | 30 V | No Marking | Standard | 3 A | Solder Quick Connect - 0.110" (2.8mm) | Button Round | On-Mom | Black | DPDT | ||
 NKK Switches | 50000 Cycles | 500000 Cycles | 17.3 mm | Panel Mount Snap-In | 125 V | -10 °C | 50 °C | 30 V | No Marking | Illuminated Standard | 3 A | Solder Quick Connect - 0.110" (2.8mm) | Button Round | On-Mom | White | DPDT | 2.05 VDC | LED Red |
