TXT-V86 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

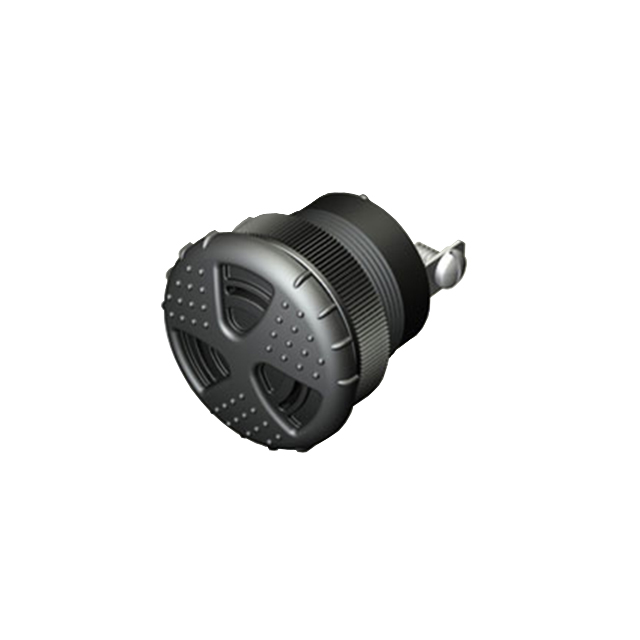

BUZZER PIEZO 35.8MM PNL MNT
| Part | Operating Mode | Approval Agency | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Port Location | Technology | Frequency | Voltage Range [Min] | Voltage Range [Max] | Sound Pressure Level (SPL) | Ingress Protection | Current - Supply [Max] | Current - Supply [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Input Type | Driver Circuitry | Termination | Termination | Termination | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Staccato Tone | UL UR | 35.8 mm | 1.409 in | Panel Mount | Top | Piezo | 2.9 kHz | 5 VDC | 15 V | 103 dB | IP68 - Dust Tight Waterproof | 50 mA | 10 mA | 1.25 " | 31.75 mm | DC | Indicator Internally Driven | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | |
 Floyd Bell Inc | Staccato Tone | UL UR | 35.81 mm | Panel Mount | Top | Piezo | 2.9 kHz | 5 VDC | 15 V | 103 dB | IP68 - Dust Tight Waterproof | 50 mA | 10 mA | 1.25 " | 31.75 mm | DC | Indicator Internally Driven | 0.25 " | Quick Connect Tab | 6.35 mm | 1.41 in | |
 Floyd Bell Inc | Staccato Tone | UL UR | 35.81 mm | Panel Mount | Top | Piezo | 2.9 kHz | 5 VDC | 15 V | 103 dB | IP68 - Dust Tight Waterproof | 50 mA | 10 mA | 1.25 " | 31.75 mm | DC | Indicator Internally Driven | Wire Leads | 1.41 in |
