0900-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

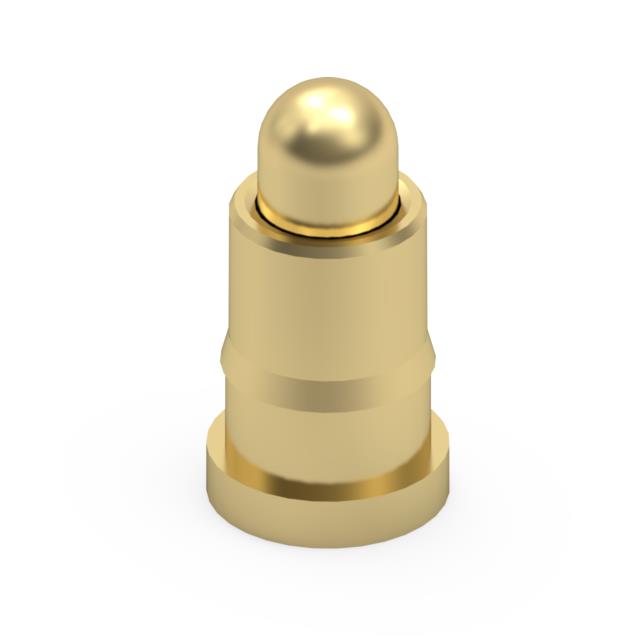

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current Rating (Amps) | Plunger Size [diameter] | Plunger Size [diameter] | Pad Layout Dimension | Pad Layout Dimension | Contact Material | Minimum Working Height | Minimum Working Height | Operating Force - Mid Compression | Contact Finish Thickness | Contact Finish Thickness | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish | Contact Type | Mating Cycles | Operating Force - Initial | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Surface Mount | 5.2 A | 0.042 in | 1.07 mm | 0.072 in | 1.83 mm | Brass Alloy | 2.5 mm | 0.098 in | 60 gf | 20 µin | 0.51 µm | 0.137 in | 3.48 mm | Gold | Sleeve & Plunger (Pogo Pins) | 1000000 | 15 gf | 3 mm | 0.118 in |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Surface Mount | 2 A | 0.042 in | 1.07 mm | 0.072 in | 1.83 mm | Copper Alloy | 2.5 mm | 0.098 in | 20 µin | 0.51 µm | 0.137 in | 3.48 mm | Gold | Sleeve & Plunger (Pogo Pins) | 1000000 | 3 mm | 0.118 in | ||
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Surface Mount | 2 A | 0.042 in | 1.07 mm | 0.072 in | 1.83 mm | Copper Alloy | 2.5 mm | 0.098 in | 60 gf | 20 µin | 0.51 µm | 0.137 in | 3.48 mm | Gold | Sleeve & Plunger (Pogo Pins) | 100000 | 25 gf | 3 mm | 0.118 in |
