505432 Series

Manufacturer: Molex

Catalog

1.25MM PITCH, MICRO-LOCK PLUS RECEPTACLE CRIMP HOUSING, DUAL ROW, POSITIVE LOCK, 42 CIRCUITS, BLACK

Part	Note	Color	Pitch	Pitch	Fastening Type	Insulation Material	Mounting Type	Number of Rows [custom]	Connector Type	Number of Positions	Contact Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]

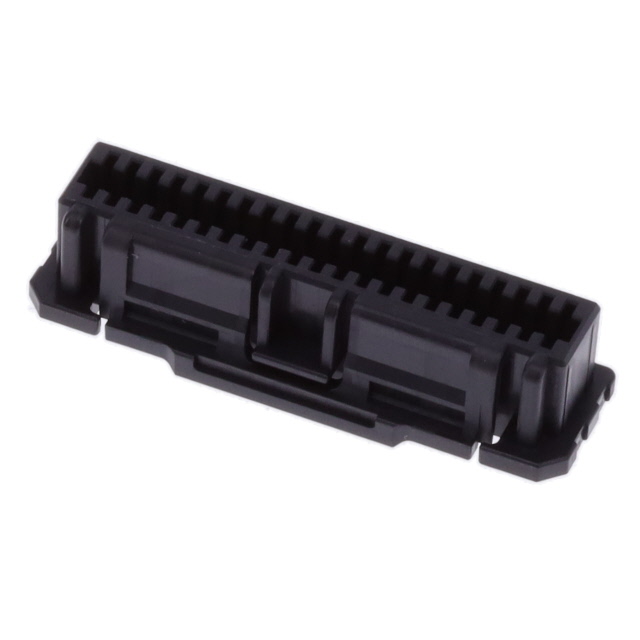

Molex 5054324201	Contacts Not Included	Black	0.049 in	1.25 mm	Latch Holder	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	2	Receptacle	42	Crimp	Female Socket	-40 C	105 ░C
Molex 5054324001		Black	0.049 in	1.25 mm	Latch Holder	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	2	Receptacle	40	Crimp	Female Socket	-40 C	105 ░C
Molex 5054322000		Natural	0.049 in	1.25 mm	Locking Ramp	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)	2	Receptacle	20	Crimp	Female Socket	-40 C	105 ░C
Molex 5054322600		Natural	0.049 in	1.25 mm	Locking Ramp	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)	2	Receptacle	26	Crimp	Female Socket	-40 C	105 ░C
Molex 5054323801		Black	0.049 in	1.25 mm	Latch Holder	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	2	Receptacle	38	Crimp	Female Socket	-40 C	105 ░C
Molex 5054321601		Black	0.049 in	1.25 mm	Latch Holder	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	2	Receptacle	16	Crimp	Female Socket	-40 C	105 ░C
Molex 5054321000		Natural	0.049 in	1.25 mm	Locking Ramp	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)	2	Receptacle	10	Crimp	Female Socket	-40 C	105 ░C

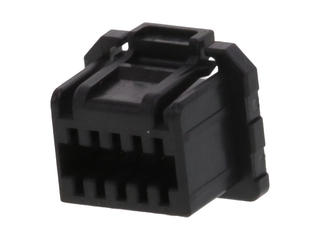

Molex 5054321001	Contacts Not Included	Black	0.049 in	1.25 mm	Latch Holder	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	2	Receptacle	10	Crimp	Female Socket	-40 C	105 ░C
Molex 5054322800		Natural	0.049 in	1.25 mm	Locking Ramp	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)	2	Receptacle	28	Crimp	Female Socket	-40 C	105 ░C
Molex 5054323404		Blue	0.049 in	1.25 mm	Locking Ramp	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)	2	Receptacle		Crimp	Female Socket	-40 C	105 ░C	34
