P2023Y Series

Catalog

SWITCH ROCKER DPDT 10A 125V

Part	Electrical Life	Mechanical Life	Actuator Marking	Mounting Type	Actuator Type	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Voltage Rating - AC	Current Rating (Amps)	Approval Agency	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches P2023YZ	25000 Steps	50000 Cycles	Varies by Cap	Flange Panel Mount	Actuator Arm Cap Required	On-Off-On	16 mm	28.5 mm	DPDT	125 V	10 A	CSA UL VDE	Quick Connect	85 °C	-10 °C

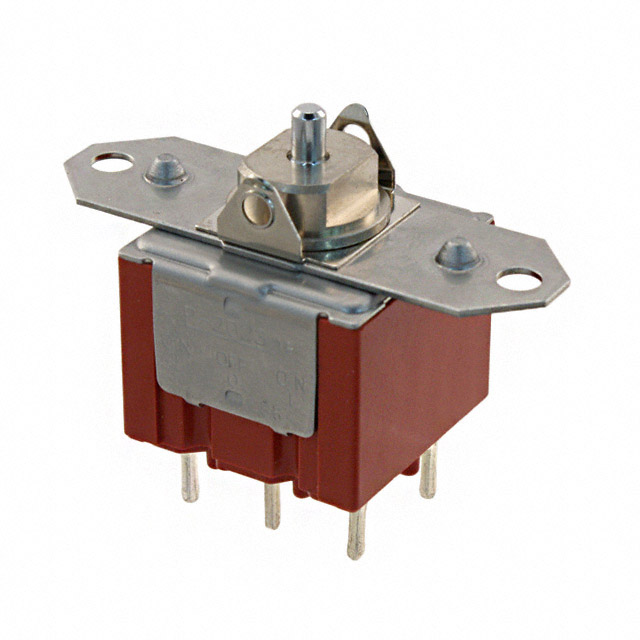

NKK Switches P2023YP	25000 Steps	50000 Cycles	Varies by Cap	Flange Panel Mount	Actuator Arm Cap Required	On-Off-On	16 mm	28.5 mm	DPDT	125 V	10 A	CSA UL VDE	PC Pin	85 °C	-10 °C

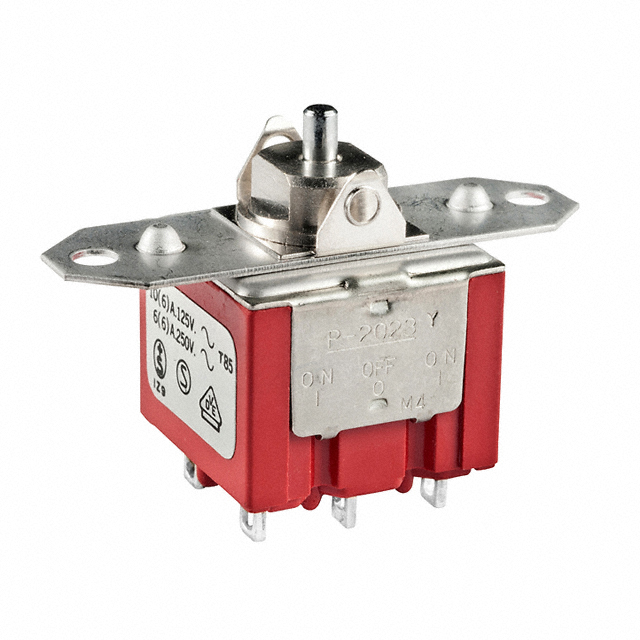

NKK Switches P2023Y	25000 Steps	50000 Cycles	Varies by Cap	Flange Panel Mount	Actuator Arm Cap Required	On-Off-On	16 mm	28.5 mm	DPDT	125 V	10 A	CSA UL VDE	Solder Lug	85 °C	-10 °C
