EN2C6M Series

Catalog

CIRCULAR CONNECTOR, EN2 SERIES, 6 CONTACTS, THERMOPLASTIC BODY

Part	Fastening Type	Ingress Protection	Orientation	Primary Material	Voltage Rating	Mounting Type	Shielding	Termination	Number of Positions	Connector Type	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Color	Contact Material	Material Flammability Rating	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Features	Applications	Contact Finish - Mating	Insert Material
SWITCHCRAFT/CONXALL EN2C6M26G2W	Bayonet Lock	IP66 IP67 IP68	Keyed	Plastic	125 VAC	Free Hanging (In-Line)	Unshielded	Crimp Solder Cup	6	Plug Male Pins	0.18 "	4.57 mm	3.56 mm	0.14 in	Black	Copper Alloy	UL94 V-0	Thermoplastic	85 °C	-40 C	Backshell Coupling Nut Winged	Communication Systems Industrial Marine Medical	Gold	Elastomer
SWITCHCRAFT/CONXALL EN2C6M26G3	Bayonet Lock	IP66 IP67 IP68	Keyed	Plastic	125 VAC	Free Hanging (In-Line)	Unshielded	Crimp Solder Cup	6	Plug Male Pins	0.22 in	5.59 mm	4.57 mm	0.18 "	Black	Copper Alloy	UL94 V-0	Thermoplastic	85 °C	-40 C	Backshell Coupling Nut	Communication Systems Industrial Marine Medical	Gold	Elastomer
SWITCHCRAFT/CONXALL EN2C6M26G1	Bayonet Lock	IP66 IP67 IP68	Keyed	Plastic	125 VAC	Free Hanging (In-Line)	Unshielded	Crimp Solder Cup	6	Plug Male Pins	0.14 in	3.56 mm	2.54 mm	0.1 "	Black	Copper Alloy	UL94 V-0	Thermoplastic	85 °C	-40 C	Backshell Coupling Nut	Communication Systems Industrial Marine Medical	Gold	Elastomer
SWITCHCRAFT/CONXALL EN2C6M26DC	Bayonet Lock	IP66 IP67 IP68	Keyed	Plastic	125 VAC	Free Hanging (In-Line)	Unshielded	Crimp Solder Cup	6	Plug Male Pins					Black	Copper Alloy	UL94 V-0	Thermoplastic	85 °C	-40 C	Backshell Coupling Nut	Communication Systems Industrial Marine Medical	Gold	Elastomer
SWITCHCRAFT/CONXALL EN2C6M26G3W	Bayonet Lock	IP66 IP67 IP68	Keyed	Plastic	125 VAC	Free Hanging (In-Line)	Unshielded	Crimp Solder Cup	6	Plug Male Pins	0.22 in	5.59 mm	4.57 mm	0.18 "	Black	Copper Alloy	UL94 V-0	Thermoplastic	85 °C	-40 C	Backshell Coupling Nut Winged	Communication Systems Industrial Marine Medical	Gold	Elastomer

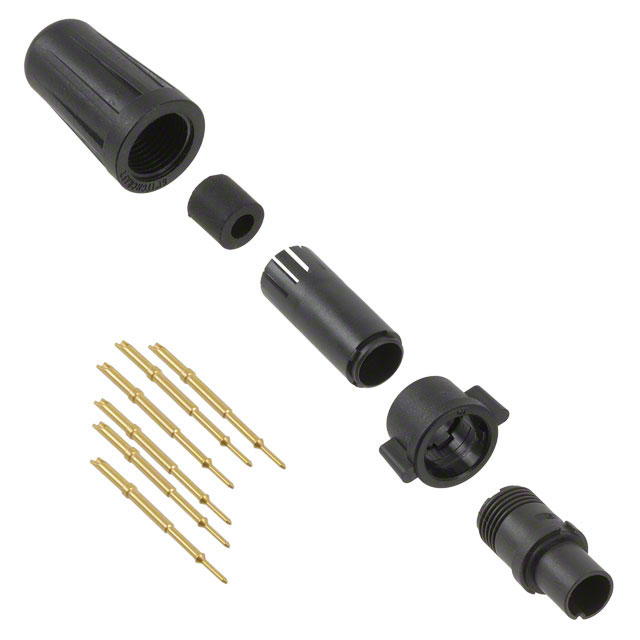

SWITCHCRAFT/CONXALL EN2C6M26G1W	Bayonet Lock	IP66 IP67 IP68	Keyed	Plastic	125 VAC	Free Hanging (In-Line)	Unshielded	Crimp Solder Cup	6	Plug Male Pins	0.14 in	3.56 mm	2.54 mm	0.1 "	Black	Copper Alloy	UL94 V-0	Thermoplastic	85 °C	-40 C	Backshell Coupling Nut Winged	Communication Systems Industrial Marine Medical	Gold	Elastomer
