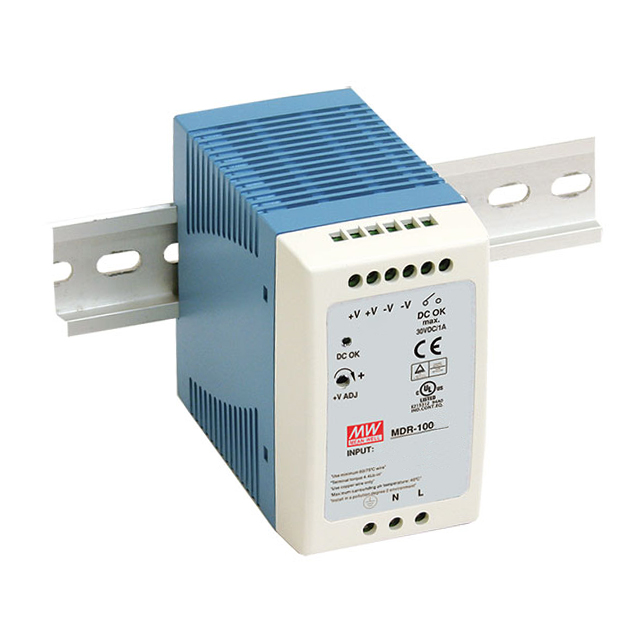

MDR-100 Series

Catalog

AC/DC DIN RAIL SUPPLY 48V 96W

Part	Minimum Load Required	Features	Power (Watts)	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Approval Agency	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Voltage - Isolation	Efficiency	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs
MEAN WELL USA Inc. MDR-100-48		Adjustable Output Universal Input	96 W	370 V	120 V	2 A	264 VAC	85 VAC	CCC cURus TUV	AC or DC	-10 °C	60 °C	48 V	3000 V	87 %	Industrial ITE (Commercial)	55 mm	3.94 in	90 mm	3.54 "	2.17 "	100 mm	1
MEAN WELL USA Inc. MDR-100-12		Adjustable Output Universal Input	90 W	370 V	120 V	7.5 A	264 VAC	85 VAC	CCC cURus TUV	AC or DC	-10 °C	60 °C	12 V	3000 V	83 %	Industrial ITE (Commercial)	55 mm	3.94 in	90 mm	3.54 "	2.17 "	100 mm	1
