A720V Series
Manufacturer: KEMET
Beta
⌘K

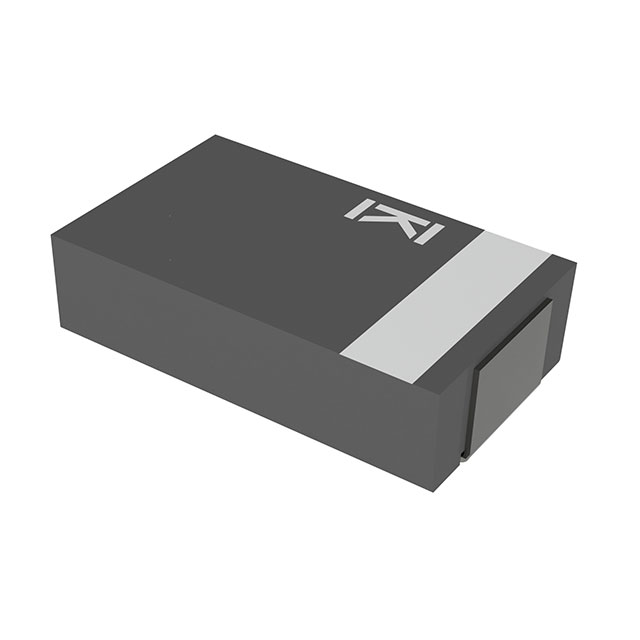

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 470 ΜF, 2 V, 2917 [7343 METRIC], 0.003 OHM
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | ESR (Equivalent Series Resistance) | Mounting Type | Lifetime @ Temp. | Voltage - Rated | Ripple Current @ High Frequency | Package / Case | Capacitance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 2.1 mm | 0.083 in | General Purpose | -55 C | 105 ░C | 20 % | 3 mOhm | Surface Mount | 2000 Hrs | 2 VDC | 11.69 A | 2917 (7343 Metric) | 470 µF | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | Polymer |
KEMET | 2.1 mm | 0.083 in | General Purpose | -55 C | 105 ░C | 20 % | 4.5 mOhms | Surface Mount | 2000 Hrs | 2.5 V | 9.54 A | 2917 (7343 Metric) | 470 µF | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | Polymer |
 KEMET | 2.1 mm | 0.083 in | General Purpose | -55 C | 105 ░C | 20 % | 3 mOhm | Surface Mount | 2000 Hrs | 2.5 V | 11.69 A | 2917 (7343 Metric) | 470 µF | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | Polymer |
KEMET | 2.1 mm | 0.083 in | General Purpose | -55 C | 105 ░C | 20 % | 6 mOhms | Surface Mount | 2000 Hrs | 2 VDC | 8.26 A | 2917 (7343 Metric) | 470 µF | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | Polymer |
