G800LE3 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

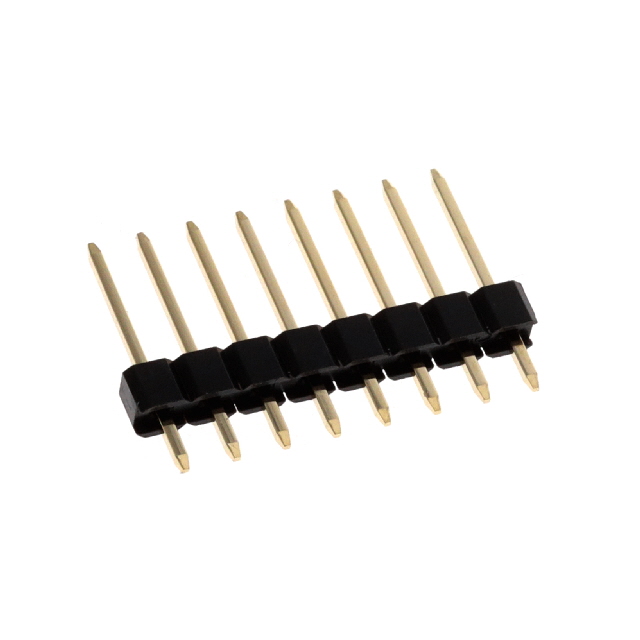

PIN HEADER 2.54MM PITCH STR DIP,
| Part | Insulation Material | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Connector Type | Number of Positions | Number of Rows | Material Flammability Rating | Contact Type | Number of Positions Loaded | Termination | Shrouding | Contact Finish Thickness - Mating | Insulation Color | Mounting Type | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Shape | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Mating | Contact Material | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Nylon 6T Polyamide (PA6T) Thermoplastic | 2 | 0.1 " | 2.54 mm | Header | 8 | 1 | UL94 V-0 | Male Pin | All | Solder | Unshrouded | Flash | Black | Through Hole | 3 A | 0.319 in | 8.1 mm | Push-Pull | Square | Gold | 0.122 in | 3.1 mm | Gold | Copper Alloy | 0.098 " | 2.5 mm | 105 ░C | -25 °C |
