PKES Series

Catalog

KNOB FLUTED W/SKIRT 0.250" PLAST

Part	Diameter [diameter]	Diameter [diameter]	Diameter	Height	Height	Features	Indicator	Color	Type	Shaft Size	Shaft Size	Style	Material
TE Connectivity AMP Connectors PKES140B1/4	1.37 in 1.5 in	34.9 mm 38.1 mm	Skirt	17.6 mm	0.693 in	6-32 Set Screw	Line on Side and Skirt	Black	Fluted	6.35 mm	0.25 in	Cylindrical with Skirt	Plastic
TE Connectivity AMP Connectors PKES120B1/4	1.16 in 1.3 in	29.4 mm 33 mm		15.95 mm	0.628 in	6-32 Set Screw	Line on Side and Skirt	Black	Fluted	6.35 mm	0.25 in	Cylindrical with Skirt	Plastic
TE Connectivity AMP Connectors PKES150B1/4	1.55 in 1.77 in	39.4 mm 44.9 mm		21.1 mm	0.831 in	6-32 Set Screw	Line on Side and Skirt	Black	Fluted	6.35 mm	0.25 in	Cylindrical with Skirt	Plastic

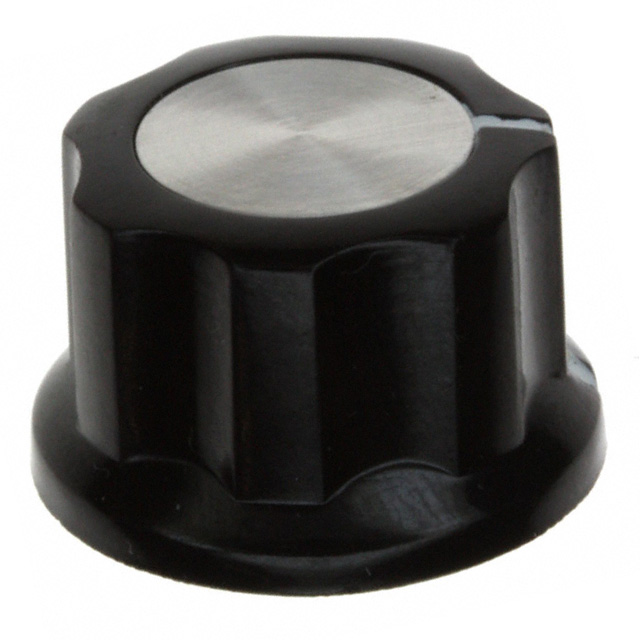

TE Connectivity AMP Connectors PKES70B1/4	0.744 in 0.855 in	18.9 mm 21.7 mm		13.36 mm	0.526 in	6-32 Set Screw	Line on Side and Skirt	Black	Fluted	6.35 mm	0.25 in	Cylindrical with Skirt	Plastic

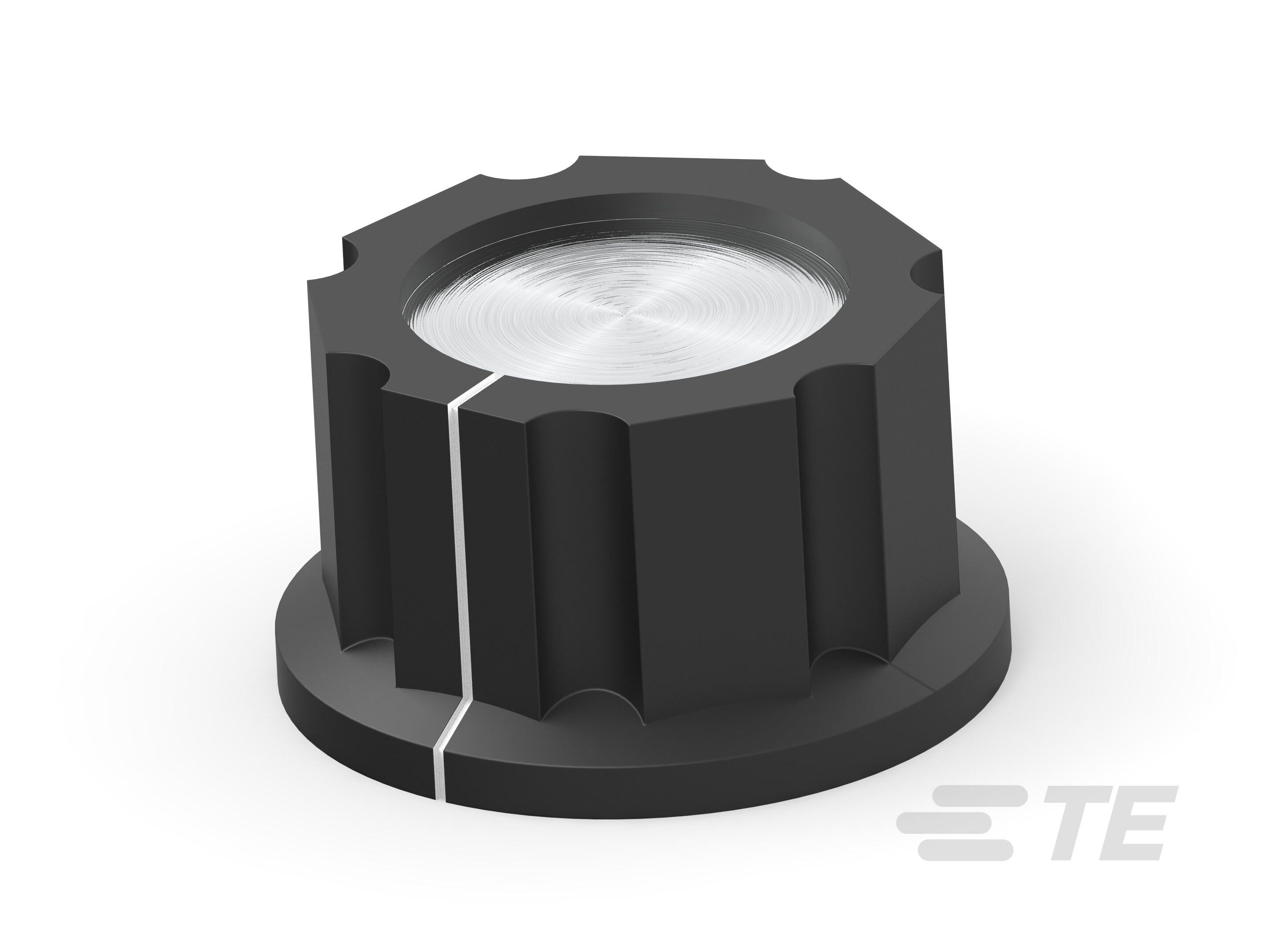

TE Connectivity AMP Connectors PKES90B1/4	0.889 in 1.01 in	22.58 mm 25.7 mm		14.48 mm	0.57 in	6-32 Set Screw	Line on Side and Skirt	Black	Fluted	6.35 mm	0.25 in	Cylindrical with Skirt	Plastic
