2307706 Series

Catalog

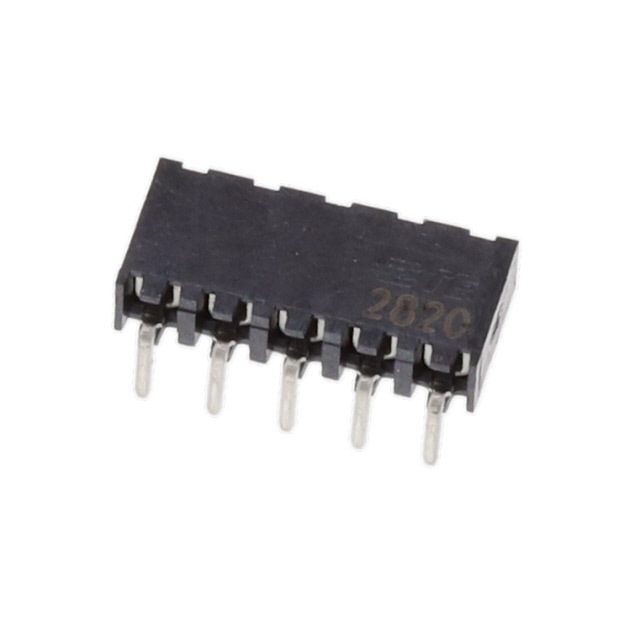

BOARD CONNECTOR, 5 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE

Part	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post	Contact Material	Mounting Type	Voltage Rating	Contact Shape	Fastening Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Connector Type	Insulation Height [z]	Insulation Height [z]	Insulation Material	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating [x]	Pitch - Mating [x]
TE Connectivity Raychem Cable Protection 2307706-5	UL94 V-0	All	Tin	Phosphor Bronze	Through Hole Right Angle	125 VDC	Square	Push-Pull	Solder	3 µm	118.1 µin	1	15 µin	0.38 µm	Gold	Receptacle	0.08 in	2.03 mm	Liquid Crystal Polymer (LCP)	Black	0.083 in	2.11 mm	Female Socket	2 A	125 °C	-40 °C	0.079 in	2 mm
