125-0701 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CONN SMPM PLUG 50OHM END LAUNCH
| Part | Center Contact Material | Impedance | Connector Style | Shield Termination | Frequency - Max | Fastening Type | Features | Contact Termination | Mounting Type | Connector Type | Number of Ports | Housing Color | Mating Cycles | Dielectric Material | Operating Temperature (Min) | Operating Temperature (Max) | Body Material | Body Finish | Center Contact Plating | Voltage Rating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

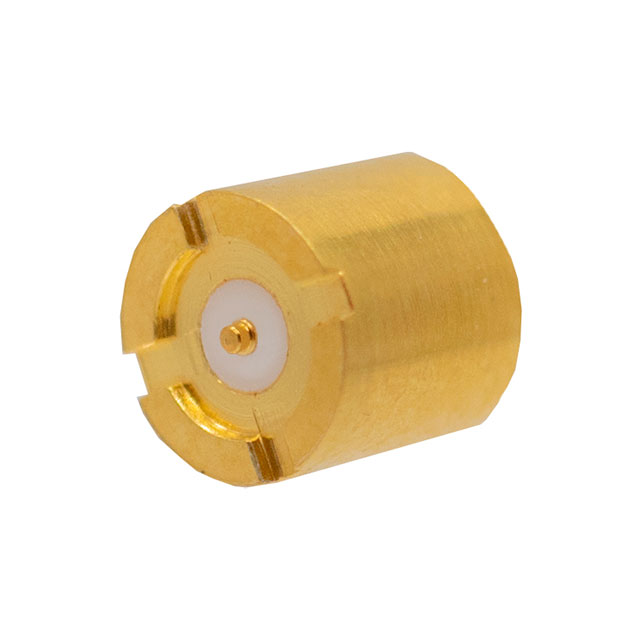

 Cinch Connectivity Solutions Johnson | Beryllium Copper | 50 Ohm | SMPM | Solder | 26.5 GHz | Snap-On | Full Detent | Solder | Board Edge End Launch | Male Pin Plug | 1 | Gold | 100 cycles | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Beryllium Copper | Gold | Gold | 325 V | |

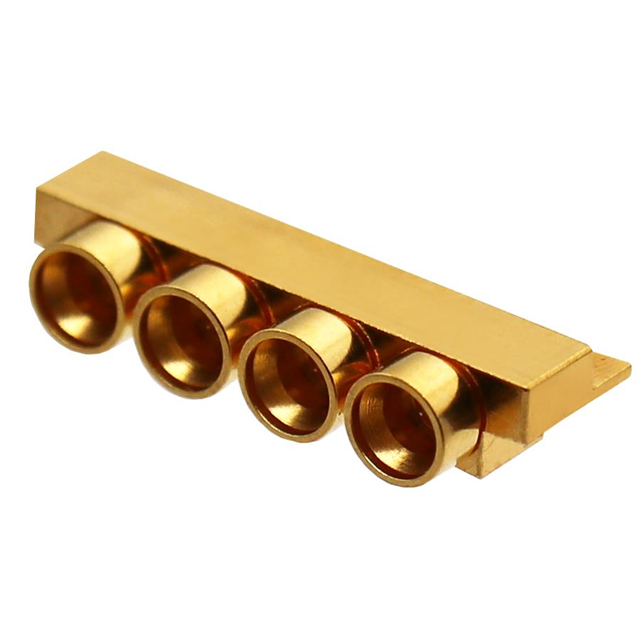

 Cinch Connectivity Solutions Johnson | Beryllium Copper | 50 Ohm | SMPM | Solder | 65 GHz | Snap-On | Full Detent | Solder | Board Edge Cutout Surface Mount | Male Pin Plug | 4 | Gold | 100 cycles | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Beryllium Copper Brass | Gold | Gold | 325 V | |

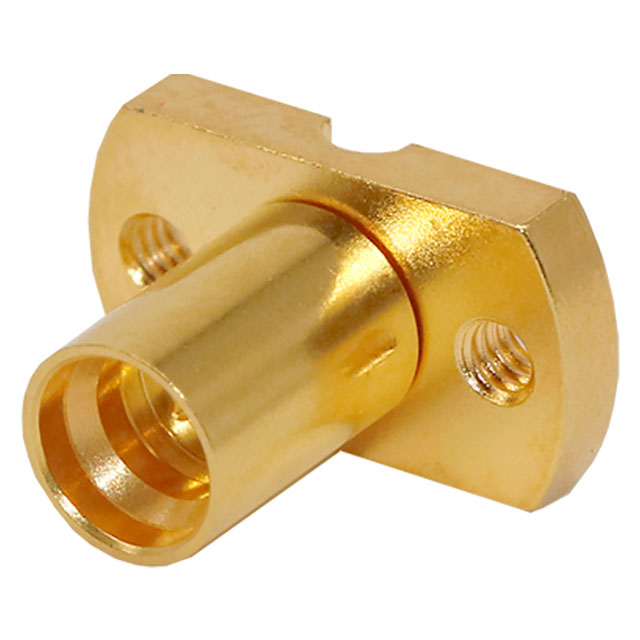

 Cinch Connectivity Solutions Johnson | Beryllium Copper | 50 Ohm | SMPM | Compression | 65 GHz | Snap-On | Full Detent | Surface Mount | Jack Male Pin | 1 | Gold | 500 cycles | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Beryllium Copper Brass | Gold | Gold | 325 V | Flange | |

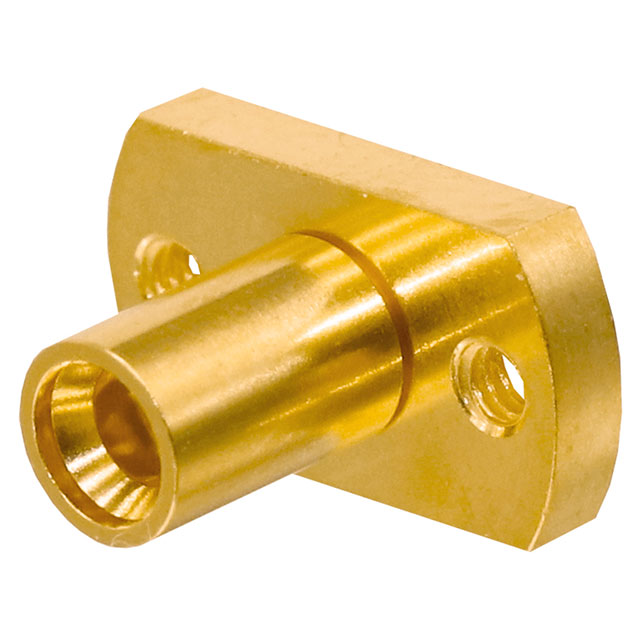

 Cinch Connectivity Solutions Johnson | Beryllium Copper | 50 Ohm | SMPM | Compression | 65 GHz | Snap-On | Full Detent | Surface Mount | Jack Male Pin | 1 | Gold | 500 cycles | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Beryllium Copper Brass | Gold | Gold | 325 V | Flange | |

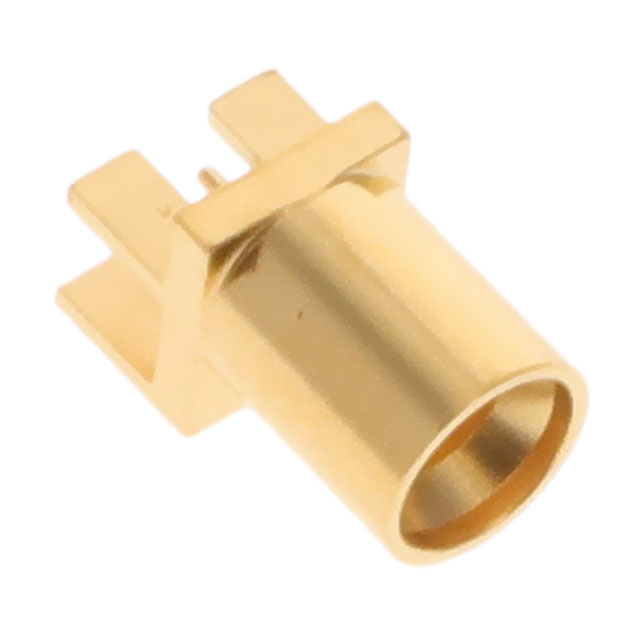

 Cinch Connectivity Solutions Johnson | Beryllium Copper | 50 Ohm | SMPM | Solder | 26.5 GHz | Snap-On | Full Detent | Solder | Surface Mount | Male Pin Plug | 1 | Gold | 100 cycles | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Beryllium Copper | Gold | Gold | 325 V |
