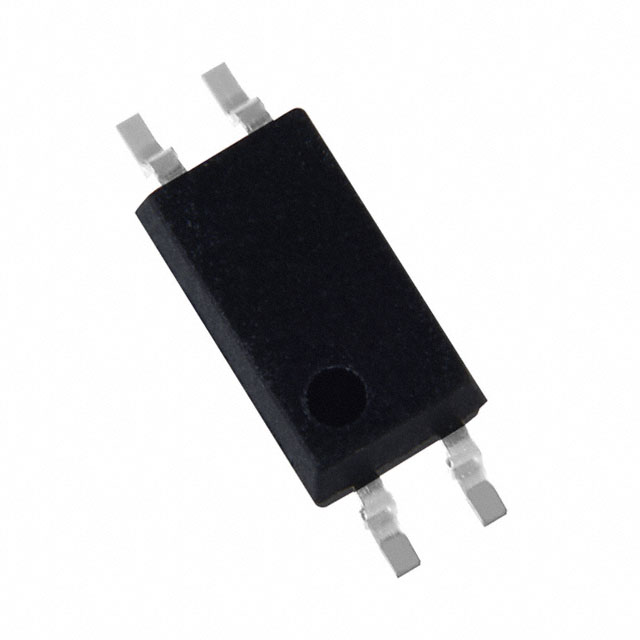

RV1S2752 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
PS9XPS8X
| Part | Voltage - Isolation | Qualification | Current Transfer Ratio (Min) | Voltage - Output (Max) [Max] | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Input Type | Voltage - Forward (Vf) (Typ) | Grade | Current - Output / Channel [custom] | Number of Channels [custom] | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Package / Case | Vce Saturation (Max) [Max] | Current Transfer Ratio (Max) | Current - DC Forward (If) (Max) [Max] | Turn On / Turn Off Time (Typ) [custom] | Turn On / Turn Off Time (Typ) [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 3750 Vrms | AEC-Q100 | 200 % | 40 V | Transistor | -40 C | 135 °C | DC | 1.65 V | Automotive | 50 mA | 1 | 120 µs | 8 µs | 4-SMD Gull Wing | 300 mV | 850 % | 25 mA | 150 µs | 10 µs | Surface Mount |
