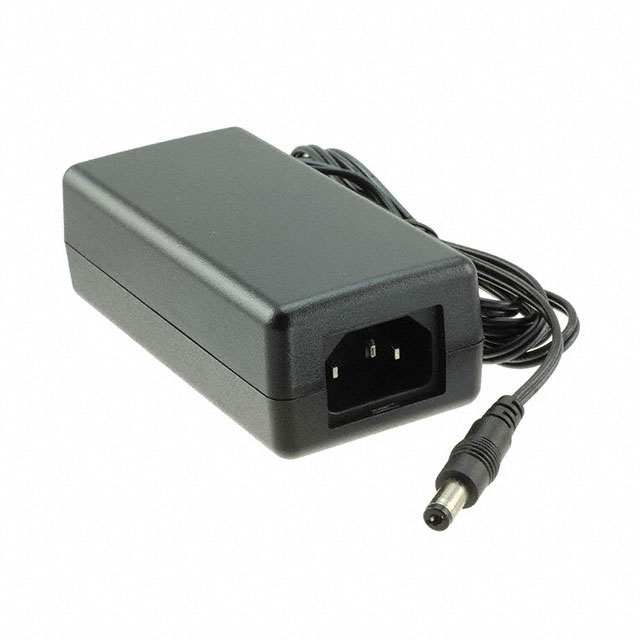

PSAA18U Series

Catalog

AC/DC DESKTOP ADAPTER 24V 18W

Part	Weight	Weight	Region Utilized	Input Type	Applications	Current - Output (Max) [Max]	Efficiency	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [x]	Output Connector [diameter]	Output Connector	Approval Agency	Cord Length	Cord Length	Operating Temperature [Max]	No Load Power Consumption	Polarization	Form	Power (Watts)	Input Connector	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Phihong USA PSAA18U-240L6	0.309 lb	140.16 g	International	Cord (Sold Separately)	ITE (Commercial)	750 mA	CoC Tier 2 Level VI	24 V	264 VAC	90 VAC	10 mm	2.1 mm 5.5 mm	Barrel Plug	CE cULus	1.5 m	59 in	40 °C	100 mW	Positive Center	Desktop (Class I)	18 W	IEC 320-C14	33.5 mm	1.93 in	1.32 in	4.06 in	103 mm	49 mm
Phihong USA PSAA18U-480L6	0.309 lb	140.16 g	International	Cord (Sold Separately)	ITE (Commercial)	380 mA	CoC Tier 1 Level VI	48 V	264 VAC	90 VAC	10 mm	2.1 mm 5.5 mm	Barrel Plug	CE cULus	1.5 m	59 in	40 °C	100 mW	Positive Center	Desktop (Class I)	18 W	IEC 320-C14	33.5 mm	1.93 in	1.32 in	4.06 in	103 mm	49 mm
Phihong USA PSAA18U-150L6	0.309 lb	140.16 g	International	Cord (Sold Separately)	ITE (Commercial)	1.2 A	CoC Tier 2 Level VI	15 V	264 VAC	90 VAC	10 mm	2.1 mm 5.5 mm	Barrel Plug	CE cULus	1.5 m	59 in	40 °C	100 mW	Positive Center	Desktop (Class I)	18 W	IEC 320-C14	33.5 mm	1.93 in	1.32 in	4.06 in	103 mm	49 mm
Phihong USA PSAA18U-120L6	0.309 lb	140.16 g	International	Cord (Sold Separately)	ITE (Commercial)	1.5 A	CoC Tier 2 Level VI	12 V	264 VAC	90 VAC	10 mm	2.1 mm 5.5 mm	Barrel Plug	CE cULus	1.5 m	59 in	40 °C	100 mW	Positive Center	Desktop (Class I)	18 W	IEC 320-C14	33.5 mm	1.93 in	1.32 in	4.06 in	103 mm	49 mm
