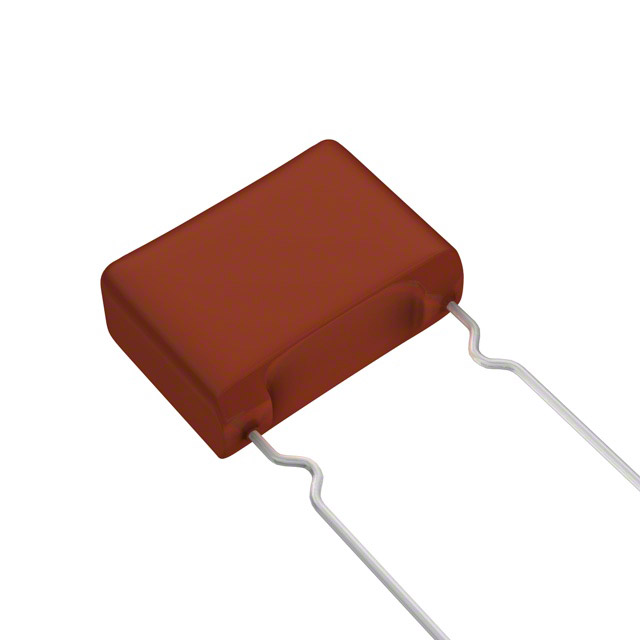

ECW-F2684 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.68UF 5% 250VDC RADIAL

Part	Voltage Rating - DC	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]	Mounting Type	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination	Voltage Rating - AC	Applications	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Lead Spacing [x]	Lead Spacing [x]
Panasonic Electronic Components ECW-F2684JAQ	250 V	0.68 µF	-40 C	105 ░C	Polypropylene (PP) Metallized	Radial	0.807 in	20.5 mm	Through Hole	15 mm	0.591 in	0.713 "	18.1 mm	0.291 "	7.4 mm	PC Pins	125 V	High Frequency Switching	5 %
Panasonic Electronic Components ECW-F2684HAB	250 V	0.68 µF	-40 C	105 ░C	Polypropylene (PP) Metallized	Radial			Through Hole	7.5 mm	0.295 in	0.713 "	18.1 mm	0.291 "	7.4 mm	PC Pins		High Frequency Switching	3 %	18.5 mm	0.728 in
Panasonic Electronic Components ECW-F2684JAB	250 V	0.68 µF	-40 C	105 ░C	Polypropylene (PP) Metallized	Radial			Through Hole	7.5 mm	0.295 in	0.713 "	18.1 mm	0.291 "	7.4 mm	PC Pins		High Frequency Switching	5 %	18.5 mm	0.728 in
Panasonic Electronic Components ECW-F2684JB	250 V	0.68 µF	-25 °C	85 °C	Polypropylene (PP) Metallized	Radial	0.709 in		Through Hole			0.906 in	23 mm	0.374 in	9.5 mm	PC Pins		High Frequency Switching	5 %			18 mm	0.787 in	20 mm
Panasonic Electronic Components ECW-F2684HAQ	250 V	0.68 µF	-40 C	105 ░C	Polypropylene (PP) Metallized	Radial	0.807 in	20.5 mm	Through Hole	15 mm	0.591 in	0.713 "	18.1 mm	0.291 "	7.4 mm	PC Pins		High Frequency Switching	3 %
Panasonic Electronic Components ECW-F2684RHA	250 V	0.68 µF	-40 C	105 ░C	Polypropylene (PP) Metallized	Radial			Through Hole	7.5 mm	0.295 in	0.713 "	18.1 mm	0.291 "	7.4 mm	PC Pins		High Frequency Switching	3 %
