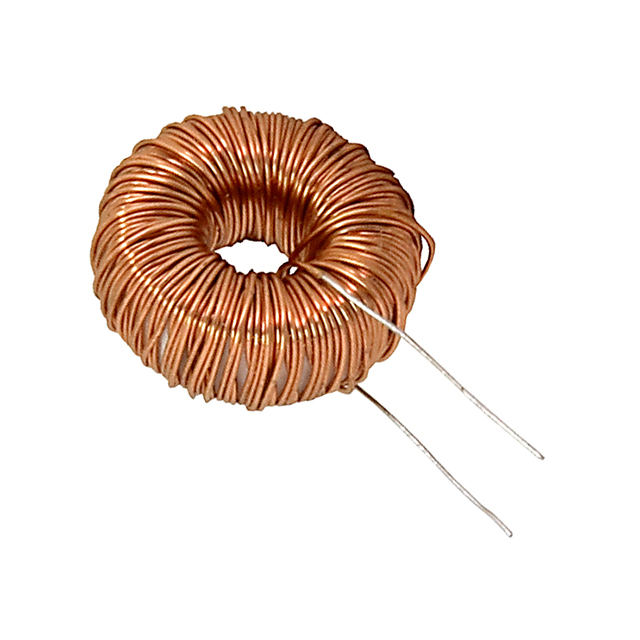

DSO1 Series

Catalog

CMC 3A 2LN TH

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Package / Case	Number of Lines	Current Rating (Max) [Max]	Mounting Type	Voltage Rating - DC	DC Resistance (DCR) (Max)	Approval Agency	Height (Max)	Height (Max) [Max] [z]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Filter Type	Size / Dimension [y]
SCHURTER Inc. DSO1-175-0005	0.591 in	15 mm	0.276 in	7 mm	125 °C	-40 C	20 mOhm	Radial	2	3 A	Through Hole	600 V
SCHURTER Inc. DSO1-40-0003	1.535 in 39 mm		0.551 in 14 mm		125 °C	-40 C	55 mOhm	Radial	2	4 A	Through Hole	600 V
SCHURTER Inc. DSO1-20-0001	0.748 in	19 mm	0.335 in	8.5 mm	125 °C	-40 C	750 mOhm	Radial	2	630 mA	Through Hole	600 V
SCHURTER Inc. DSO1-175-0002	0.591 in	15 mm	0.276 in	7 mm	125 °C	-40 C		Radial	2	630 mA	Through Hole	600 V	550 mOhm
SCHURTER Inc. DSO1-30-0004	1.024 in	26 mm	0.433 in	11 mm	125 °C	-40 C		Radial	2	4 A	Through Hole	600 V	40 mOhm
SCHURTER Inc. DSO1-175-0003	0.591 in	15 mm	0.276 in	7 mm	125 °C	-40 C	200 mOhm	Radial	2	1 A	Through Hole	600 V
SCHURTER Inc. DSO1-30-0002					125 °C	-40 C	140 mOhm	No Base Vertical	2	2 A	Through Hole	600 V		IEC UL	26 mm	1.024 in	2 Lead	1.024 in	26 mm	Power Line
SCHURTER Inc. DSO1-40-0004	1.535 in 39 mm		0.551 in 14 mm		125 °C	-40 C	25 mOhm	Radial	2	6 A	Through Hole	600 V
SCHURTER Inc. DSO1-48-0001	1.693 in	43 mm	0.709 in		125 °C	-40 C		Radial	2	3.15 A	Through Hole	600 V	180 mOhm								18 mm
SCHURTER Inc. DSO1-175-0001	0.591 in	15 mm	0.276 in	7 mm	125 °C	-40 C	800 mOhm	Radial	2	500 mA	Through Hole	600 V
