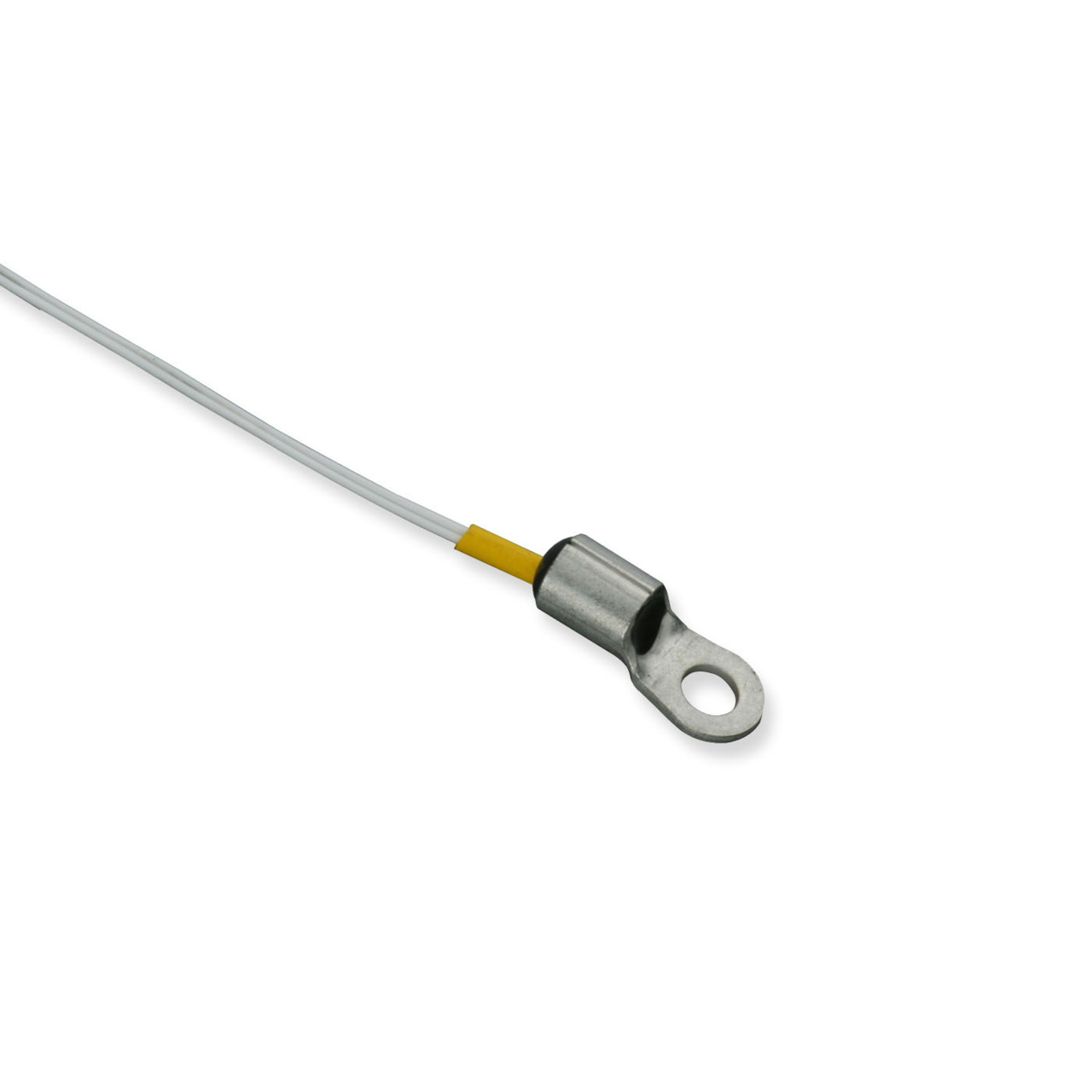

USUR1000-302H Series

NTC THERMISTOR 3K OHM 3% LUG

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

NTC THERMISTOR 3K OHM 3% LUG

Part	B0/50	Length - Lead Wire	Length - Lead Wire	Power - Max [Max]	Mounting Type	Resistance Tolerance	Package / Case
Littelfuse/Commercial Vehicle Products USUR1000-302H-06	3892 K	3 in	76.2 mm	20 mW	Free Hanging	3 %	Ring Lug

Catalog

NTC THERMISTOR 3K OHM 3% LUG

Key Features

• Insulated lead wire rated for 300V minimum

• User selectable lead length

• Ring tongue mounting hole diameter = 0.145" nominal

• Ring tongue mounting hole stud size = #6

Description

Littelfuse UL Recognized ring lug thermistor probe assemblies are manufacturing using super stable NTC chips which are potted into a ring lug housing with thermally conductive epoxy. Designed for rapid thermal response and excellent long-term stability, these devices can be used in a wide range of surface temperature sensing applications.
