PPPC192 Series

Catalog

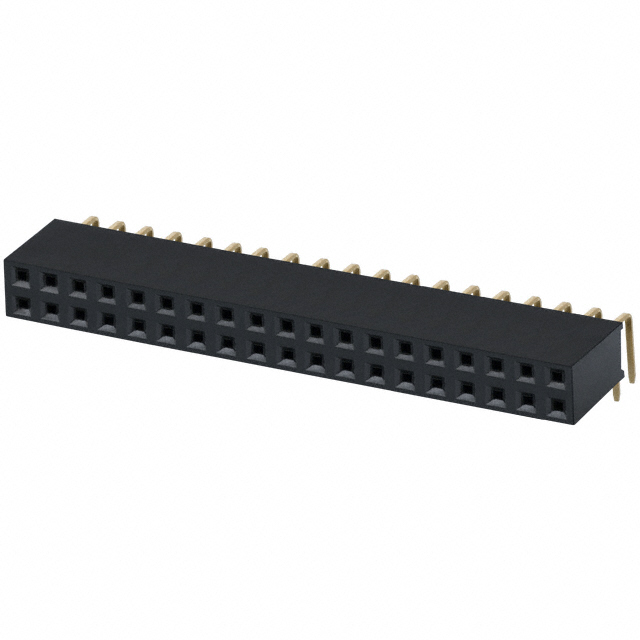

CONN HDR 38POS 0.1 GOLD PCB R/A

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Insulation Material	Insulation Color	Number of Positions	Voltage Rating	Material Flammability Rating	Mounting Type	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Number of Positions Loaded	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Termination	Fastening Type	Pitch - Mating	Pitch - Mating
Sullins Connector Solutions PPPC192LJBN	Square	Phosphor Bronze	Flash	Polyester	Black	38	250 V	UL94 V-0	Right Angle Through Hole	0.2 in	5.08 mm	2	All	Female Socket	-40 C	105 ░C	Header	0.1 in	2.54 mm	Gold	3 A	0.124 in	3.15 mm	Gold	Flash	Solder	Push-Pull	0.1 "	2.54 mm
