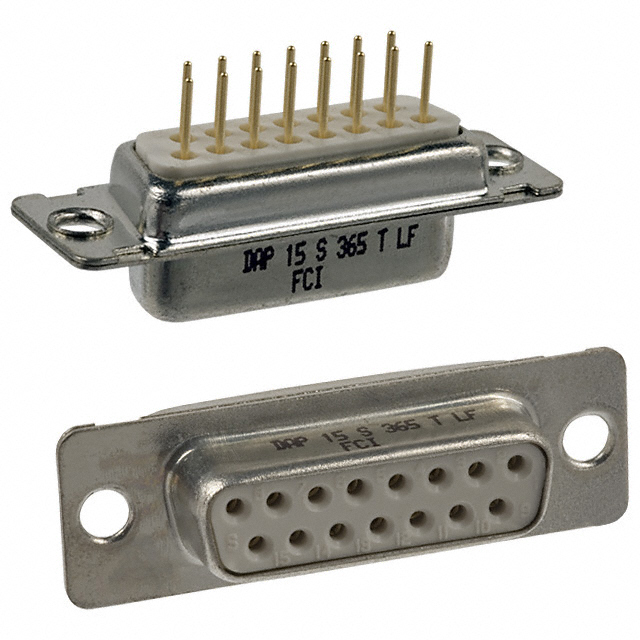

DAP15S365 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN D-SUB RCPT 15POS VERT SLDR
| Part | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Material Flammability Rating | Flange Feature | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Dielectric Material | Voltage Rating | Contact Material | Number of Positions | Connector Type | Termination | Connector Style | Number of Rows | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Signal | -55 °C | 125 °C | 2 | UL94 V-0 | Housing/Shell (Unthreaded) | Through Hole | 0.76 Ám | 30 Áin | 7.5 A | Thermoplastic | 1000 VDC | Copper Alloy | 15 | Receptacle Female Sockets | Solder | D-Sub | 2 | Gold GXT™ |
